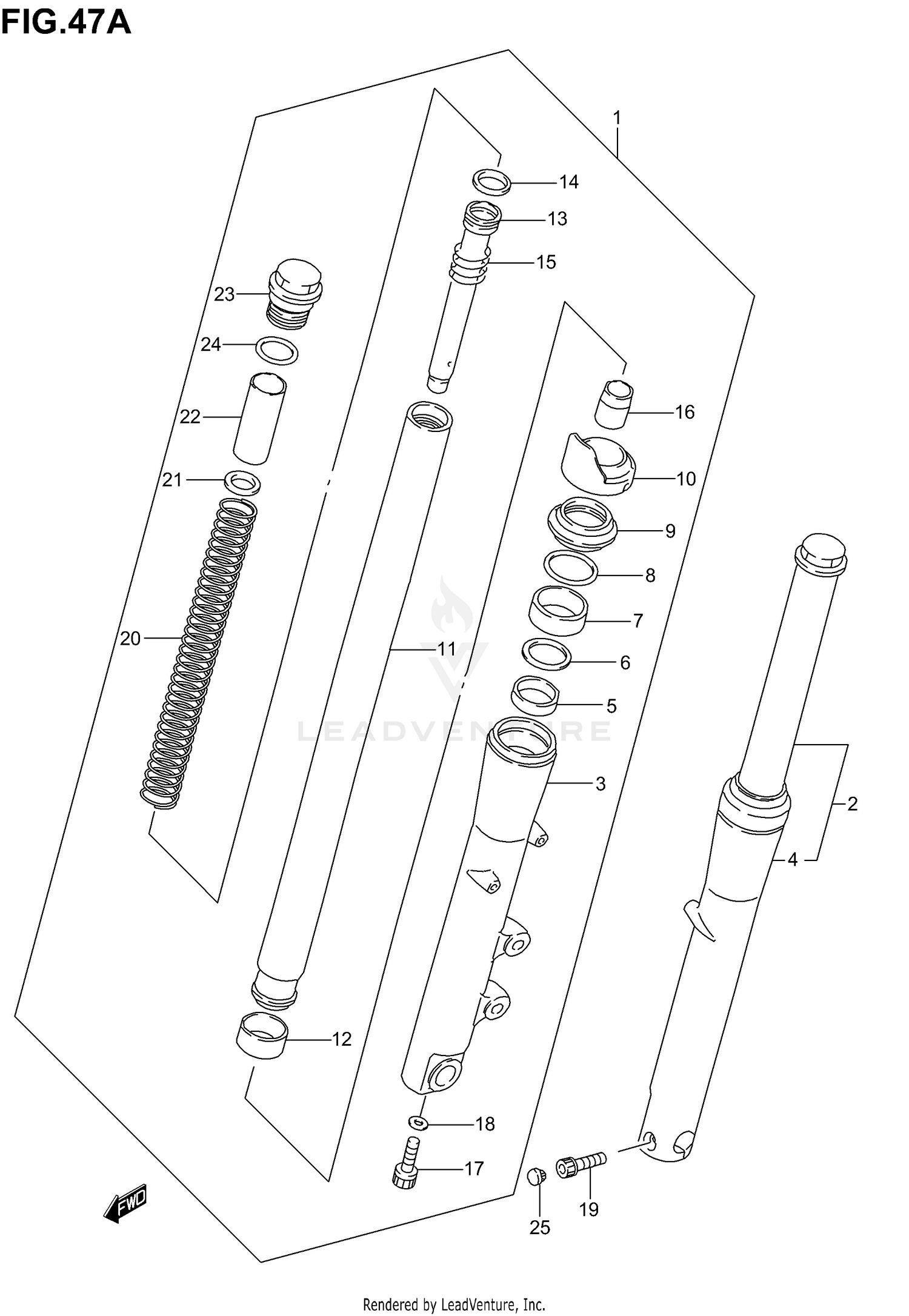

Front Damper (model K5) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER ASSY, FRONT FORK RH
51103-39AD0
|
$1,087.65 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER ASSY, FRONT FORK LH
51104-39AD0
|
$757.96 | ||
|
Unavailable |
|||
|
#3
TUBE, OUTER RH
51131-39A70
|
$342.92 | ||
|
Unavailable |
|||
|
#4
TUBE, OUTER LH
51141-39A70
|
$342.92 | ||
|
Unavailable |
|||
|
#5
BUSH, GUIDE
51152-39A40
|
$27.56 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER, SEAL
51168-39A00
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
51153-19D00
|
$29.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING, STOPPER
51156-32B00
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#9
DUST SEAL
51173-19D00
|
$33.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, UPPER, R
51530-38B70
|
$86.69 | ||
|
Unavailable |
|||
|
#10
COVER, UPPER, L
51540-38B70
|
$88.46 | ||
|
Unavailable |
|||
|
#11
TUBE, INNER
51110-39A41
|
$407.23 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUSH, SLIDE
51121-39A40
|
$29.07 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIPE, SEAT
51146-39A00
|
$77.84 | ||
|
Unavailable |
|||
|
#14
RING, PISTON
51196-32B00
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, REBOUND
51177-32B00
|
$6.75 | ||
|
Unavailable |
|||
|
#16
PIECE, OIL LOCK
51195-38B00
|
$34.12 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
51147-48130
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
.GASKET (8.2X13X1.5)
51148-36011
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING
51171-39A00
|
$66.48 | ||
|
Available to order. Add to View Price |
|||
|
#20
JOINT, SPRING
51172-32B00
|
$7.22 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPACER, SPRING
51176-39A00
|
$11.71 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, INNER TUBE
51351-39A00
|
$80.33 | ||
|
Available to order. Add to View Price |
|||
|
#23
O RING
51117-39A00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, LH
07130-08357
|
$4.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
CAP
09250-06009
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
