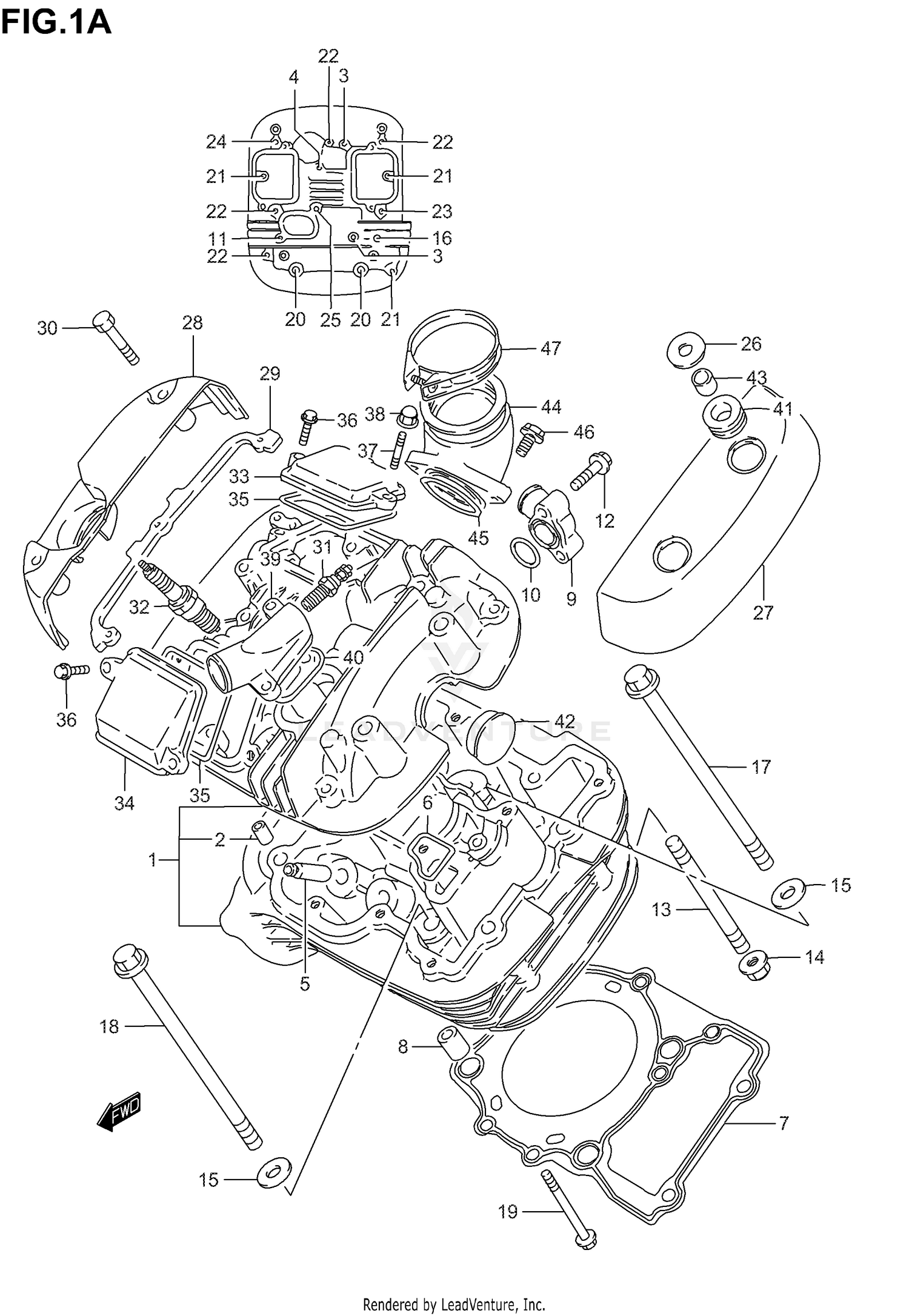

Cylinder Head (front) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER FRONT
11101-39A20
|
$791.35 | ||
|
Unavailable |
|||
|
#1
HEAD ASSY, CYLINDER FRONT
11101-39A50
|
$807.50 | ||
|
Unavailable |
|||
|
#2
PIN
09206-11004
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT,6X50 (6X50)
09103-06101
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X55)
09103-06102
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, VALVE (OS 0.3)
11115-38A71
Superseded by 11115-41F70
|
$45.98 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET,HEAD COVER
11123-38A00
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, CYLINDER HEAD FRONT
11141-45C00
|
$75.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN
04211-13189
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
UNION, CYLINDER HEAD WATER
11169-45C10
|
$29.92 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING (D:2.4,ID:17.8)
09280-18004
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
01550-06203
Superseded by 01550-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01547-06253
Superseded by 01547-0625B
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
|
#13
STUD BOLT (L:40)
09108-08144
|
$4.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
.NUT
08316-10083
Superseded by 08316-1008B
|
$3.31 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
WASHER
09160-10039
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (8X140)
09103-08040
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (10X155)
09103-10133
|
$10.32 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT (10X165)
09103-10134
|
$10.32 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
01550-06403
Superseded by 01550-0640A
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT (8X245)
09103-08180
|
$13.84 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
01550-06253
Superseded by 01550-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
01550-06303
Superseded by 01550-0630A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
07120-06303
Superseded by 07120-0630B
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
01550-06403
Superseded by 01550-0640A
|
$3.05 | ||
|
Unavailable |
|||
|
#25
BOLT (6X55)
09103-06102
|
$2.65 | ||
|
Unavailable |
|||
|
#26
WASHER (8.5X24X1.6)
09160-08130
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#27
CAP, HEAD COVER LH
11171-38A02
|
$99.55 | ||
|
Available to order. Add to View Price |
|||
|
#28
CAP, HEAD COVER RH
11172-38A03
|
$69.37 | ||
|
Unavailable |
|||
|
#29
CUSHION, HEAD COVER CAP
11272-38A00
|
$12.51 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
01244-06407
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#31
SENDING UNIT, WATER TEMP
34850-21E00
|
$93.09 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPARK PLUG (NGK,DPR8EA-9)
09482-00334
|
$3.75 | ||
|
Unavailable |
|||
|
#32
SPARK PLUG (ND,X24EPR-U9)
09482-00335
|
$6.86 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPARK PLUG (NGK,DPR7EA-9)
09482-00354
|
$4.22 | ||
|
Unavailable |
|||
|
#32
SPARK PLUG (NGK,DPR7EA-9)
09482-00355
Superseded by 09482-00354
|
$4.22 | ||
|
Unavailable |
|||
|
#32
SPARK PLUG (NGK,DPR9EA-9)
09482-00330
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPARK PLUG (ND,X27EPR-U9)
09482-00331
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#33
CAP, INSPECTION IN
11175-38A11
|
$26.04 | ||
|
Available to order. Add to View Price |
|||
|
#34
CAP, INSPECTION EX
11176-38A11
|
$26.04 | ||
|
Available to order. Add to View Price |
|||
|
#35
GASKET,INSPECTION CAP
11177-38A00
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#36
.BOLT
01547-06203
Superseded by 01547-0620B
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
|
#37
STUD BOLT
09108-06102
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT
08313-20063
Superseded by 08313-2006A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#39
UNION, WATER OUTLET
11181-38A02
|
$32.91 | ||
|
Unavailable |
|||
|
#40
GASKET, WATER UNION
11182-38A00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#41
CUSHION
09320-13015
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#42
PLUG, CYLINDER HEAD
09241-30004
|
$8.33 | ||
|
Available to order. Add to View Price |
|||
|
#43
BUSH
09301-08007
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#44
PIPE ASSY,INTAK
13101-38E00
Superseded by 13101-38E01
|
$95.91 | ||
|
Available to order. Add to View Price |
|||
|
#45
O-RING (D:2.4,ID:39.7)
09280-40010
Superseded by 09280-40020
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#46
SCREW
02122-06203
Superseded by 02122-0620A
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#47
CLAMP, INTAKE PIPE
09402-52501
|
$13.93 | ||
|
Available to order. Add to View Price |
|||
