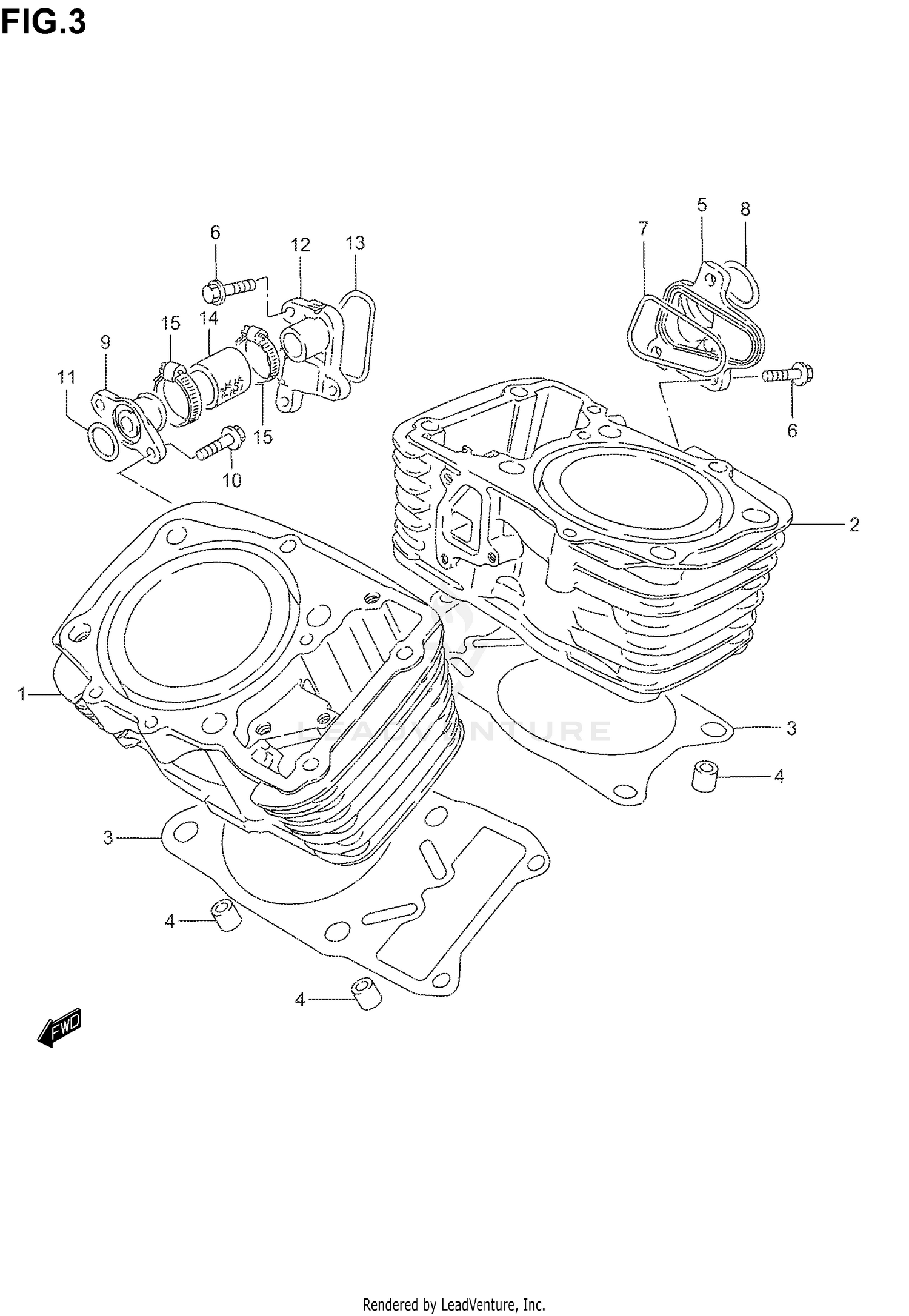

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER, FRONT
11210-39A20-0F0
|
$553.98 | ||
|
Unavailable |
|||
|
#1
CYLINDER, FRONT
11210-39A50-0F0
|
$565.25 | ||
|
Unavailable |
|||
|
#2
CYLINDER, REAR
11220-39A20-0F0
|
$775.83 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CYLINDER
11241-45C20
|
$24.21 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN
04211-13189
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#5
CONNECTOR, WATER INLET
11237-39A20
Superseded by 11237-41F00
|
$50.21 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
01547-06207
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
O RING,INLET WATER CHAMBER
11247-38A00
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
O RING (D:2.3,ID:24.4)
09280-24007
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#9
UNION, WATER INLET
11235-45C10
Superseded by 11235-41F00
|
$28.81 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01547-06167
|
$2.06 | ||
|
Available to order. Add to View Price |
|||
|
#11
O RING (D:2.4,ID:15.8)
09280-16005
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
CHAMBER, WATER OUTLET
11236-45C10
|
$27.68 | ||
|
Available to order. Add to View Price |
|||
|
#13
O RING
11246-38A00
|
$6.01 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE, CYLINDER JOINT
17851-01A00
|
$24.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
09402-28511
|
$8.64 | ||
|
Available to order. Add to View Price |
|||
