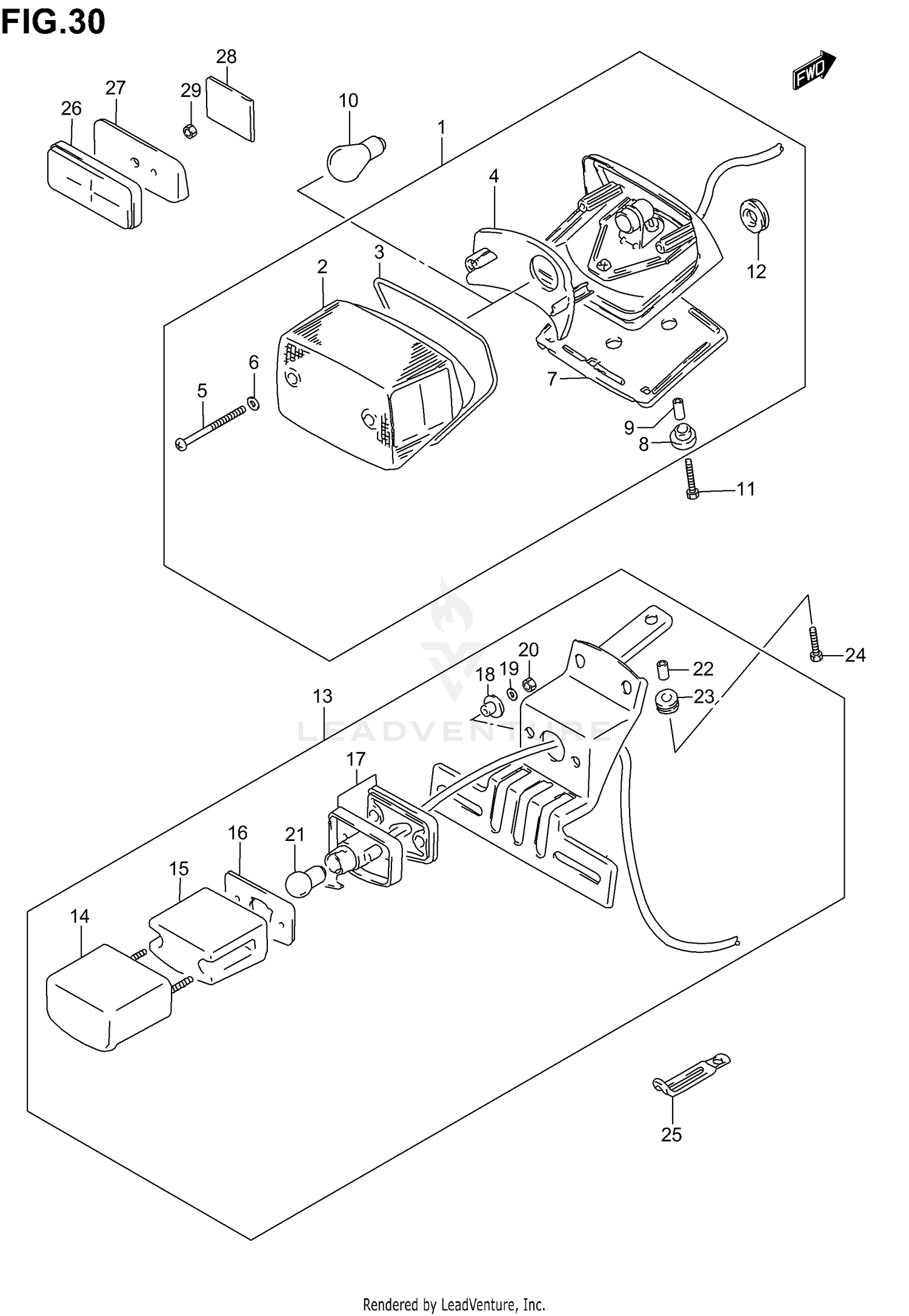

Rear Combination Lamp (model K1/k2/k3/k4) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, REAR COMBINATION
35710-39A00-999
|
$114.31 | ||
|
Available to order. Add to View Price |
|||
|
#2
LENS
35712-38A30
|
$72.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
35713-38A00
Superseded by 35713-31D00
|
$10.63 | ||
|
Available to order. Add to View Price |
|||
|
#4
REFLECTOR
35714-38A00
|
$24.23 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
35723-44130
|
$2.51 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
GASKET
35627-43010
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION
35765-38A00
|
$14.24 | ||
|
Unavailable |
|||
|
#8
CUSHION
35764-26470
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER
35766-37190
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#10
BULB (12V,21/5W)
09471-12083
Superseded by 09471-12128
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (6X25)
09116-06093
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET
09308-09004
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
LAMP ASSY, LICENSE
35910-38A33
|
$147.41 | ||
|
Unavailable |
|||
|
#14
COVER, LICENSE LAMP
35917-38A20
|
$102.41 | ||
|
Available to order. Add to View Price |
|||
|
#15
LENS
35912-38A30
|
$23.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET
35913-38A30
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOUSING, LICENSE LAMP
35915-38A31
|
$56.57 | ||
|
Unavailable |
|||
|
#18
SPACER
35766-38A30
|
$1.51 | ||
|
Unavailable |
|||
|
#19
LOCK WASHER
08321-01043
Superseded by 08321-0104A
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
08310-00047
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#21
BULB (12V,8W)
09471-12141
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPACER
35766-38A00
|
$2.30 | ||
|
Unavailable |
|||
|
#23
CUSHION
35765-38A30
|
$3.09 | ||
|
Unavailable |
|||
|
#24
BOLT (6X20)
09116-06010
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#26
REFLEX REFLECTOR, REAR
35970-24D60
|
$29.33 | ||
|
Available to order. Add to View Price |
|||
|
#26
REFLEX REFLECTOR, REAR
35970-44A00
|
$17.98 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPACER
35977-38B30
|
$3.87 | ||
|
Unavailable |
|||
|
#28
COVER
68262-38A00
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#29
.NUT
08310-00053
Superseded by 08310-0005A
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#29
.NUT
08310-00053
Superseded by 08310-0005A
|
$2.30 | ||
|
Unavailable |
|||
