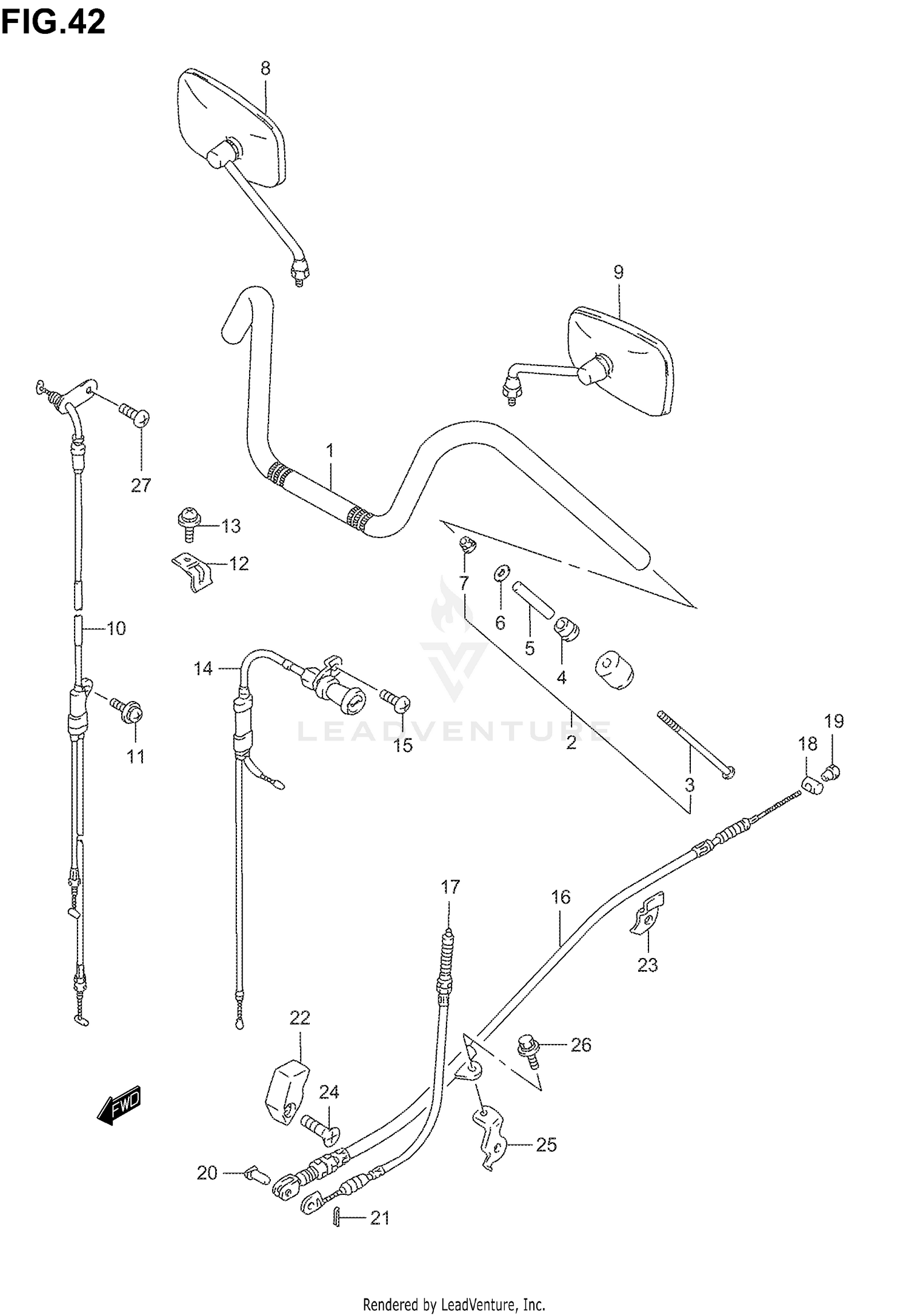

Handlebar (model K1/k2/k3/k4) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
56111-38E00
|
$224.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
BALANCER SET, HANDLEBAR
56200-48831
|
$99.48 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW
09127-06019
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
EXPANDER
56272-26D01
|
$9.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER
56276-17D00
|
$6.74 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
09160-06121
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
09159-06024
|
$2.57 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
MIRROR ASSY,REA
56500-38A41
Superseded by 56500-38A42
|
$96.28 | ||
|
Available to order. Add to View Price |
|||
|
#9
MIRROR ASSY REA
56600-38A41
Superseded by 56600-38A42
|
$85.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
CABLE ASSY, THROTTLE
58300-39E00
|
$78.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
02112-75123
Superseded by 02112-7512A
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP, THROTTLE CABLE
58621-38A00
|
$7.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
02112-75123
Superseded by 02112-7512A
|
$3.05 | ||
|
Unavailable |
|||
|
#14
CABLE ASSY, STARTER
58400-38A14
|
$87.13 | ||
|
Available to order. Add to View Price |
|||
|
#15
STOPPER, CL RLSE CAM SHAFT
02142-06103
Superseded by 02142-0610A
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
CABLE, REAR BRAKE
58510-38A01
|
$161.17 | ||
|
Available to order. Add to View Price |
|||
|
#17
CABLE, STOP LAMP SWITCH
58830-38A00
|
$39.96 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, REAR
09209-13018
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#19
.NUT
09150-06014
Superseded by 09150-06010
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
PIN, FRONT
09200-05001
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#21
.COTTER PIN
04111-20158
Superseded by 04111-2015A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#22
GUIDE, REAR BRAKE CABLE
58631-38A00
|
$5.85 | ||
|
Unavailable |
|||
|
#23
CLAMP, REAR BRAKE CABLE
58721-38A00
|
$5.03 | ||
|
Unavailable |
|||
|
#24
SCREW
02122-06203
Superseded by 02122-0620A
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#25
BRACKET, REAR BRAKE CABLE
43275-38A00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT
01580-06163
Superseded by 01580-0616A
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW
02142-05087
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
