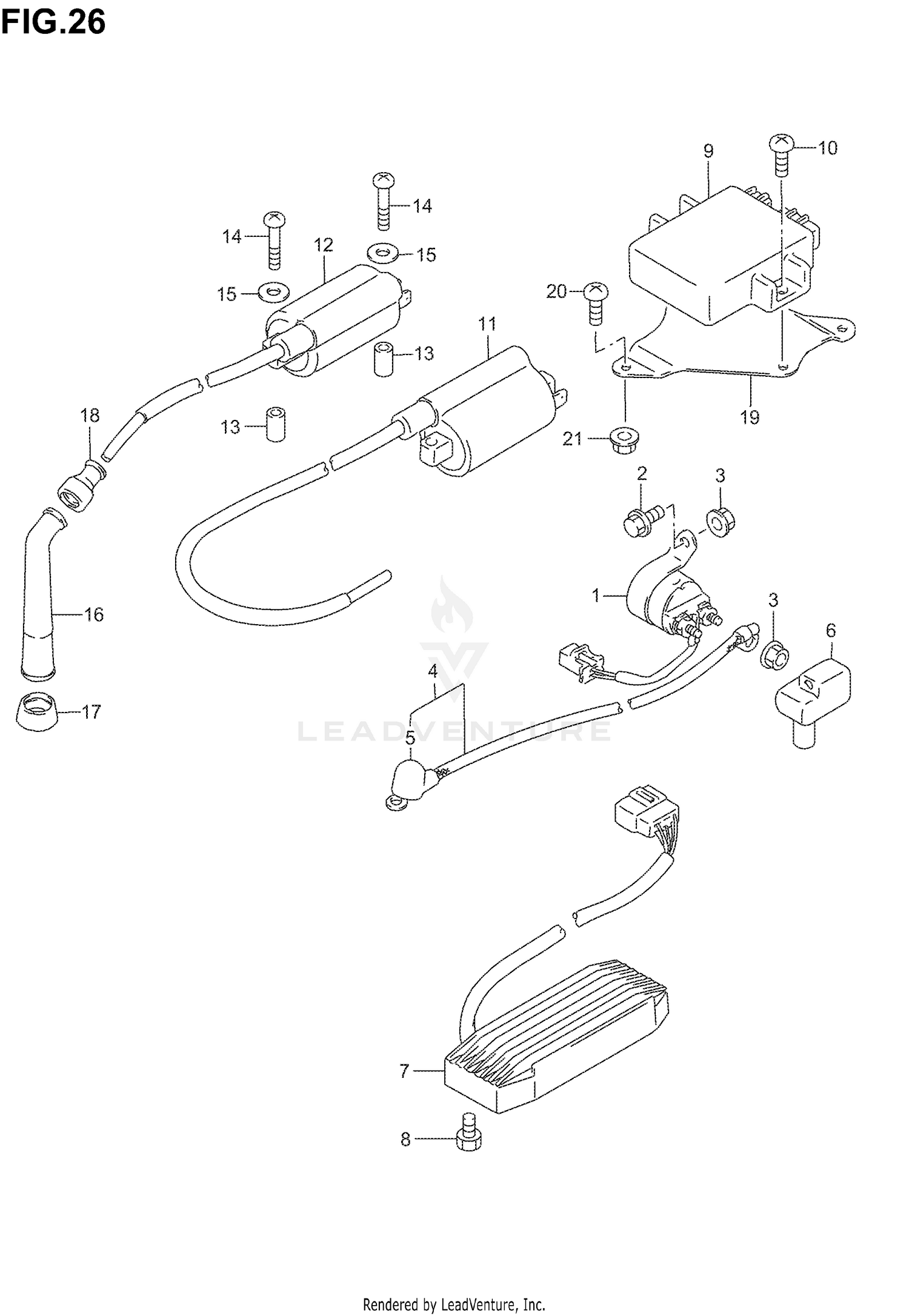

Electrical (model K1/k2/k3/k4) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY,STARTING MOTOR
31800-15501
|
$126.24 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
01550-06103
Superseded by 01550-0610A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
08361-35068
Superseded by 08361-3506A
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#4
LEAD WIRE, STARTING MOTOR
33850-38A00
|
$27.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
.CAP, STARTER MOTOR
31861-48B10
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, STARTER RELAY
31861-38A00
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#7
RECTIFIER ASSY
32800-12E01
|
$356.61 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
01500-06103
Superseded by 01500-0610B
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
IGNITER UNIT
32900-38A31
|
$1,144.90 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
02142-06123
Superseded by 02142-0612A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
COIL, IGNITION (CORD L:300)
33410-38A11
|
$175.37 | ||
|
Available to order. Add to View Price |
|||
|
#12
COIL, IGNITION (CORD L:520)
33420-38A11
|
$175.37 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER (6.4X10X19)
09180-06144
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW (5X38)
09125-05053
|
$0.74 | ||
|
Unavailable |
|||
|
#15
WASHER
08322-01053
Superseded by 08322-0105A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
08322-01053
Superseded by 08322-0105A
|
$2.29 | ||
|
Unavailable |
|||
|
#16
CAP, SPARK PLUG
33510-11410
|
$33.50 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL, SPARK PLUG
33541-24510
Superseded by 33541-47D00
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL,HIGH TENSION CORD
33542-38B00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, IGNITER FITTING
32910-38A10
|
$7.00 | ||
|
Unavailable |
|||
|
#20
SCREW
02112-36123
Superseded by 02112-3612A
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
08316-20063
Superseded by 08316-2006A
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
