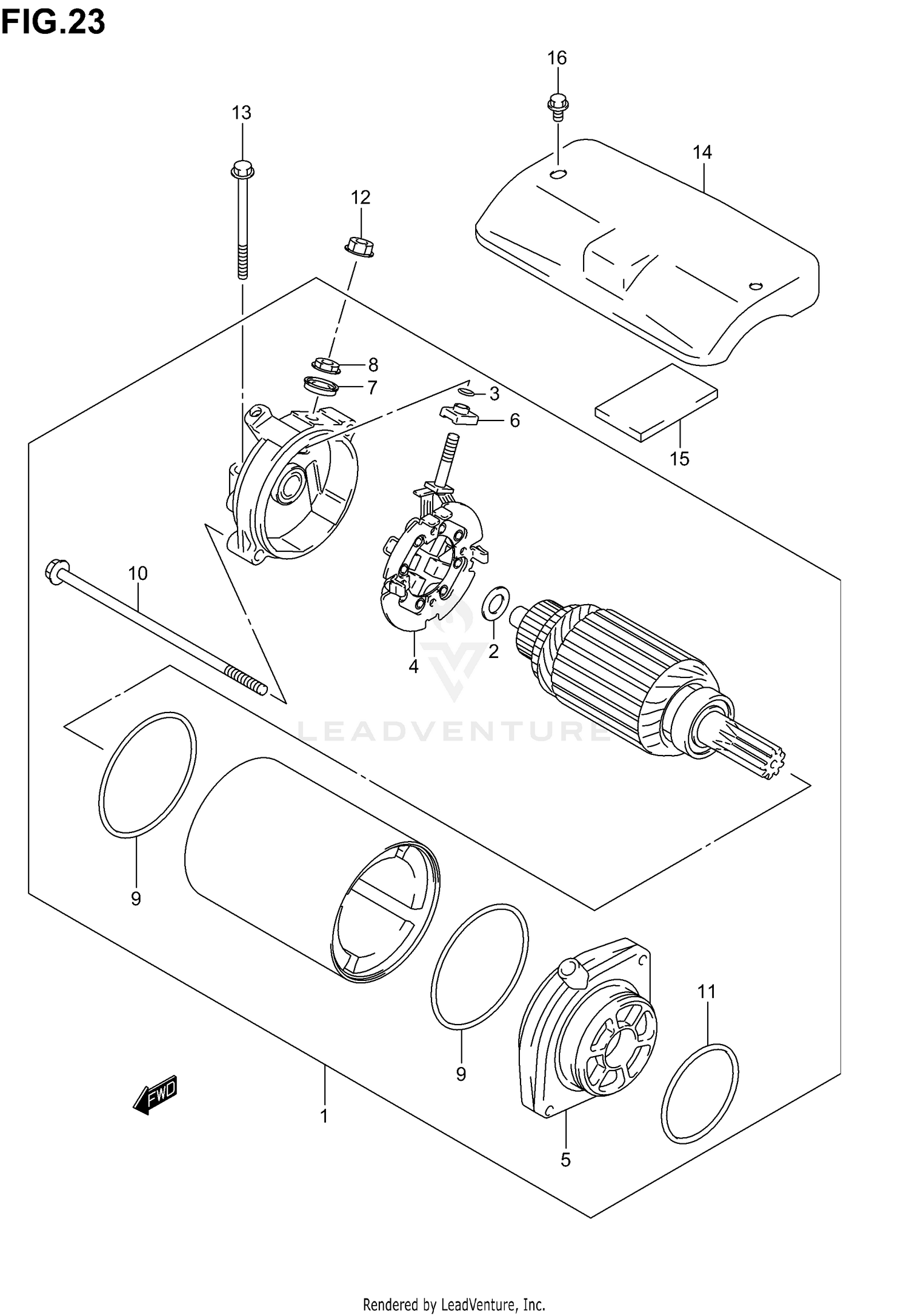

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MOTOR ASSY,STARTING
31100-45C01
Superseded by 31100-45C02
|
$598.97 | ||
|
Unavailable |
|||
|
#2
WASHER
31170-43400
|
$5.03 | ||
|
Available to order. Add to View Price |
|||
|
#3
.O-RING
31143-38300
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRUSH HOLDER SET (-)
31132-45C00
|
$77.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET SET
31150-38A00
|
$79.38 | ||
|
Unavailable |
|||
|
#6
BUSHING
31172-38300
|
$7.08 | ||
|
Available to order. Add to View Price |
|||
|
#7
BUSHING
31173-88C00
|
$10.01 | ||
|
Available to order. Add to View Price |
|||
|
#8
.NUT
08310-00067
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
.O-RING
31264-44110
|
$12.82 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
31281-24B10
Superseded by 31281-31D00
|
$9.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
.O RING
31156-38A00
|
$13.47 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
08361-35068
Superseded by 08361-3506A
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01547-06603
Superseded by 01547-0660B
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, STARTING MOTOR
31210-38A01
|
$22.57 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER, METER COVER
31212-38A10
|
$6.03 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01547-05087
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
