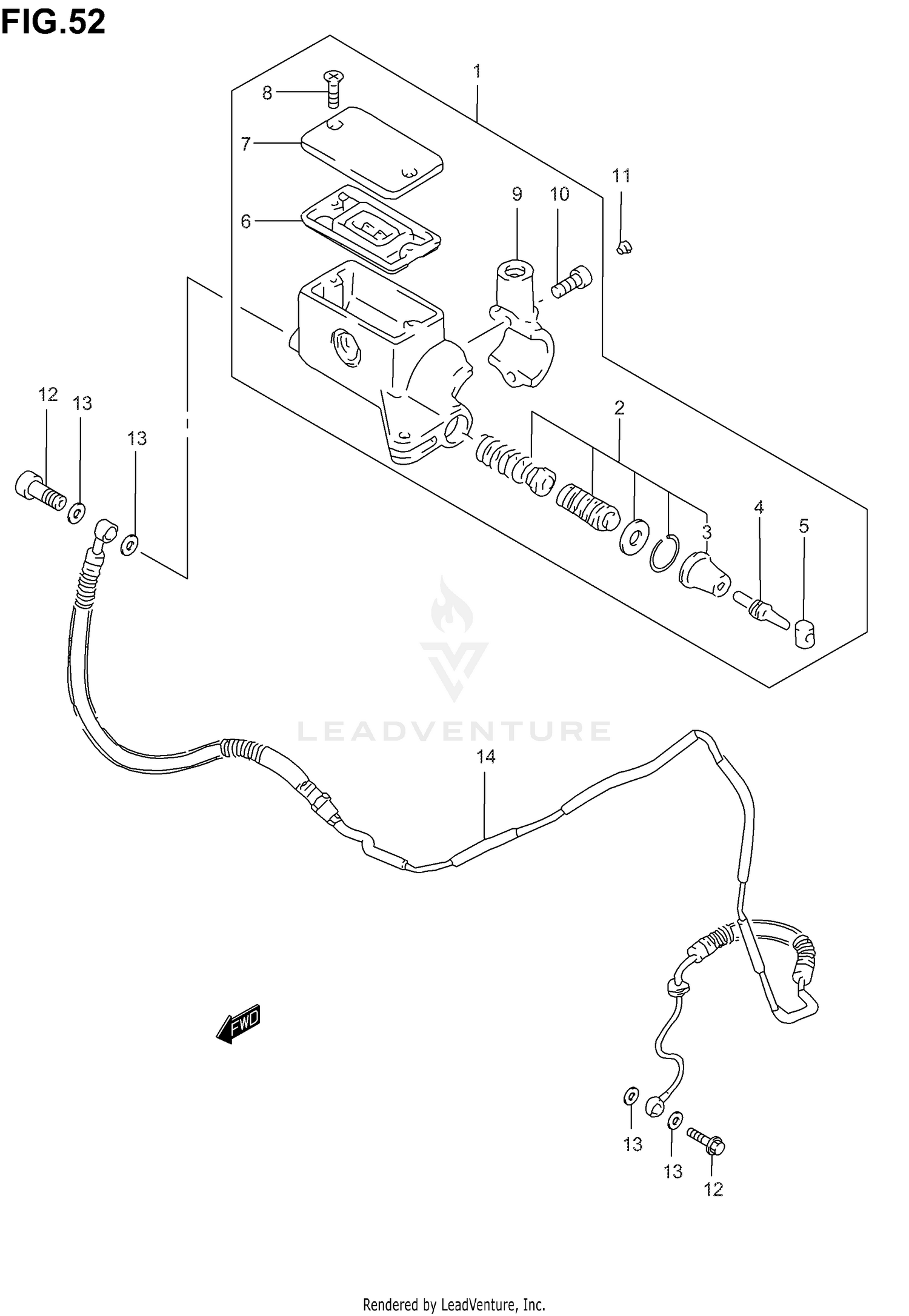

Clutch Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY,C
59800-39A20
Superseded by 59800-39A21
|
$477.11 | ||
|
Available to order. Add to View Price |
|||
|
#1
CYLINDER ASSY,C
59800-39A40
Superseded by 59800-39A41
|
$463.50 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON & CUP SET
59800-08810
|
$50.97 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BOOT
59666-44300
|
$7.48 | ||
|
Available to order. Add to View Price |
|||
|
#4
PUSH ROD
59871-38A00
Superseded by 59871-32F00
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH
59892-08A00
|
$6.52 | ||
|
Available to order. Add to View Price |
|||
|
#6
DIAPHRAGM
59667-49460
|
$12.63 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP
59669-24B00
|
$69.47 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP
59669-10F00
|
$80.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
02122-04127
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOLDER
59671-38A00
|
$47.90 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
07130-06207
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP
09250-05008
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
UNION (10X1.00X22)
09360-10039
Superseded by 09360-10061
|
$8.19 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER (10X15X1.5)
09161-10009
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE
59900-38A60
Superseded by 59900-38A61
|
$320.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE
59900-38A70
Superseded by 59900-38A72
|
$292.89 | ||
|
Unavailable |
|||
