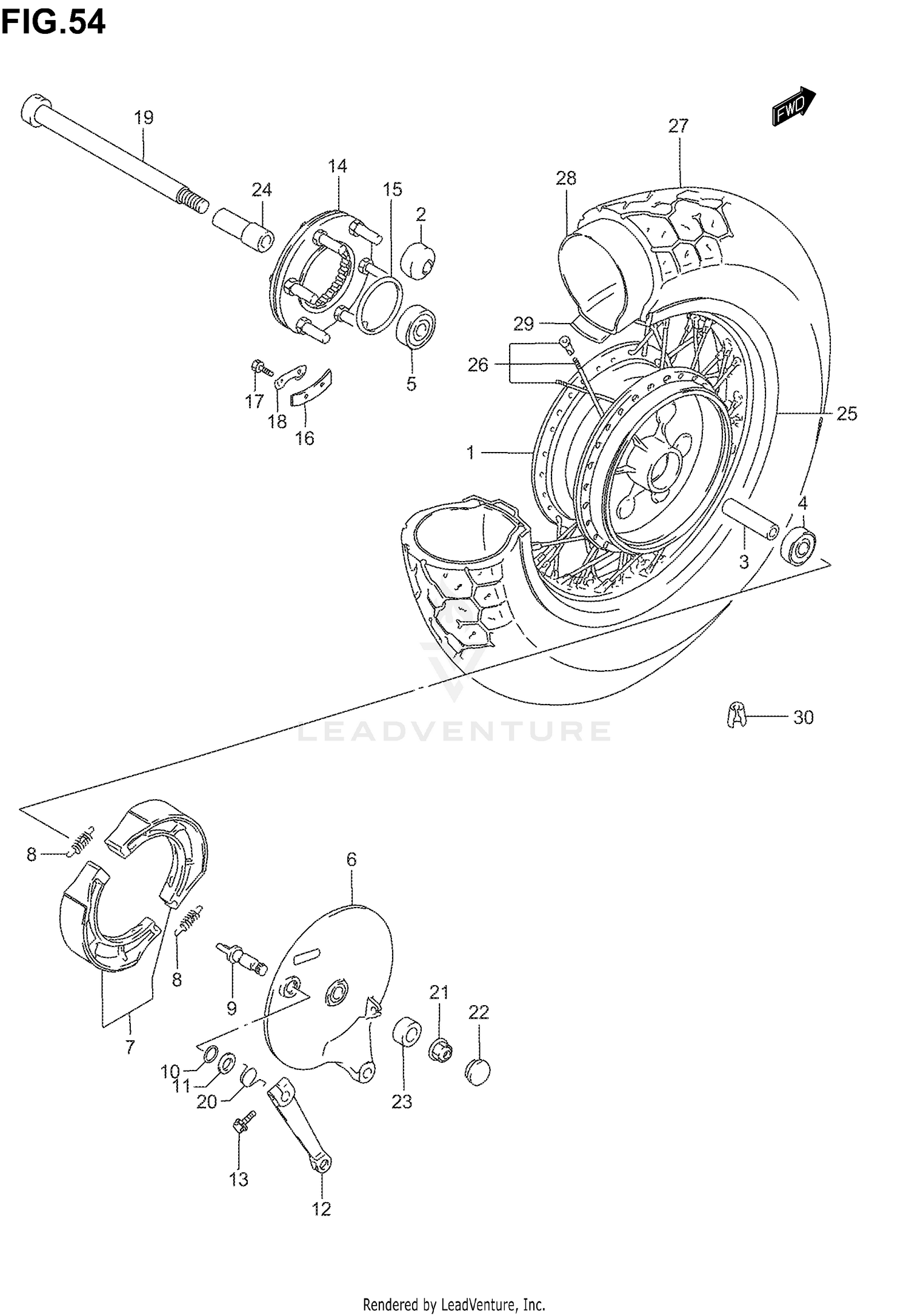

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB SET, REAR WHEEL
64100-07861
|
$446.50 | ||
|
Unavailable |
|||
|
#2
BUSHING (12X41X34)
09319-12019
|
$16.76 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER, REAR HUB (17.5X25X80)
09180-17091
|
$15.54 | ||
|
Unavailable |
|||
|
#4
BEARING
08133-62037
Superseded by 08133-6203B
|
$22.08 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING, LH
08143-63037
|
$28.46 | ||
|
Available to order. Add to View Price |
|||
|
#6
PANEL, REAR BRAKE ANCHOR
64210-38A21
|
$301.14 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHOE SET, BRAKE
64400-38810
|
$60.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, SHOE
55420-30000
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAM, BRAKE
64441-38A20
|
$34.72 | ||
|
Available to order. Add to View Price |
|||
|
#10
O RING (D:1.9,ID:14.5)
09280-15003
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
09160-15048
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER, BRAKE CAM
64451-38A01
|
$64.67 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01570-06257
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#14
JOINT, HUB DRIVEN
64680-45113
|
$306.48 | ||
|
Available to order. Add to View Price |
|||
|
#15
O RING (D:2.1,ID:65)
09280-65003
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, THRUST
64677-45110
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (6X16)
09119-06049
|
$1.91 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
09169-06030
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#19
AXLE, REAR (L:302)
64711-38A11
|
$81.17 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING, CAM
09448-33006
|
$10.04 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
08319-31148
Superseded by 08319-3114A
|
$12.36 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP, RH
64791-38B00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPACER, RH
64751-46D00
|
$26.50 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPACER,REAR AXLE LH
64772-34201
|
$26.04 | ||
|
Available to order. Add to View Price |
|||
|
#25
RIM, WHEEL (MT3.00X15 M/C)
65311-38A02
|
$352.66 | ||
|
Unavailable |
|||
|
#26
SPOKE SET, REAR WHEEL
65320-38A02
|
$240.48 | ||
|
Available to order. Add to View Price |
|||
|
#27
TIRE, REAR (140/90-15 M/C 70H) (BRIDGESTONE)
65100-38A41
|
$170.23 | ||
|
Unavailable |
|||
|
#27
TIRE, REAR (140/90-15 M/C 70H) (BRIDGESTONE)
65110-38A70
|
$170.23 | ||
|
Unavailable |
|||
|
#28
TUBE, WHEEL INNER
65200-38A00
Superseded by 65200-38A70
|
$68.65 | ||
|
Available to order. Add to View Price |
|||
|
#28
TUBE, WHEEL INNER
65200-38A70
|
$68.65 | ||
|
Unavailable |
|||
|
#29
PROTECTOR, INNER TUBE
65261-38A00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#29
PROTECTOR,WHEEL
65261-38A70
Superseded by 65261-38A71
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#30
BALANCER, WHEEL (20G)
55412-38A00
Superseded by 55412-41F00
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#30
BALANCER,WHEEL (30G)
55413-38A00
Superseded by 55413-41F00
|
$9.95 | ||
|
Available to order. Add to View Price |
|||
|
#30
BALANCER, WHEEL NO.2
55412-41F00
|
$8.13 | ||
|
Unavailable |
|||
|
#30
BALANCER,WHEEL (30G)
55413-41F00
|
$9.95 | ||
|
Unavailable |
|||
