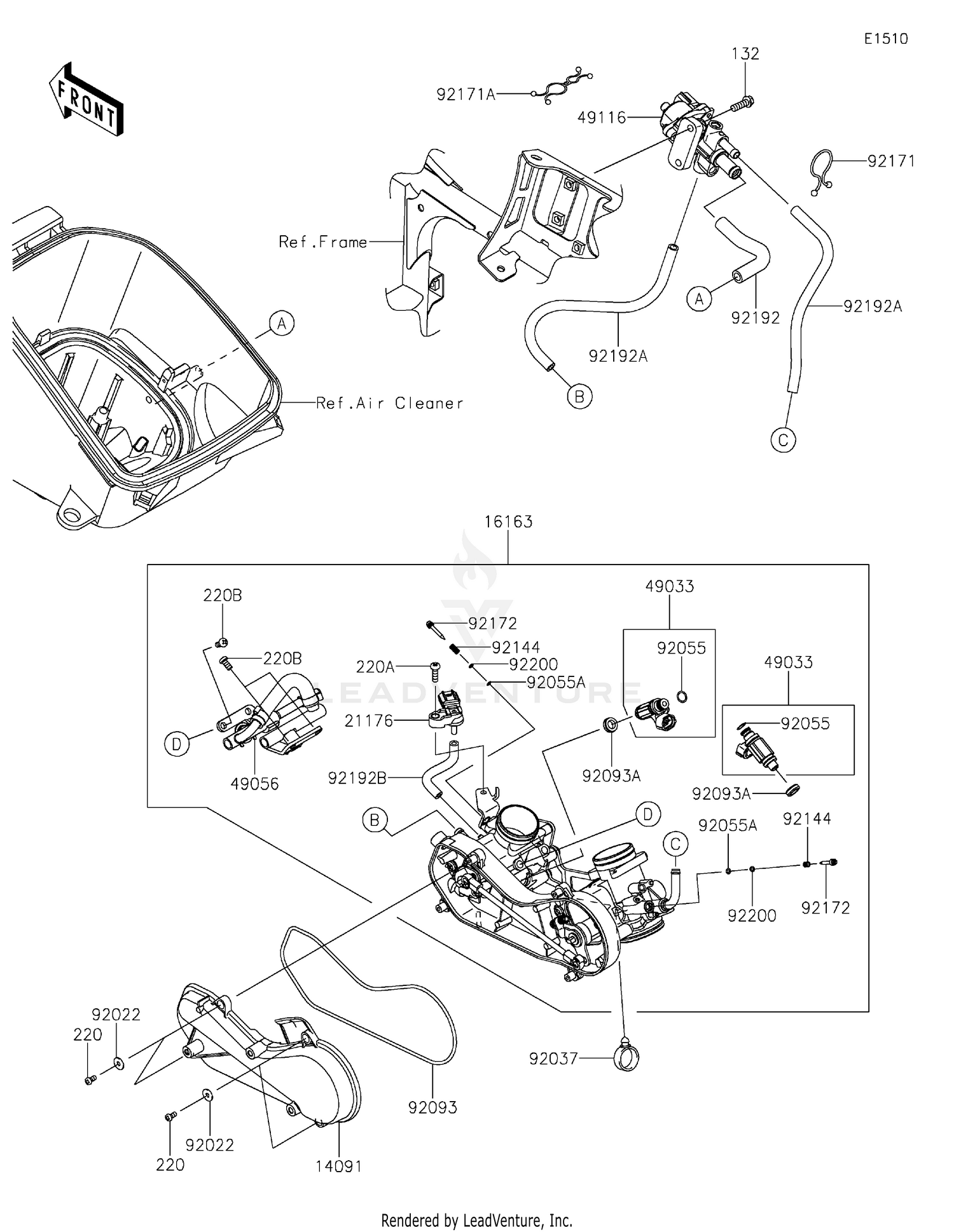

Throttle 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#14091
COVER,THROTTLE LINK
14091-1731
|
$23.16 | ||
|
Available to order. Add to View Price |
|||
|
#16163
THROTTLE-ASSY
16163-0792
|
$911.96 | ||
|
Available to order. Add to View Price |
|||
|
#21176
SENSOR,PRESSURE
21176-0906
|
$226.99 | ||
|
Available to order. Add to View Price |
|||
|
#49033
NOZZLE-INJECTION
49033-0011
|
$94.10 | ||
|
Available to order. Add to View Price |
|||
|
#49056
PIPE-INJECTION
49056-0034
|
$371.44 | ||
|
Available to order. Add to View Price |
|||
|
#49116
VALVE-ASSY,ISC
49116-0021
|
$201.70 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,5.2X13X1
92022-1380
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,HOSE
92037-1827
|
$7.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92055
RING-O,INJECTION NOZZLE
92055-1622
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,AIR SCREW
92055-1658
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL
92093-0082
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#92093A
SEAL
92093-0127
|
$10.85 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING
92144-1674
|
$5.89 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-1185
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92171A
CLAMP
92171-1438
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW
92172-0156
|
$15.57 | ||
|
Available to order. Add to View Price |
|||
|
#92192
TUBE
92192-0437
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#92192A
TUBE
92192-0439
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#92192B
TUBE
92192-0914
|
$12.78 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,PILOT AIR SCREW
92200-1564
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X18
132BD0618
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,4X8
220AA0408
|
$0.74 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS,5X16
220AA0516
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#220B
SCREW-PAN-CROS,6X12
220D0612
Superseded by 220AA0612
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
