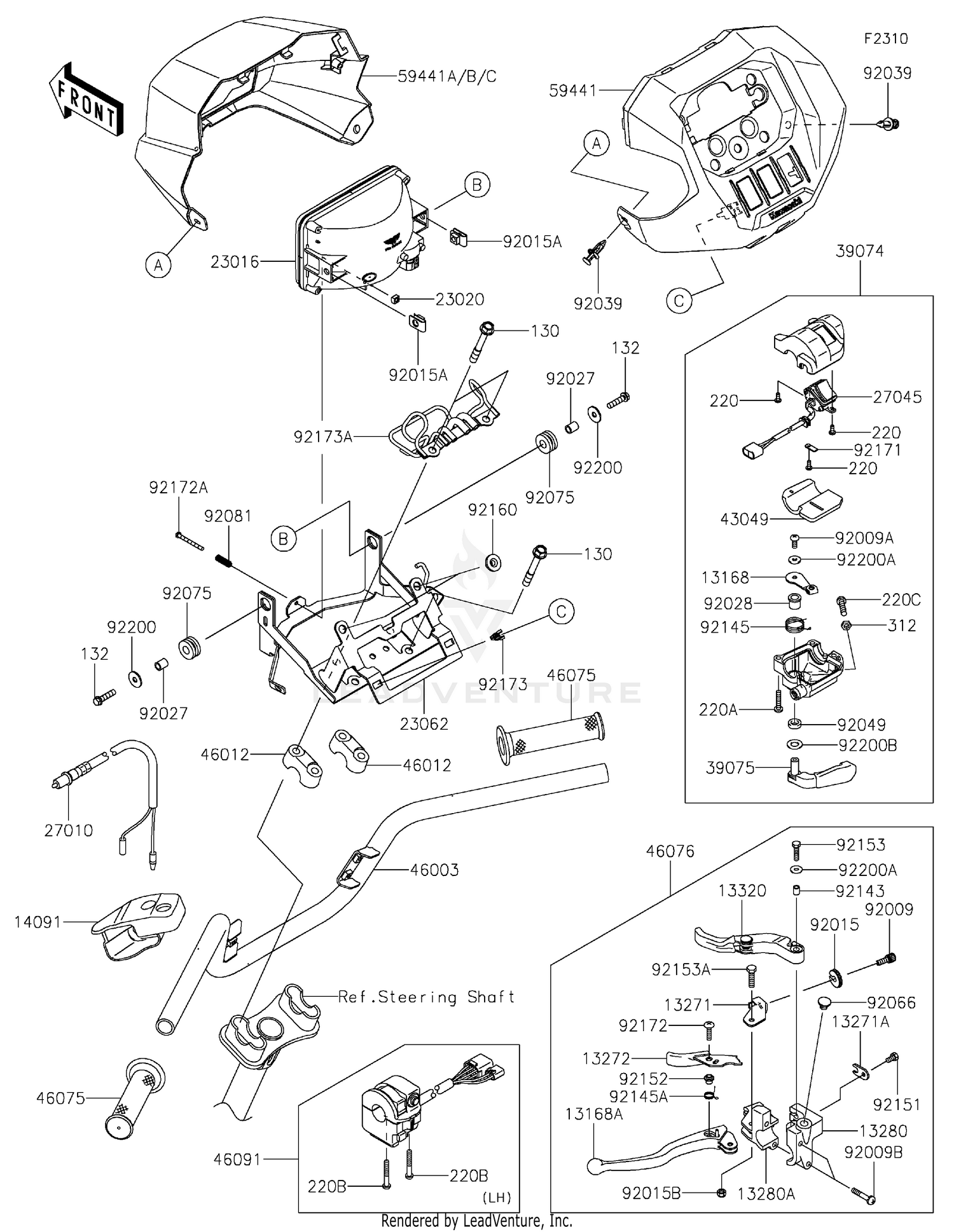

Handlebar 3 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13168
LEVER
13168-1715
|
$8.83 | ||
|
Available to order. Add to View Price |
|||
|
#13168A
LEVER,LH
13168-1736
|
$27.33 | ||
|
Available to order. Add to View Price |
|||
|
#13271
PLATE,LOCK
13271-1259
|
$18.08 | ||
|
Available to order. Add to View Price |
|||
|
#13271A
PLATE,WIRE OUTER STOPPER
13271-1636
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#13272
PLATE,LEVER LOCK
13272-3826
|
$14.37 | ||
|
Available to order. Add to View Price |
|||
|
#13280
HOLDER,DIFF LOCK LEVER
13280-1226
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#13280A
HOLDER,LEVER,LH
13280-1227
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#13320
LEVER-ASSY,DIFF LOCK
13320-0040
|
$65.11 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER,DIFF LOCK LEVER
14091-1403
|
$18.52 | ||
|
Available to order. Add to View Price |
|||
|
#23016
LAMP-ASSY,WORK
23016-0672
|
$105.73 | ||
|
Unavailable |
|||
|
#23020
NUT,4MM,FOCUS ADJUST
23020-018
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#23062
BRACKET-COMP,HANDLE
23062-1479
|
$25.67 | ||
|
Unavailable |
|||
|
#27010
SWITCH,BRAKE
27010-1294
|
$35.85 | ||
|
Available to order. Add to View Price |
|||
|
#27045
SWITCH-ASSY
27045-0010
|
$35.48 | ||
|
Available to order. Add to View Price |
|||
|
#39074
LEVER-ASSY-THROTTLE
39074-0011
|
$187.57 | ||
|
Available to order. Add to View Price |
|||
|
#39075
LEVER-THROTTLE
39075-0032
|
$29.26 | ||
|
Available to order. Add to View Price |
|||
|
#43049
PACKING
43049-1088
|
$11.35 | ||
|
Available to order. Add to View Price |
|||
|
#46003
HANDLE
46003-0838
|
$76.98 | ||
|
Unavailable |
|||
|
#46012
HOLDER-HANDLE
46012-1168
|
$16.73 | ||
|
Available to order. Add to View Price |
|||
|
#46075
GRIP
46075-0065
|
$31.21 | ||
|
Available to order. Add to View Price |
|||
|
#46076
LEVER-ASSY-GRIP,DIFF LOCK
46076-0180
|
$105.23 | ||
|
Available to order. Add to View Price |
|||
|
#46091
HOUSING-ASSY-CONTROL
46091-0243
|
$194.06 | ||
|
Available to order. Add to View Price |
|||
|
#59441
COVER,METER
59441-0308
|
$19.22 | ||
|
Unavailable |
|||
|
#59441A
COVER,WORK LAMP,B.WHITE
59441-0309-266
|
$23.26 | ||
|
Unavailable |
|||
|
#59441B
COVER,WORK LAMP,G.BLUE
59441-0309-72W
|
$23.26 | ||
|
Unavailable |
|||
|
#59441C
COVER,WORK LAMP,S.GRAY
59441-0309-75V
|
$23.26 | ||
|
Unavailable |
|||
|
#92009
SCREW,CABLE ADJUST,8MM
92009-1435
Superseded by 46055-003
|
$16.73 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW
92009-1959
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#92009B
SCREW,6X30
92009-1961
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,CABLE ADJUST LOCK,8MM
92015-1596
Superseded by 46056-005
|
$9.11 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,6MM
92015-1602
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
|
#92015B
NUT,LOCK,6MM
92015-1829
Superseded by 92019-008
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,6.8X10X12
92027-162
|
$6.74 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING
92028-1986
|
$4.26 | ||
|
Available to order. Add to View Price |
|||
|
#92039
RIVET
92039-0865
|
$0.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92049
SEAL-OIL
92049-1578
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,9.5X8,POLYETHYLENE
92066-1077
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,10X24X12
92075-1690
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,FOCUS ADJUST
92081-1896
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
