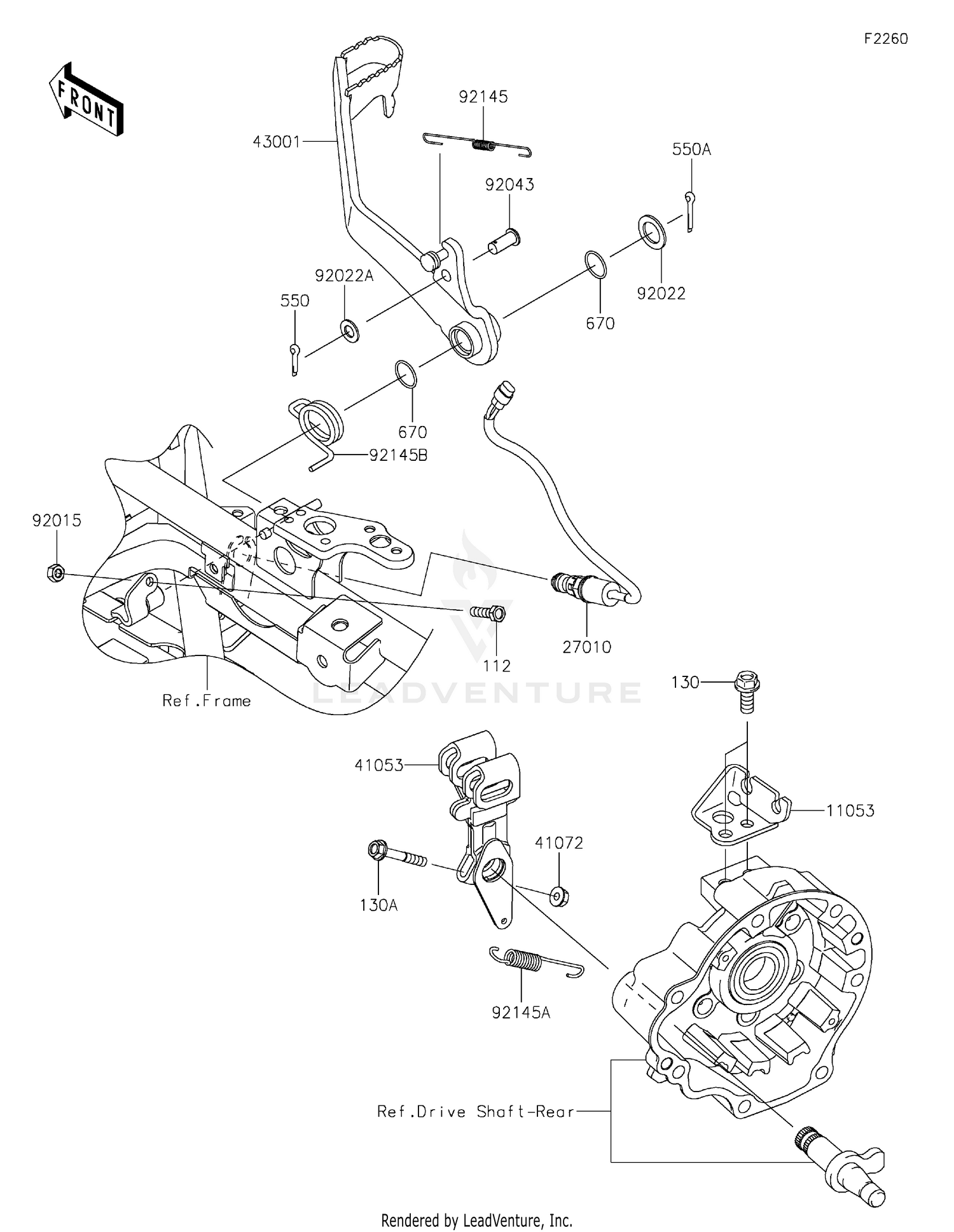

Brake Pedal 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11053
BRACKET,BRAKE CABLE
11053-0642
|
$6.51 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,BRAKE
27010-1494
|
$51.47 | ||
|
Available to order. Add to View Price |
|||
|
#41053
LEVER-BRAKE CAM
41053-0017
|
$54.21 | ||
|
Available to order. Add to View Price |
|||
|
#41072
NUT,6MM
41072-007
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
|
#43001
LEVER-BRAKE,PEDAL
43001-0092
|
$65.28 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,6MM
92015-1410
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,15.5X24X1.6
92022-1049
|
$6.74 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER-PLAIN-SMALL,8MM
92022-1582
Superseded by 410AA0800
|
$1.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92043
PIN,8X16
92043-1013
|
$10.18 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING,REAR BRAKE SWITCH
92145-0144
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#92145A
SPRING,BRAKE LEVER RETURN
92145-1313
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#92145B
SPRING,BRAKE PEDAL RETURN
92145-1421
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#112
BOLT-UPSET,6X22
112AA0622
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,8X20
130BA0820
|
$4.23 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X40
130CA0640
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,2.0X15
550AA2015
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#550A
PIN-COTTER,2.0X22
550AA2022
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,15MM
670B2015
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
