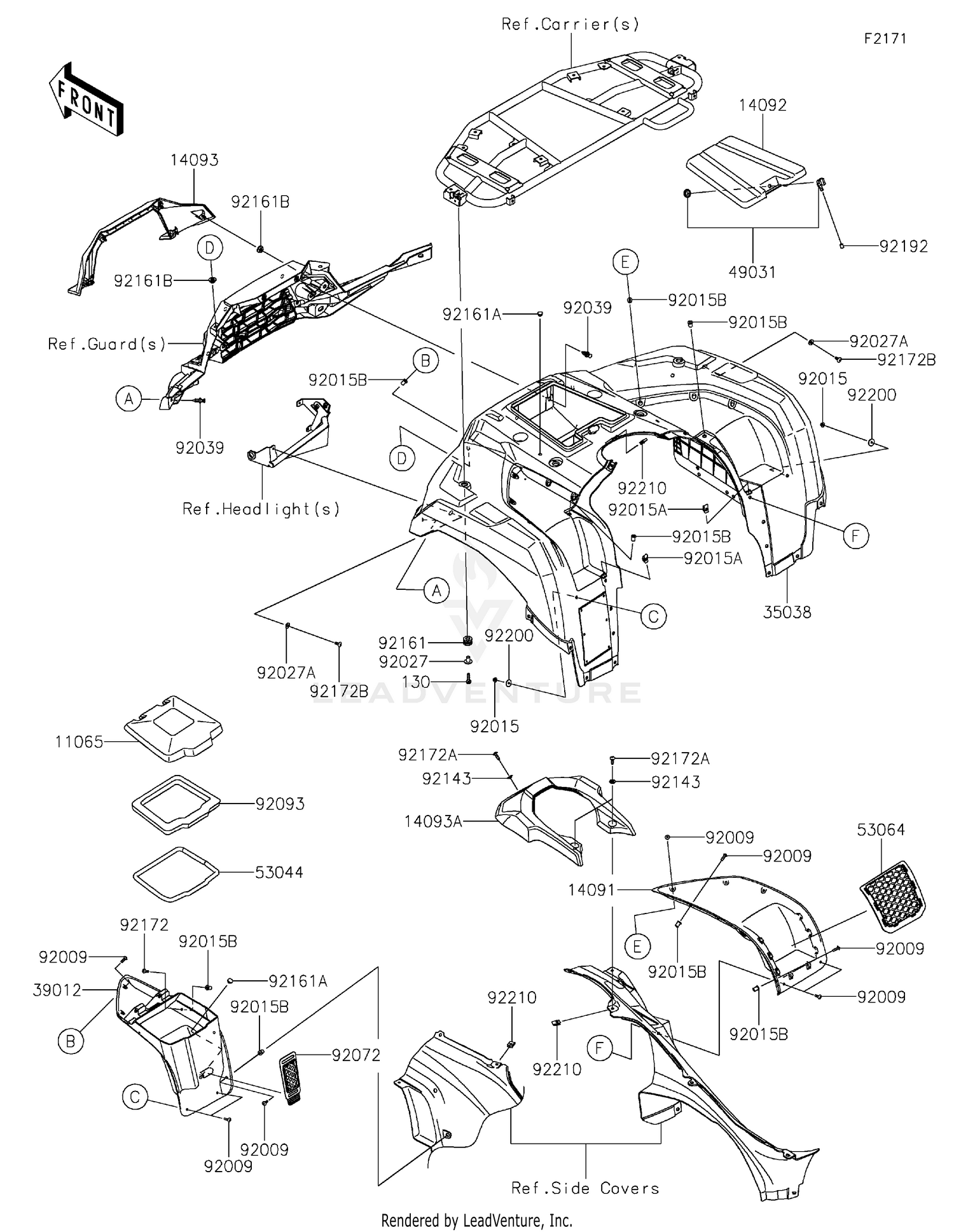

Front Fender(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11065
CAP,STORAGE,F.BLACK
11065-0194-6Z
|
$12.74 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER,POCKET,RH,F.BLACK
14091-0136-6Z
|
$30.25 | ||
|
Available to order. Add to View Price |
|||
|
#14092
COVER,STORAGE BOX
14092-0180
|
$43.12 | ||
|
Available to order. Add to View Price |
|||
|
#14093
COVER,FR,G.BLUE
14093-1507-72W
|
$79.29 | ||
|
Unavailable |
|||
|
#14093A
COVER,TOP
14093-1508
|
$85.84 | ||
|
Unavailable |
|||
|
#35038
FENDER-FRONT,G.BLUE
35038-0048-72W
|
$288.12 | ||
|
Unavailable |
|||
|
#39012
CASE-STORAGE,F.BLACK
39012-0015-6Z
|
$33.12 | ||
|
Available to order. Add to View Price |
|||
|
#49031
LATCH
49031-0004
|
$6.76 | ||
|
Available to order. Add to View Price |
|||
|
#53044
TRIM,L=700
53044-0037
|
$12.24 | ||
|
Available to order. Add to View Price |
|||
|
#53064
NET-CARGO
53064-0002
|
$9.24 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,5X18
92009-1655
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,5MM
92015-1259
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,5MM
92015-1710
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#92015B
NUT,WELL,5MM
92015-1757
|
$7.52 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=16.1
92027-1847
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR
92027-4020
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#92039
RIVET
92039-0776
Superseded by 92039-0865
|
$0.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92072
BAND,STORAGE
92072-0095
|
$9.40 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,STORAGE CAP
92093-0568
|
$20.34 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1087
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER
92161-0106
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER
92161-0586
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#92161B
DAMPER
92161-1531
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,5X18
92172-0428
|
$0.94 | ||
|
Available to order. Add to View Price |
|||
|
#92172A
SCREW,TAPPING,6X20
92172-0488
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#92172B
SCREW,TAPPING,6X16
92172-0739
|
$0.91 | ||
|
Available to order. Add to View Price |
|||
|
#92192
TUBE,4.8X7.9X10
92192-2759
|
$1.55 | ||
|
Unavailable |
|||
|
#92200
WASHER,5.5X20X1.2
92200-0284
|
$2.23 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,LEAF SPRING,6MM
92210-0624
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X25
130BA0625
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
