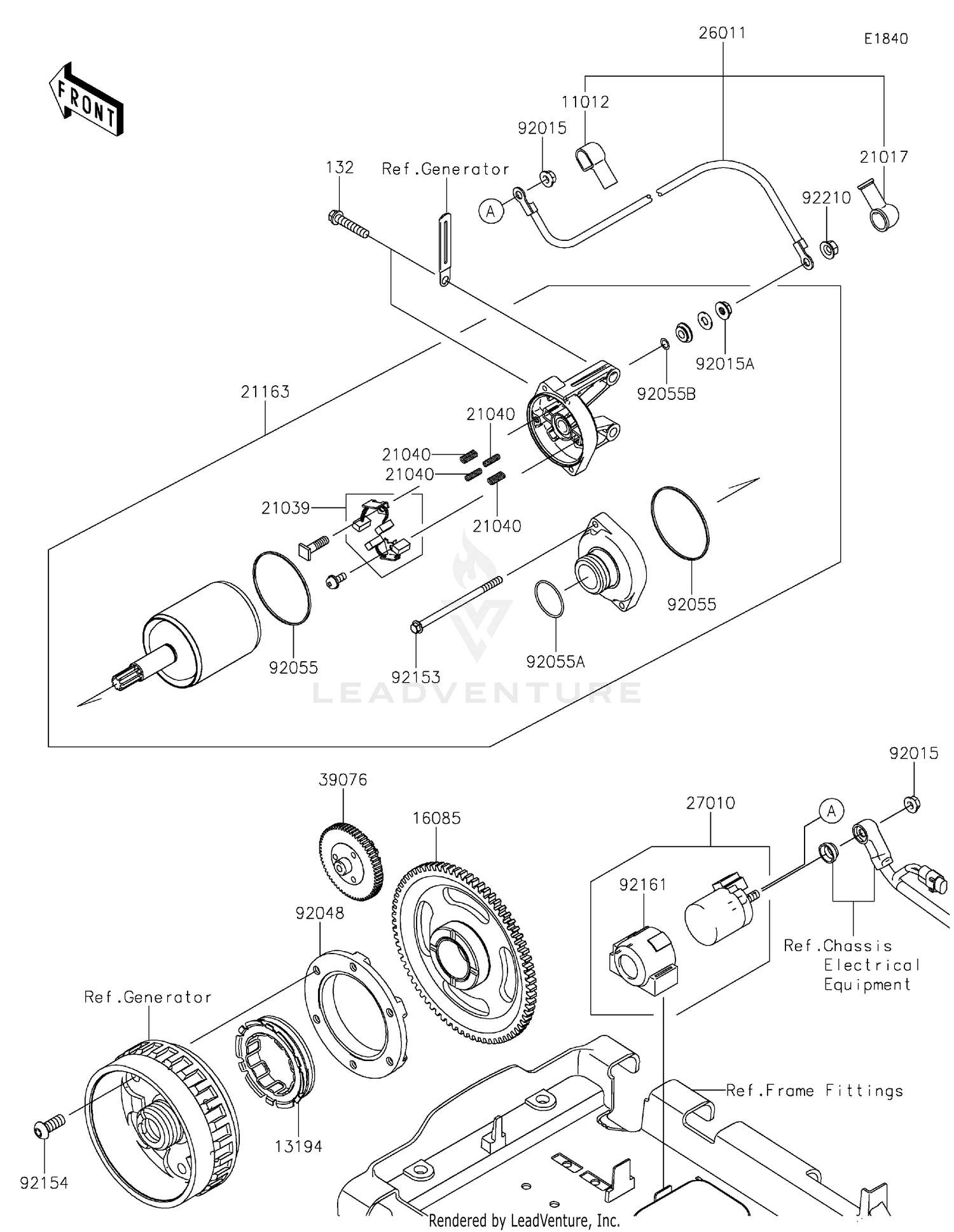

Starter Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP,TERMINAL
11012-1354
|
$10.47 | ||
|
Available to order. Add to View Price |
|||
|
#13194
CLUTCH-ONEWAY
13194-1094
|
$128.76 | ||
|
Available to order. Add to View Price |
|||
|
#16085
GEAR,STARTER
16085-0597
|
$156.43 | ||
|
Available to order. Add to View Price |
|||
|
#21017
GROMMET,STARTER TERMINAL
21017-017
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#21039
BRUSH,CARBON
21039-0004
|
$120.17 | ||
|
Available to order. Add to View Price |
|||
|
#21040
SPRING-BRUSH
21040-0003
|
$10.06 | ||
|
Available to order. Add to View Price |
|||
|
#21163
STARTER-ELECTRIC
21163-0037
|
$763.64 | ||
|
Available to order. Add to View Price |
|||
|
#26011
WIRE-LEAD
26011-0719
|
$34.18 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,MAGNETIC
27010-0766
|
$130.39 | ||
|
Available to order. Add to View Price |
|||
|
#39076
LIMITER,STARTER
39076-0005
|
$247.64 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1367
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,STARTER MOTOR
92015-1476
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#92048
RACE,ONE WAY CLUTCH
92048-0002
|
$111.26 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-0136
|
$7.98 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O
92055-1276
|
$10.18 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O,4.5X2.0
92055-1370
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT
92153-1850
|
$12.24 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,TORX,8X20
92154-0421
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER,MAGNETIC SWITCH
92161-1722
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,6MM
92210-0188
|
$2.23 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X30
132BA0630
|
$2.74 | ||
|
Available to order. Add to View Price |
|||
