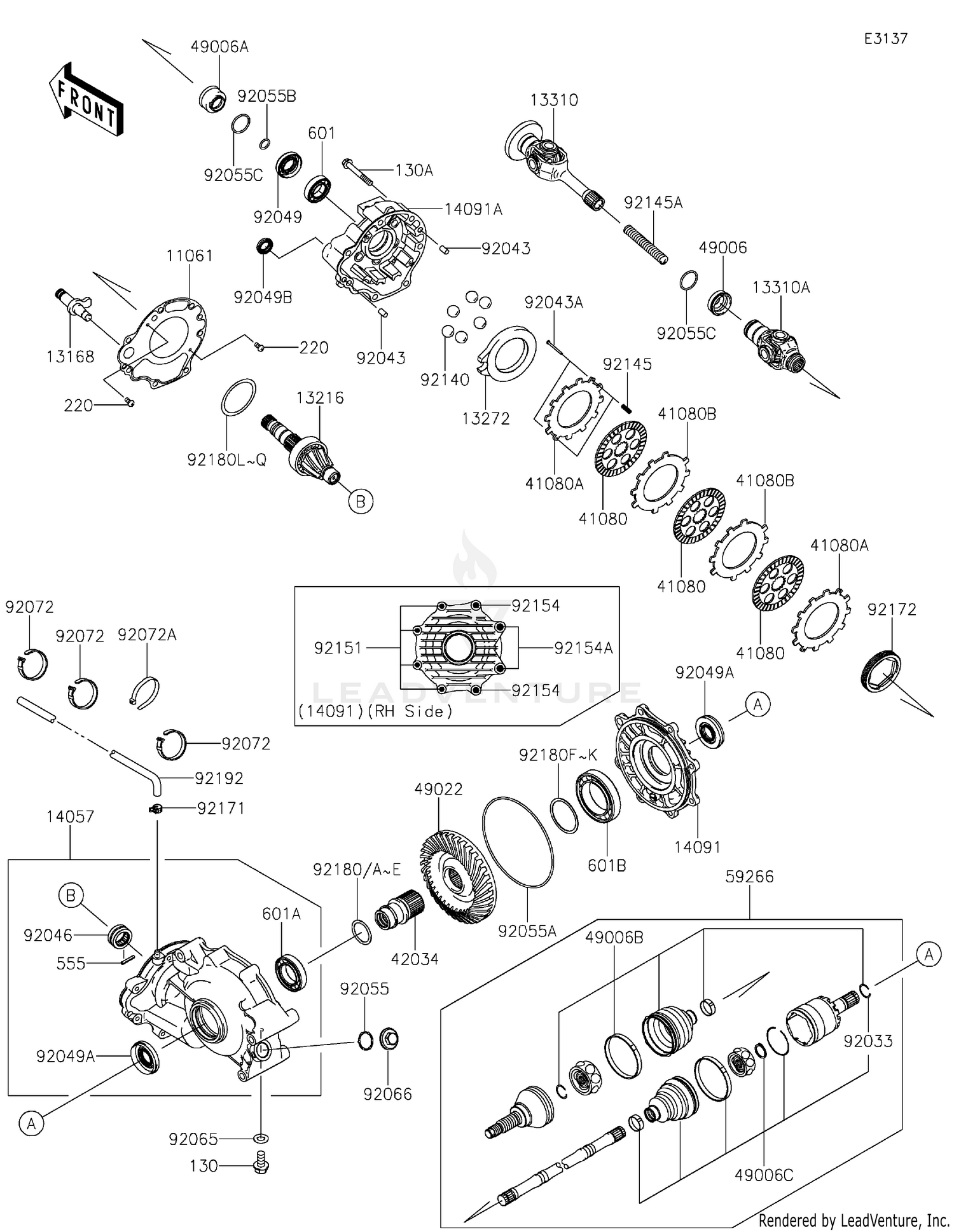

Drive Shaft-rear 3 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11061
GASKET,SOFT METAL
11061-0059
|
$29.88 | ||
|
Available to order. Add to View Price |
|||
|
#13168
LEVER,BRAKE
13168-0042
|
$39.27 | ||
|
Available to order. Add to View Price |
|||
|
#13216
GEAR-COMP
13216-0871
|
$232.64 | ||
|
Available to order. Add to View Price |
|||
|
#13272
PLATE
13272-1083
|
$28.50 | ||
|
Available to order. Add to View Price |
|||
|
#13310
SHAFT-ASSY,ENGINE SIDE
13310-0028
|
$232.34 | ||
|
Available to order. Add to View Price |
|||
|
#13310A
SHAFT-ASSY,GEAR-ASSY SIDE
13310-0558
|
$232.34 | ||
|
Available to order. Add to View Price |
|||
|
#14057
CASE-COMP-GEAR
14057-0010
|
$258.17 | ||
|
Available to order. Add to View Price |
|||
|
#14091
COVER,RH
14091-0142
|
$70.53 | ||
|
Available to order. Add to View Price |
|||
|
#14091A
COVER,FR
14091-0143
|
$113.97 | ||
|
Available to order. Add to View Price |
|||
|
#41080
DISC,FRICTION
41080-1482
|
$50.77 | ||
|
Available to order. Add to View Price |
|||
|
#41080A
DISC,PRESSURE
41080-1483
|
$19.14 | ||
|
Available to order. Add to View Price |
|||
|
#41080B
DISC,SEPARATER
41080-1484
|
$19.14 | ||
|
Available to order. Add to View Price |
|||
|
#42034
COUPLING
42034-0006
|
$80.49 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT
49006-0007
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#49006A
BOOT
49006-0008
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#49006B
BOOT,UJ
49006-0064
|
$96.45 | ||
|
Available to order. Add to View Price |
|||
|
#49006C
BOOT,DOJ
49006-0065
|
$96.45 | ||
|
Available to order. Add to View Price |
|||
|
#49022
GEAR-BEVEL,35T
49022-0609
|
$442.02 | ||
|
Available to order. Add to View Price |
|||
|
#59266
JOINT-BALL
59266-0023
|
$668.65 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-0835
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,8X14
92043-1567
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#92043A
PIN,3X35
92043-1617
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,AH502504A
92046-1280
|
$64.90 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,HTGY 24X45X9.5
92049-0028
|
$12.26 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,SDD7 25X57X7 HS
92049-0029
|
$12.26 | ||
|
Available to order. Add to View Price |
|||
|
#92049B
SEAL-OIL,TC17X28X6
92049-1537
|
$12.12 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-0122
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,158.5X3.70
92055-1631
|
$13.25 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O,18X24X3
92055-1633
|
$6.34 | ||
|
Available to order. Add to View Price |
|||
|
#92055C
RING-O,30X35X2.5
92055-1693
|
$6.34 | ||
|
Available to order. Add to View Price |
|||
|
#92065
GASKET,8.5X16X1
92065-023
|
$3.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92066
PLUG
92066-1303
|
$13.29 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=186
92072-056
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92072A
BAND,L=140
92072-1293
|
$7.27 | ||
|
Available to order. Add to View Price |
|||
|
#92140
BALL,D/O#12
92140-1064
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING,RR BRAKE
92145-1301
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#92145A
SPRING,PROPELLER SHAFT
92145-1304
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,8X30
92151-1908
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,10X35
92154-1823
|
$3.36 | ||
|
Available to order. Add to View Price |
|||
|
#92154A
BOLT,12X35
92154-1824
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
