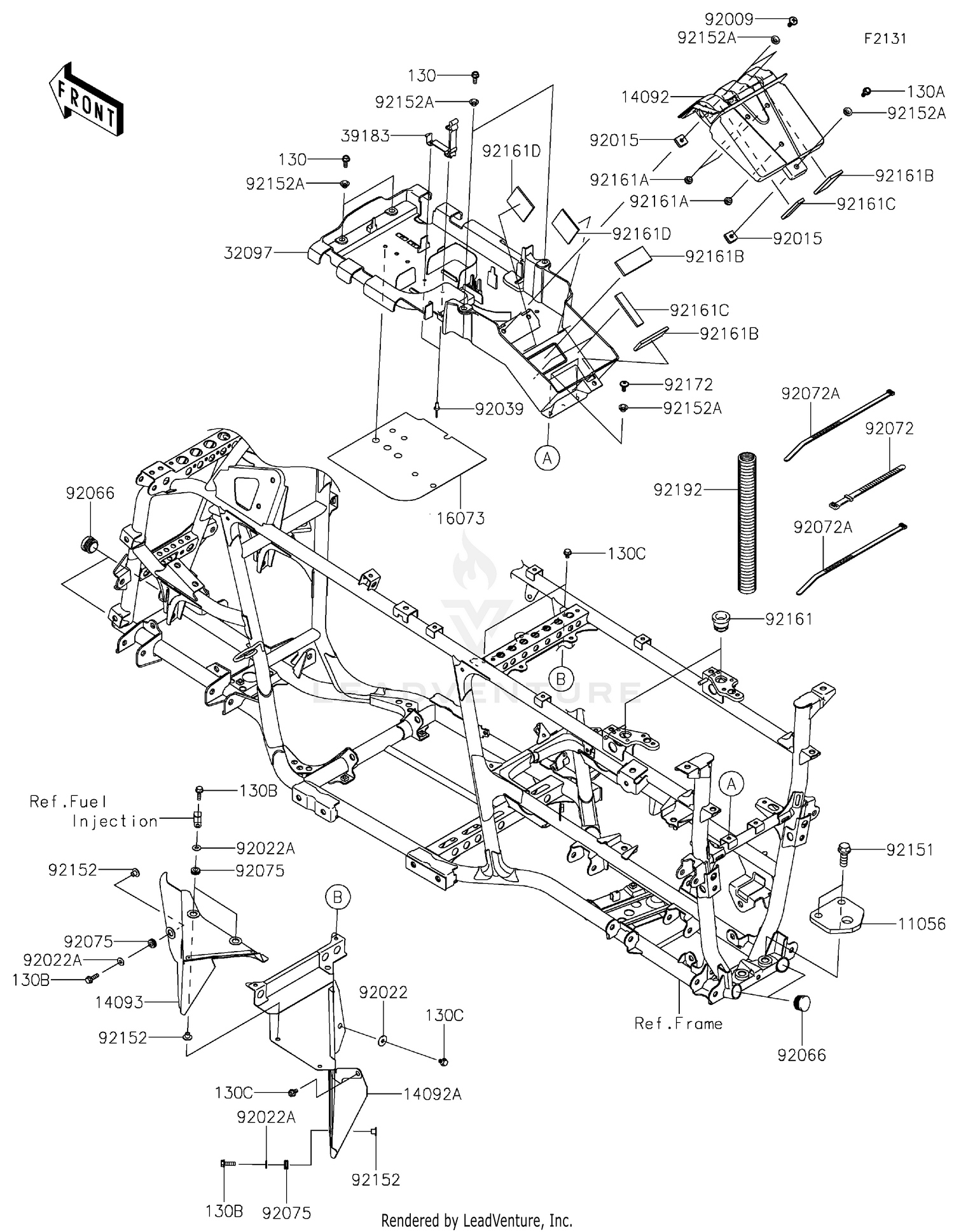

Frame Fittings Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11056
BRACKET,TRAILER HITCH
11056-0299
|
$8.41 | ||
|
Available to order. Add to View Price |
|||
|
#14092
COVER,BATTERY
14092-0189
|
$8.64 | ||
|
Available to order. Add to View Price |
|||
|
#14092A
COVER,HEAT GUARD,FR
14092-0897
|
$75.53 | ||
|
Available to order. Add to View Price |
|||
|
#14093
COVER,HEAT GUARD
14093-0021
|
$47.61 | ||
|
Available to order. Add to View Price |
|||
|
#16073
INSULATOR,BATTERY CASE
16073-0809
|
$8.32 | ||
|
Available to order. Add to View Price |
|||
|
#32097
CASE-BATTERY
32097-0577
|
$26.15 | ||
|
Unavailable |
|||
|
#39183
BAND-ASSY,TOOL BAG
39183-1065
|
$9.75 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X20
92009-1289
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,6MM
92015-1094
|
$8.83 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.5X20X1.6
92022-1804
Superseded by 92200-0283
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,6.2X15X1.2
92022-2373
|
$0.49 | ||
|
Available to order. Add to View Price |
|||
|
#92039
RIVET,4.8MM
92039-3719
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG
92066-0036
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=186
92072-056
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92072A
BAND,L=292.1
92072-3509
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-2097
|
$2.14 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,FLANGED,12X35
92151-1903
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,6.3X8.3X9.2
92152-0237
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#92152A
COLLAR,6.3X8.3X7.2
92152-1865
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER
92161-0048
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER
92161-1084
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#92161B
DAMPER,30X70X5
92161-1127
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#92161C
DAMPER,15X70X5
92161-1380
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#92161D
DAMPER,50X50X3
92161-1386
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,6X14
92172-0401
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#92192
TUBE,CORRUGATED,25.5X32.25X300
92192-1042
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X16
130BA0616
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X18
130BA0618
|
$1.61 | ||
|
Available to order. Add to View Price |
|||
|
#130B
BOLT-FLANGED,6X20
130BA0620
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#130C
BOLT-FLANGED,6X10
130BD0610
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
