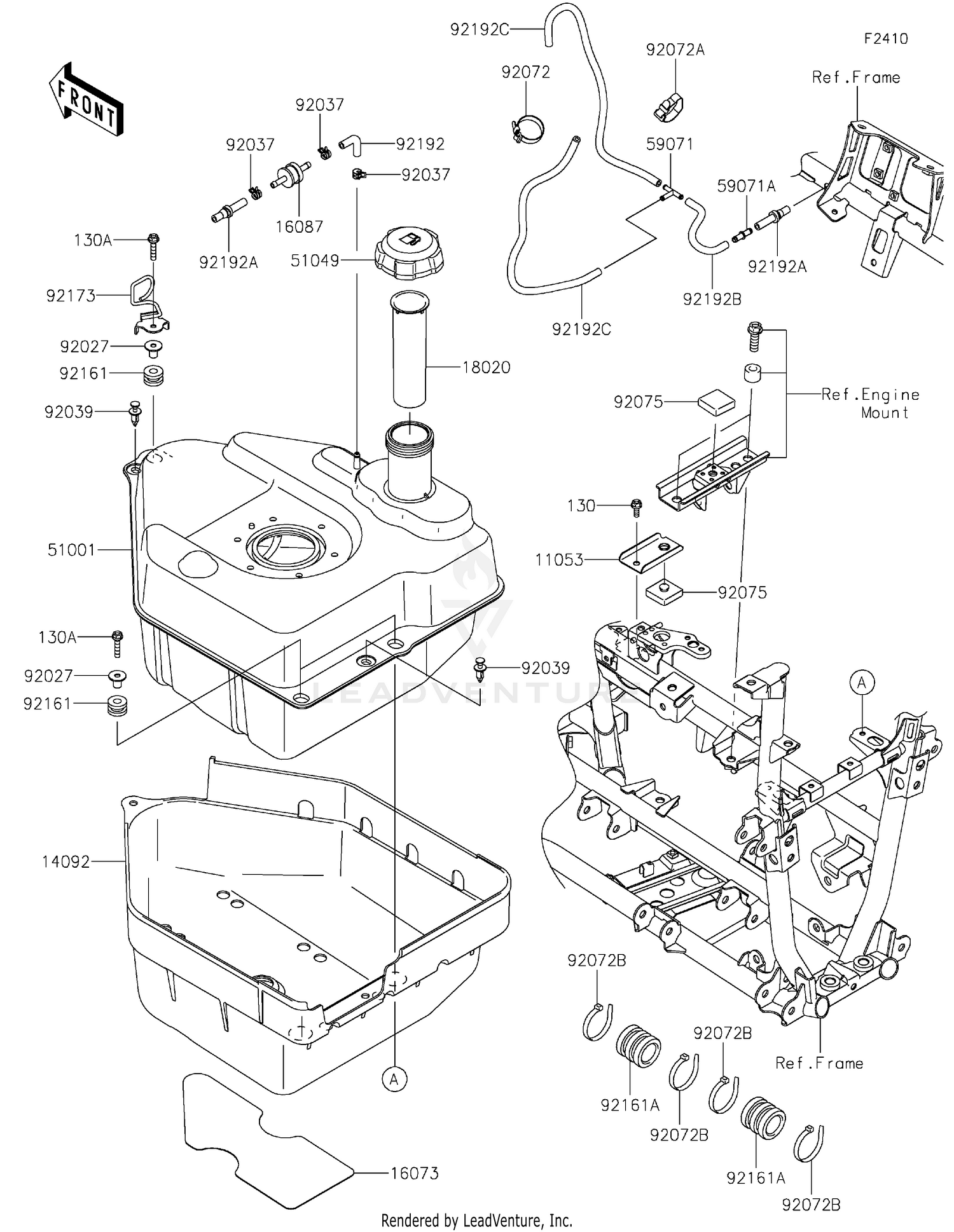

Fuel Tank 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11053
BRACKET,FUEL TANK,TOP
11053-0936
|
$3.72 | ||
|
Available to order. Add to View Price |
|||
|
#14092
COVER,FUEL TANK,LWR
14092-0186
|
$42.07 | ||
|
Available to order. Add to View Price |
|||
|
#16073
INSULATOR,FUEL TANK COVER,LWR
16073-0925
|
$8.34 | ||
|
Available to order. Add to View Price |
|||
|
#16087
VALVE-CHECK
16087-0008
|
$38.37 | ||
|
Available to order. Add to View Price |
|||
|
#18020
BAFFLE,FUEL TANK
18020-0008
|
$10.81 | ||
|
Available to order. Add to View Price |
|||
|
#51001
TANK-COMP-FUEL
51001-0237
|
$328.00 | ||
|
Available to order. Add to View Price |
|||
|
#51049
CAP-TANK,FUEL
51049-0718
|
$65.90 | ||
|
Available to order. Add to View Price |
|||
|
#59071
JOINT
59071-3705
|
$5.01 | ||
|
Available to order. Add to View Price |
|||
|
#59071A
JOINT
59071-3717
|
$3.64 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=16.1
92027-1847
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-1461
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#92039
RIVET
92039-0865
|
$0.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92072
BAND,L=149
92072-031
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92072A
BAND,L=186
92072-056
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92072B
BAND,L=188
92072-1239
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1882
|
$8.34 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER
92161-0106
|
$1.81 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER,FUEL TANK,RR
92161-1111
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#92173
CLAMP,FUEL TUBE
92173-0872
|
$12.90 | ||
|
Available to order. Add to View Price |
|||
|
#92192
TUBE,FUEL TANK-CHECK VALVE
92192-0067
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#92192A
TUBE,FRAME PIPE-CHECK VALVE
92192-0068
|
$11.20 | ||
|
Available to order. Add to View Price |
|||
|
#92192B
TUBE,5X10X80/22
92192-0992
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#92192C
TUBE,5X10X470
92192-0993
|
$9.35 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X16
130BA0616
|
$1.27 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X30
130BA0630
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
