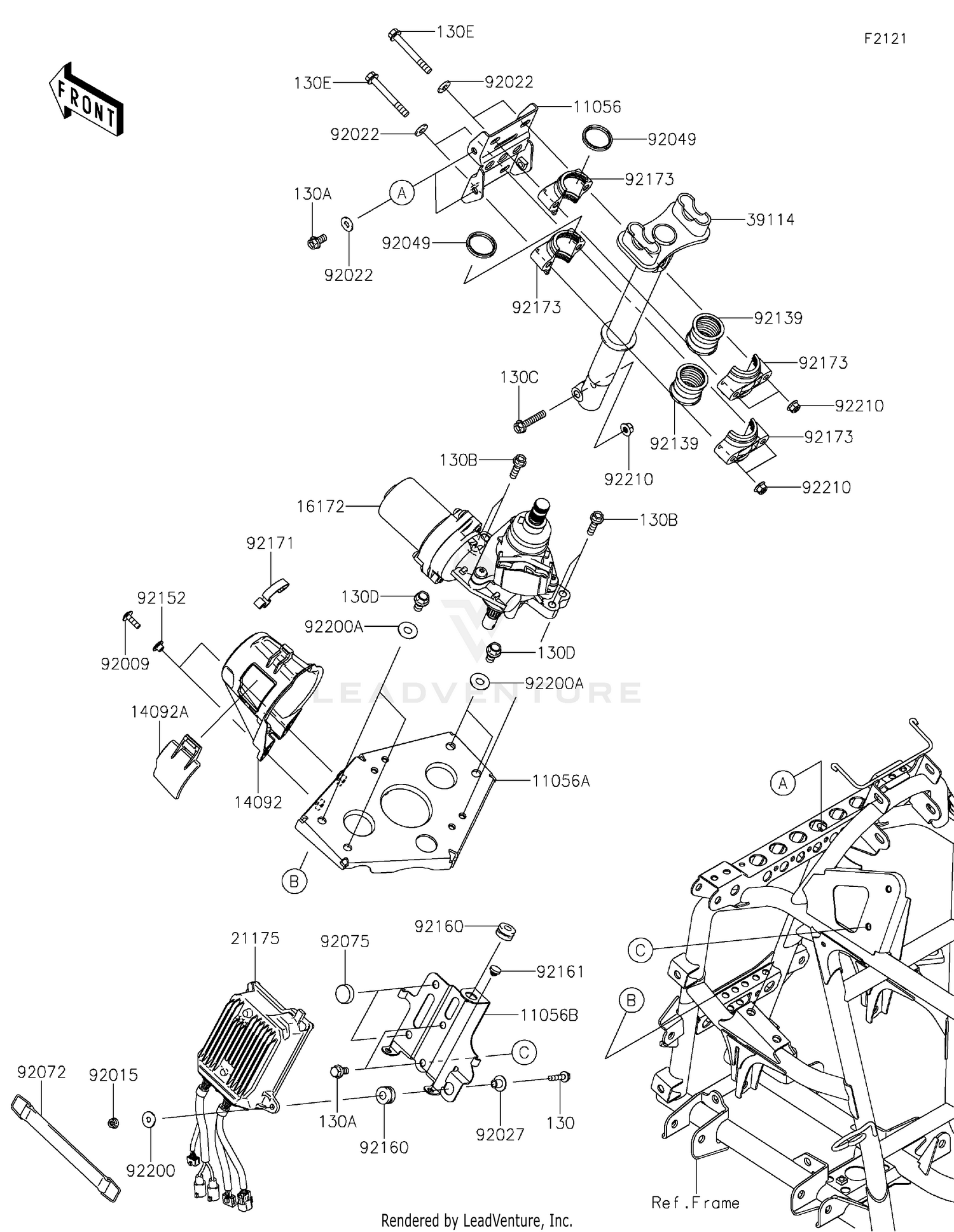

Steering Shaft 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11056
BRACKET,STRG,UPP
11056-0284
|
$10.86 | ||
|
Available to order. Add to View Price |
|||
|
#11056A
BRACKET,EPS BODY FIT
11056-0285
|
$48.79 | ||
|
Available to order. Add to View Price |
|||
|
#11056B
BRACKET,EPS ECU
11056-0290
|
$17.37 | ||
|
Available to order. Add to View Price |
|||
|
#14092
COVER,EPS
14092-0260
|
$34.89 | ||
|
Available to order. Add to View Price |
|||
|
#14092A
COVER,EPS,CAP
14092-0261
|
$6.94 | ||
|
Available to order. Add to View Price |
|||
|
#16172
ACTUATOR,EPS
16172-0049
|
$1,699.52 | ||
|
Unavailable |
|||
|
#21175
CONTROL UNIT-ELECTRONIC,EPS
21175-1927
|
$883.21 | ||
|
Unavailable |
|||
|
#39114
SHAFT-COMP-STRG
39114-0309
|
$111.11 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X20
92009-1289
|
$4.43 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1367
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,8.2X19X2
92022-1533
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=12
92027-1062
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,SR31.8X37.5X3.8LR
92049-7501
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,BATTERY
92072-3879
|
$36.42 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,9X24X14
92075-281
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#92139
BUSHING,STRG SHAFT
92139-0763
|
$13.69 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,6.3X8.3X7.2
92152-1865
|
$1.26 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1895
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER
92161-0586
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-0225
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#92173
CLAMP,STRG SHAFT
92173-0746
|
$16.75 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,6.5X20X1.6
92200-0283
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER,10.5X25X1.6
92200-1595
|
$6.34 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,FLANGED,LOCK,8MM
92210-0493
|
$7.83 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X30
130BA0630
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,8X16
130BA0816
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#130B
BOLT-FLANGED,8X30
130BA0830
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#130C
BOLT-FLANGED,8X40
130BA0840
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#130D
BOLT-FLANGED,10X16
130BA1016
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#130E
BOLT-FLANGED,8X65
130CA0865
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
