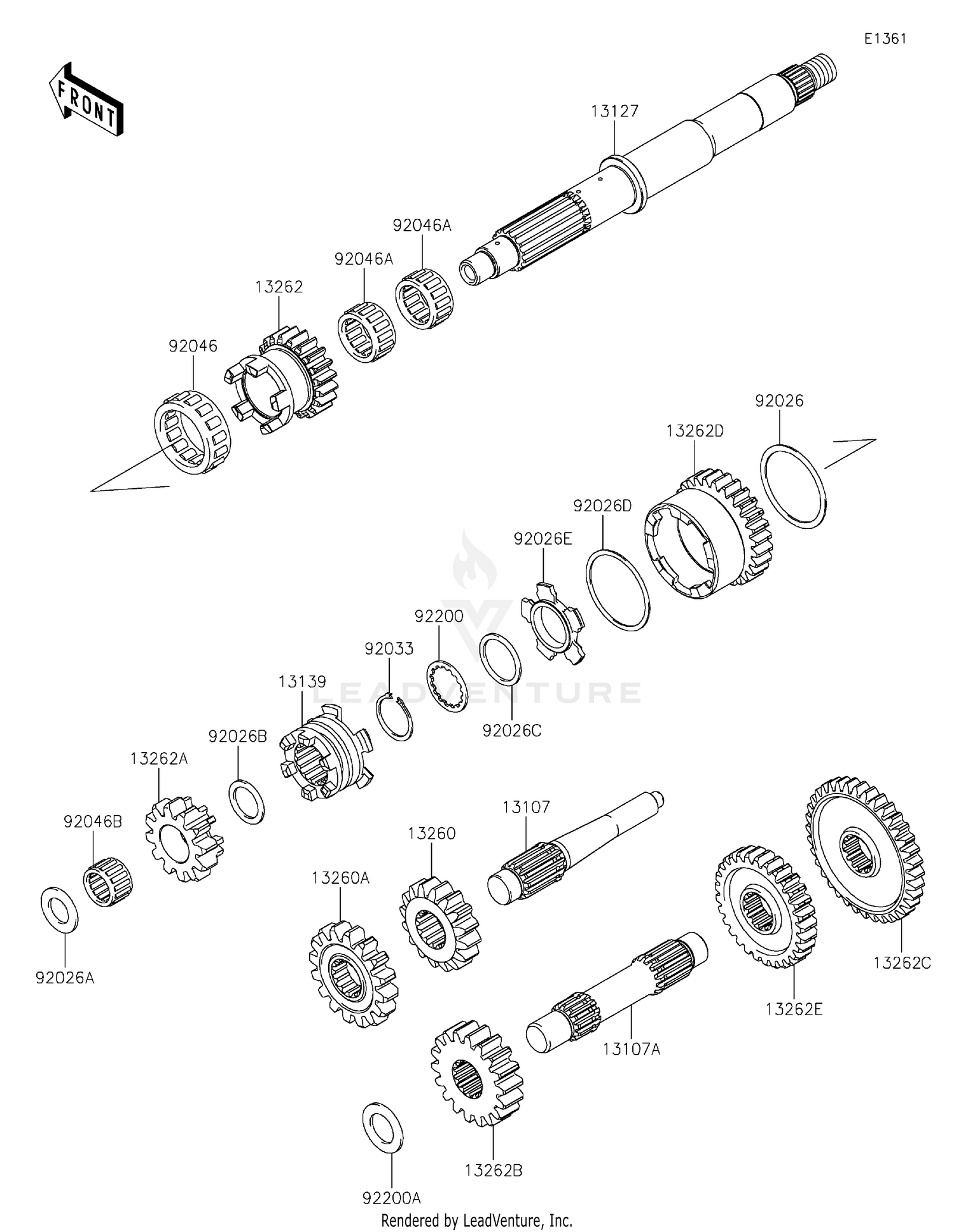

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13107
SHAFT,REVERSE,IDLE
13107-0754
|
$238.76 | ||
|
Available to order. Add to View Price |
|||
|
#13107A
SHAFT,COUNTER
13107-0755
|
$151.34 | ||
|
Available to order. Add to View Price |
|||
|
#13127
SHAFT-TRANSMISSION INPUT
13127-0053
|
$277.07 | ||
|
Available to order. Add to View Price |
|||
|
#13139
SHIFTER
13139-0626
|
$79.18 | ||
|
Available to order. Add to View Price |
|||
|
#13260
GEAR,OUTPUT REVERSE,16T
13260-1872
|
$118.13 | ||
|
Available to order. Add to View Price |
|||
|
#13260A
GEAR,DRIVEN REVERSE,16T
13260-1873
|
$118.13 | ||
|
Available to order. Add to View Price |
|||
|
#13262
GEAR,INPUT LOW,20T
13262-0234
|
$136.85 | ||
|
Available to order. Add to View Price |
|||
|
#13262A
GEAR,INPUT REVERSE,12T
13262-0235
|
$115.65 | ||
|
Available to order. Add to View Price |
|||
|
#13262B
GEAR,OUTPUT DRIVE,18T
13262-0432
|
$79.87 | ||
|
Available to order. Add to View Price |
|||
|
#13262C
GEAR,DRIVEN LOW,36T
13262-0794
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#13262D
GEAR,INPUT HI,27T
13262-0837
|
$137.01 | ||
|
Available to order. Add to View Price |
|||
|
#13262E
GEAR,DRIVEN HI,29T
13262-0838
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#92026
SPACER,48.2X56X1.0
92026-0163
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#92026A
SPACER,17.3X30X2.0
92026-1415
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#92026B
SPACER,21.2X29X1.6
92026-1568
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#92026C
SPACER,28.2X34.5X1.6
92026-1587
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#92026D
SPACER,48.2X54.3X1.0
92026-1599
|
$6.34 | ||
|
Available to order. Add to View Price |
|||
|
#92026E
SPACER,HI&LOW
92026-1600
|
$52.62 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,25.9X30.6X1.2
92033-1037
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE,HIGH GEAR
92046-1276
|
$36.72 | ||
|
Available to order. Add to View Price |
|||
|
#92046A
BEARING-NEEDLE,FWF-283317
92046-1278
|
$23.76 | ||
|
Available to order. Add to View Price |
|||
|
#92046B
BEARING-NEEDLE,REVERSE GEAR
92046-1279
|
$20.37 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,28.5X34.0X1.5
92200-1240
|
$10.56 | ||
|
Available to order. Add to View Price |
|||
|
#92200A
WASHER,20.3X33X2.0
92200-1351
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
