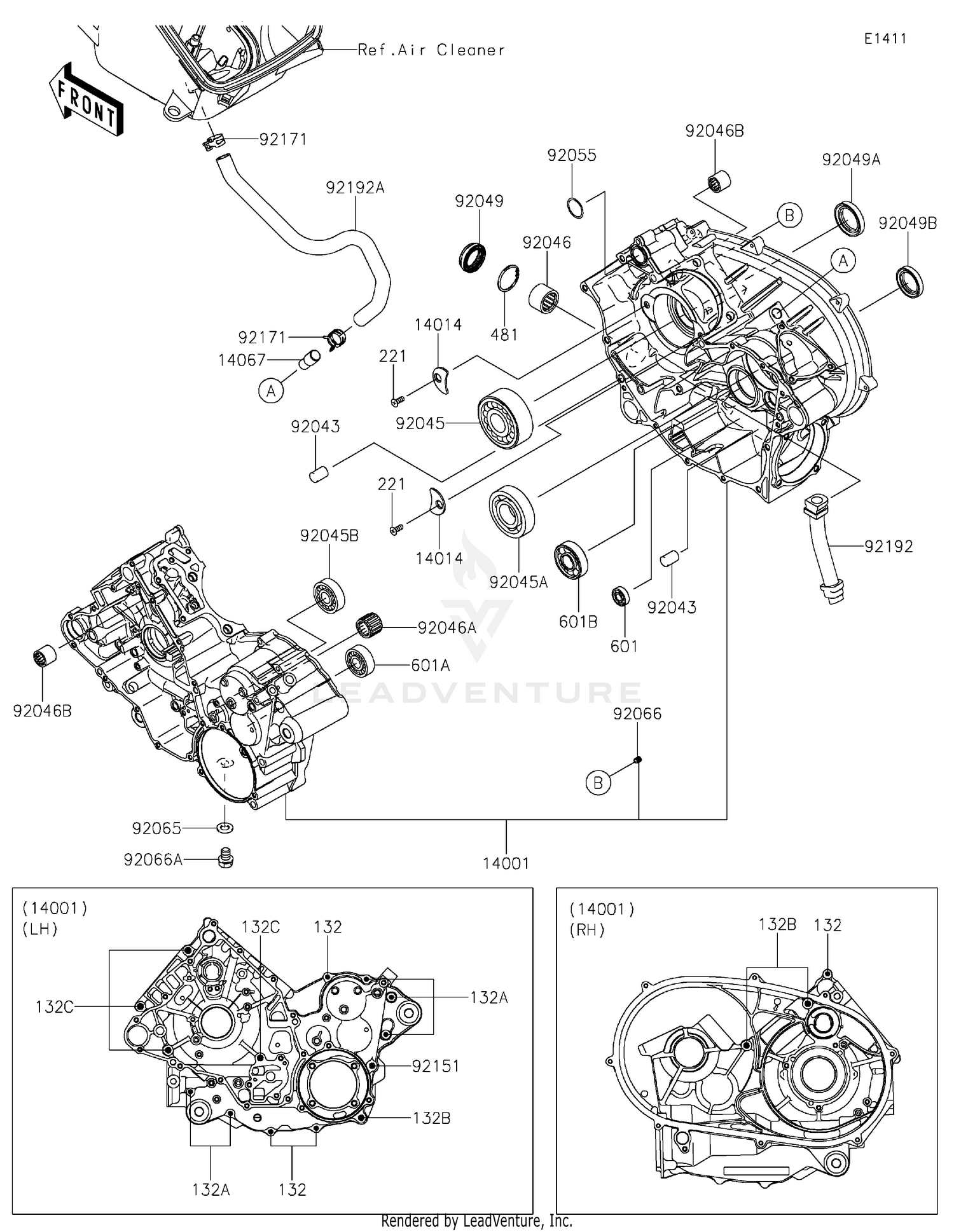

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#14001
SET-CRANKCASE
14001-0562
Superseded by 14101-0045
|
$1,208.34 | ||
|
Unavailable |
|||
|
#14014
PLATE-POSITION
14014-0006
|
$15.08 | ||
|
Available to order. Add to View Price |
|||
|
#14067
FITTING,BREATHER
14067-006
|
$21.46 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,10X14
92043-1506
|
$3.42 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,5208X2-A-ECG45
92045-0012
|
$130.38 | ||
|
Available to order. Add to View Price |
|||
|
#92045A
BEARING-BALL,6306SH2
92045-1190
|
$41.58 | ||
|
Available to order. Add to View Price |
|||
|
#92045B
BEARING-BALL,6303LUA
92045-1389
|
$22.04 | ||
|
Available to order. Add to View Price |
|||
|
#92046
BEARING-NEEDLE
92046-0022
|
$25.41 | ||
|
Available to order. Add to View Price |
|||
|
#92046A
BEARING-NEEDLE
92046-0039
|
$24.80 | ||
|
Available to order. Add to View Price |
|||
|
#92046B
BEARING-NEEDLE,TA202715ZE
92046-1118
|
$22.44 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,TC9Y 28X42X8X12
92049-0755
|
$21.30 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,TC 35X50X8
92049-1452
|
$14.09 | ||
|
Available to order. Add to View Price |
|||
|
#92049B
SEAL-OIL,HTC 30X45X8
92049-1575
|
$16.80 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,25.7X2.4
92055-1136
|
$5.14 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92065
GASKET,12X22X2
92065-097
|
$0.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92066
PLUG,OIL LINE,7.2X8
92066-1012
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#92066A
PLUG,OIL DRAIN,12X15
92066-1174
|
$6.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92151
BOLT,8X110
92151-1689
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#92171
CLAMP
92171-0329
|
$9.14 | ||
|
Available to order. Add to View Price |
|||
|
#92192
TUBE,OIL RETURN
92192-0970
|
$35.46 | ||
|
Available to order. Add to View Price |
|||
|
#92192A
TUBE,CRANKCASE-A/C
92192-1157
|
$42.11 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X40
132BD0640
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#132A
BOLT-FLANGED-SMALL,6X65
132BD0665
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#132B
BOLT-FLANGED-SMALL,8X110
132BD08110
|
$5.36 | ||
|
Available to order. Add to View Price |
|||
|
#132C
BOLT-FLANGED-SMALL,8X75
132BD0875
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#221
SCREW-CSK-CROS,6X16
221AA0616
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#481
CIRCLIP-TYPE-C,37MM
481J3700
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL
601A6000
|
$13.17 | ||
|
Available to order. Add to View Price |
|||
|
#601A
BEARING-BALL,#6004
601A6004
Superseded by 92045-0076
|
$16.46 | ||
|
Available to order. Add to View Price |
|||
|
#601B
BEARING-BALL,#6304
601A6304
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
