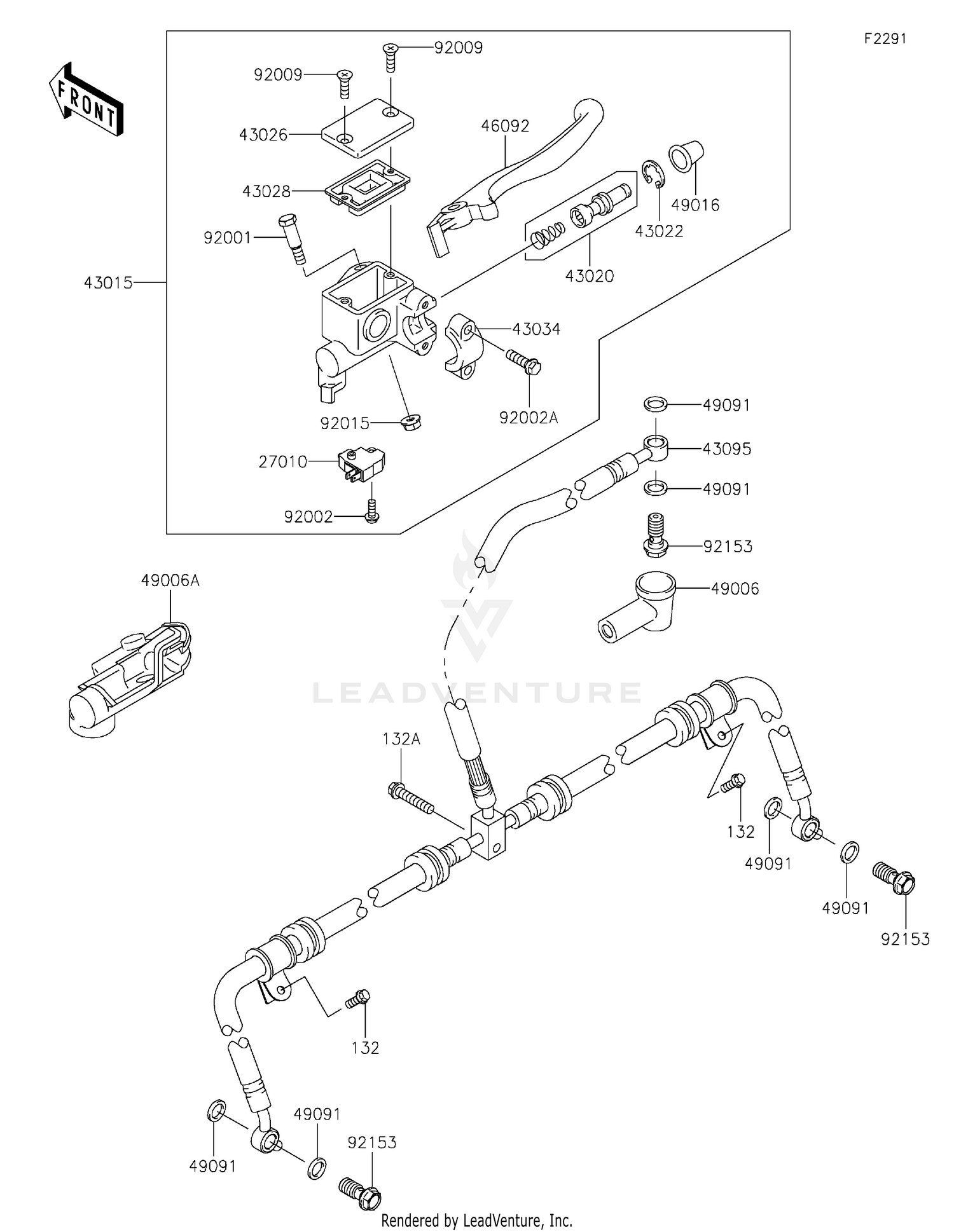

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#27010
SWITCH,BRAKE
27010-0762
|
$35.70 | ||
|
Available to order. Add to View Price |
|||
|
#43015
CYLINDER-ASSY-MASTER,FR
43015-0711
|
$414.45 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE,FR
43020-1054
|
$66.46 | ||
|
Available to order. Add to View Price |
|||
|
#43022
STOPPER-BRAKE,PISTON
43022-1010
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#43026
CAP-BRAKE
43026-1074
|
$26.04 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM
43028-1061
|
$16.57 | ||
|
Available to order. Add to View Price |
|||
|
#43034
HOLDER-BRAKE,MASTER CYLINDER
43034-1016
|
$19.80 | ||
|
Available to order. Add to View Price |
|||
|
#43095
HOSE-BRAKE
43095-1940
|
$161.32 | ||
|
Unavailable |
|||
|
#46092
LEVER-GRIP,FRONT BRAKE
46092-1208
|
$21.89 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,DUST
49006-1040
Superseded by 49006-1041
|
$11.79 | ||
|
Available to order. Add to View Price |
|||
|
#49006A
BOOT
49006-1338
|
$10.68 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL,MASTER CYLINDER
49016-1044
|
$8.93 | ||
|
Available to order. Add to View Price |
|||
|
#49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
|
$2.23 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#92001
BOLT,FRONT BRAKE LEVER
92001-1728
|
$14.58 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,SCREW,4X12
92002-1323
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT
92002-1894
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,4MM
92009-1458
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1528
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,OIL,L=23
92153-1419
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,5X12
132BA0512
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#132A
BOLT-FLANGED-SMALL,6X30
132BA0630
|
$2.74 | ||
|
Available to order. Add to View Price |
|||
