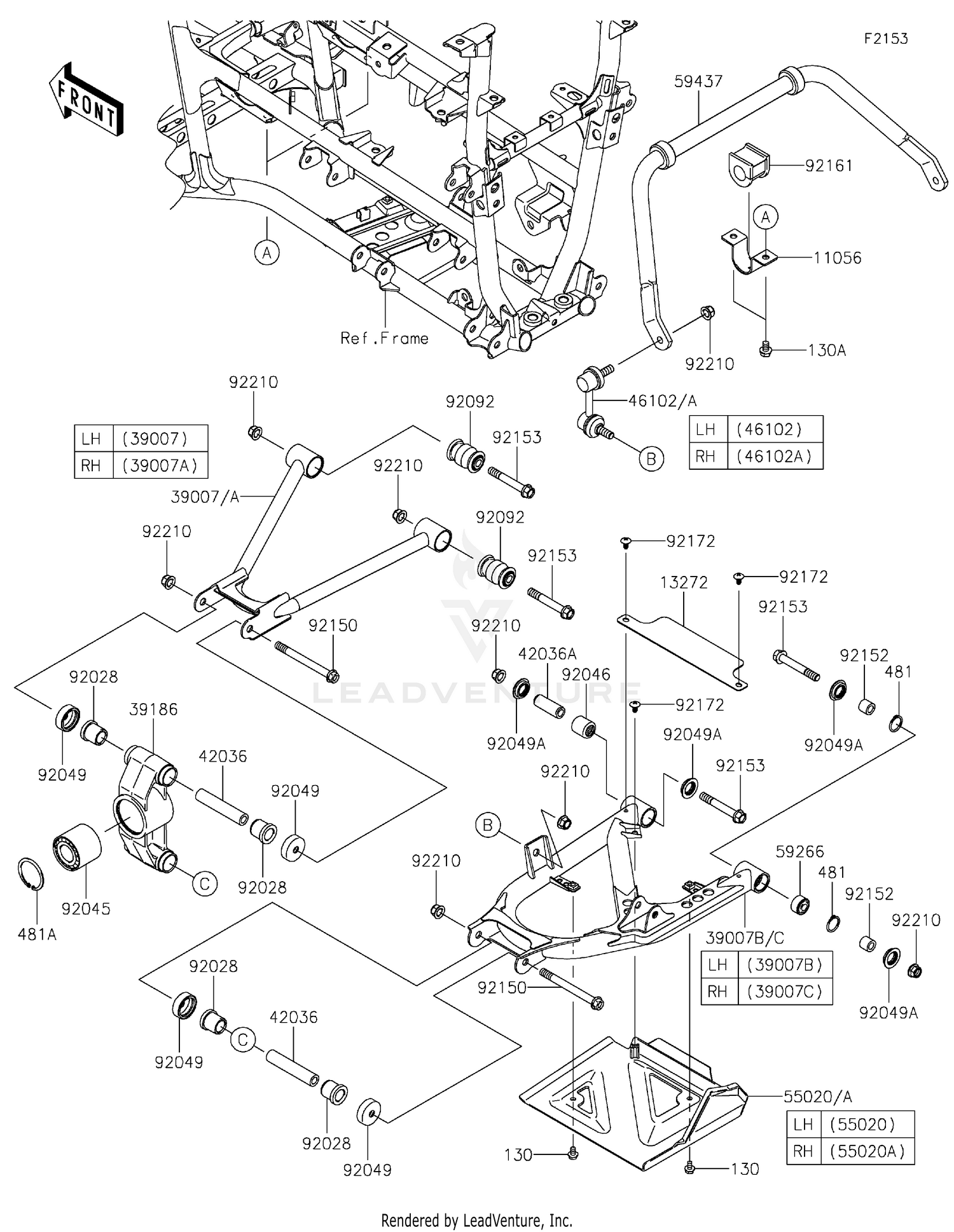

Rear Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11056
BRACKET,STABILIZER
11056-1062
|
$3.72 | ||
|
Available to order. Add to View Price |
|||
|
#13272
PLATE,RR ARM
13272-0919
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#39007
ARM-SUSP,RR,UPP,LH,BLACK
39007-0170-10
|
$85.04 | ||
|
Available to order. Add to View Price |
|||
|
#39007A
ARM-SUSP,RR,UPP,RH,BLACK
39007-0171-10
|
$85.04 | ||
|
Available to order. Add to View Price |
|||
|
#39007B
ARM-SUSP,RR,LWR,LH,BLACK
39007-0172-10
|
$113.55 | ||
|
Available to order. Add to View Price |
|||
|
#39007C
ARM-SUSP,RR,LWR,RH,BLACK
39007-0173-10
|
$113.55 | ||
|
Available to order. Add to View Price |
|||
|
#39186
KNUCKLE,RR
39186-0099
|
$217.55 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,10X17X85.6
42036-1190
|
$30.20 | ||
|
Available to order. Add to View Price |
|||
|
#42036A
SLEEVE
42036-1376
|
$15.08 | ||
|
Available to order. Add to View Price |
|||
|
#46102
ROD,STABILIZER
46102-0100
|
$49.52 | ||
|
Available to order. Add to View Price |
|||
|
#46102A
ROD,STABILIZER,RH
46102-0101
|
$49.52 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,REAR ARM,LH,F.BLACK
55020-0972-6Z
|
$34.38 | ||
|
Available to order. Add to View Price |
|||
|
#55020A
GUARD,REAR ARM,RH,F.BLACK
55020-0973-6Z
|
$34.38 | ||
|
Available to order. Add to View Price |
|||
|
#59266
JOINT-BALL
59266-0013
|
$66.77 | ||
|
Available to order. Add to View Price |
|||
|
#59437
STABILIZER,RR
59437-0307
|
$106.93 | ||
|
Available to order. Add to View Price |
|||
|
#92028
BUSHING
92028-1466
|
$10.56 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,25BWD02ACA68
92045-0094
|
$83.81 | ||
|
Unavailable |
|||
|
#92046
BEARING-NEEDLE
92046-1046
|
$28.38 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,KNUCKLE
92049-1198
|
$20.45 | ||
|
Available to order. Add to View Price |
|||
|
#92049A
SEAL-OIL,MHA17245.7F
92049-1223
|
$9.11 | ||
|
Available to order. Add to View Price |
|||
|
#92092
BUSHING-RUBBER
92092-0004
|
$8.52 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,FLANGED,10X105
92150-1624
|
$10.18 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,10X17X14.5
92152-1455
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,FLANGED,10X70
92153-1606
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER
92161-0265
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,6X12
92172-0884
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,LOCK,FLANGED,10MM
92210-0276
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X10
130BA0610
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,8X12
130BA0812
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
|
#481
CIRCLIP-TYPE-C,24MM
481J2400
|
$3.46 | ||
|
Available to order. Add to View Price |
|||
|
#481A
CIRCLIP-TYPE-C,52MM
481J5200
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
