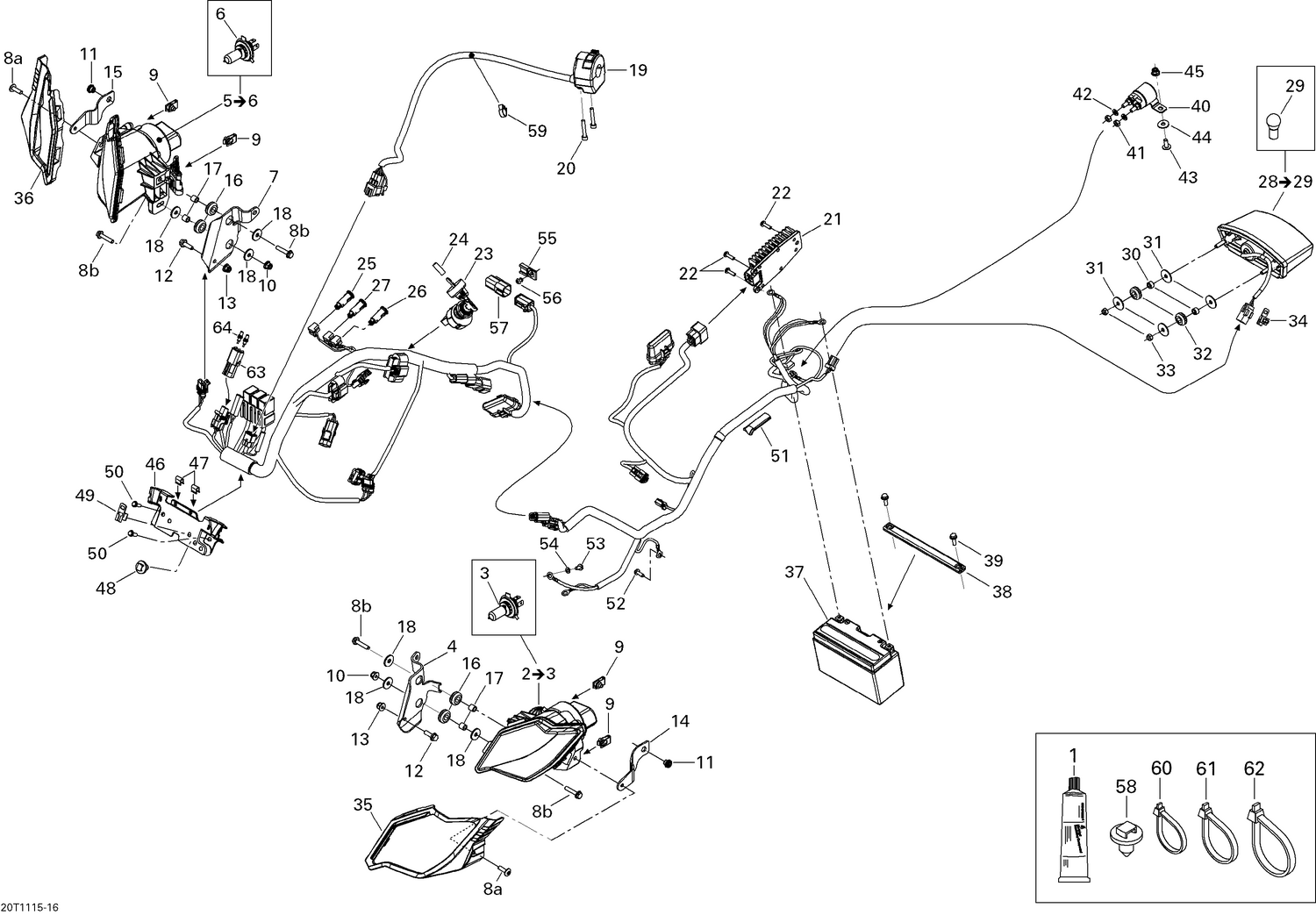

10- Electrical System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Was 293550004 Dielectric Grease, 150 g
219704453
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
LH FRONT LIGHT - Call your local BRP dealership
710001469
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Bulb, 12V 35/35W
710000871
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
LH FRONT SUPPORT - Call your local BRP dealership
710001763
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
RH FRONT LIGHT - Call your local BRP dealership
710001470
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Bulb, 12V 35/35W
710000871
|
$34.99 | ||
|
Unavailable |
|||
|
#7
RH FRONT SUPPORT - Call your local BRP dealership
710001764
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#8a
Torx Screw M6 X 20
250000128
Superseded by 250000722
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8b
Hex. Flange Screw M6 X 30, Scotch Grip
207563034
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#9
Panel Nut M6 X 1.0
250000048
Superseded by 250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Flange Elastic Nut M6
233261434
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
Threaded Insert M6 X 1.0
293450274
Superseded by 250100242
|
|||
|
Unavailable |
|||
|
#12
Hex. Flange Screw M6 X 20
207662034
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#13
Flange Elastic Nut M6
233261434
|
$4.49 | ||
|
Unavailable |
|||
|
#14
LH SUPPORT - Call your local BRP dealership
710001519
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#15
RH SUPPORT - Call your local BRP dealership
710001520
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#16
Grommet
293720053
Superseded by 709000582
|
$4.79 | ||
|
Available to order. Add to View Price |
|||
|
#17
Bushing
293900045
Superseded by 293900105
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#18
Flat Washer
224061201
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#19
Inter.Multi.Fon*Switch-M.Fuct.
710000975
Superseded by 710001762
|
$132.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW-SOCKET HD.DIN.912 - Call your local BRP dealership
205053088
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Rectifier
710000803
|
$82.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
Hex. Flange Screw, Scotch Grip
207551634
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#23
Ignition Switch With Key
710002323
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#23a
Key, Groove on Right Side
715900029
|
$26.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
Was 415110000 Polyurethane Hose 5.2 mm
219704414
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PILOT LAMP - Call your local BRP dealership
710001010
Superseded by 710002527
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PILOT LAMP - Call your local BRP dealership
710001259
Superseded by 710002526
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PILOT LAMP, NEUTRAL - Call your local BRP dealership
710001012
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
Tail Light Ass'y
710001041
|
$62.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
Bulb
520000758
|
$9.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
SPACER - Call your local BRP dealership
293900089
|
$6.29 | ||
|
Available to order. Add to View Price |
|||
|
#31
FLAT WASHER - Call your local BRP dealership
250200099
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#32
Grommet
293720053
Superseded by 709000582
|
$4.79 | ||
|
Unavailable |
|||
|
#33
Elastic Stop Nut M6
232561434
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Housing Support
515175283
|
$9.19 | ||
|
Available to order. Add to View Price |
|||
|
#35
PROTECTOR - Call your local BRP dealership
710001310
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
PROTECTOR - Call your local BRP dealership
710001311
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
Battery YUASA YT7B-BS
715500305
|
$120.95 | ||
|
Available to order. Add to View Price |
|||
|
#38
BATTERY SUPPORT - Call your local BRP dealership
710000963
|
$12.72 | ||
|
Unavailable |
|||
|
#39
Hex. Flange Screw M6 X 20
207662034
|
$2.19 | ||
|
Unavailable |
|||
|
#40
Starter Relay
710001364
Superseded by 710007777
|
$49.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
Hex. Nut M6
232061600
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
Lock Washer Helical M6
234161601
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
Torx Screw M6 X 16
250000223
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#44
Flat Washer
250200097
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#45
Flange Elastic Nut M6
233261434
|
$4.49 | ||
|
Unavailable |
|||
|
#46
Housing Support
710001074
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
Clip
414479100
|
$1.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#48
Mount Dart
293730018
Superseded by 293730040
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#49
Housing Support
515175283
|
$9.19 | ||
|
Unavailable |
|||
|
#50
Hex. Flange Screw, Scotch Grip
207551634
|
$2.09 | ||
|
Unavailable |
|||
|
#51
Neoprene Seal (1PAC=3M)
219704364
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
Hex. Flange Screw, Scotch Grip
207551634
|
$2.09 | ||
|
Unavailable |
|||
|
#53
SCREW-HEX.FLANGE DIN.6921 S.GRIP - Call your local BRP dealership
207551034
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#54
Flat Washer
234051430
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#55
Clip
270000141
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
Avex Rivet
390909200
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#57
Diagnostic Connector
278002148
Superseded by 278002704
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
Mount Dart
293730018
Superseded by 293730040
|
$1.09 | ||
|
Unavailable |
|||
|
#59
Clamp
293650082
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
Tie Wrap 142 mm
293750002
|
$1.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#61
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#62
Tie Wrap 368 mm
293750008
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#63
Female Housing, 2 Circuits
278000217
|
$9.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#64
Wire Seal
278000216
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
