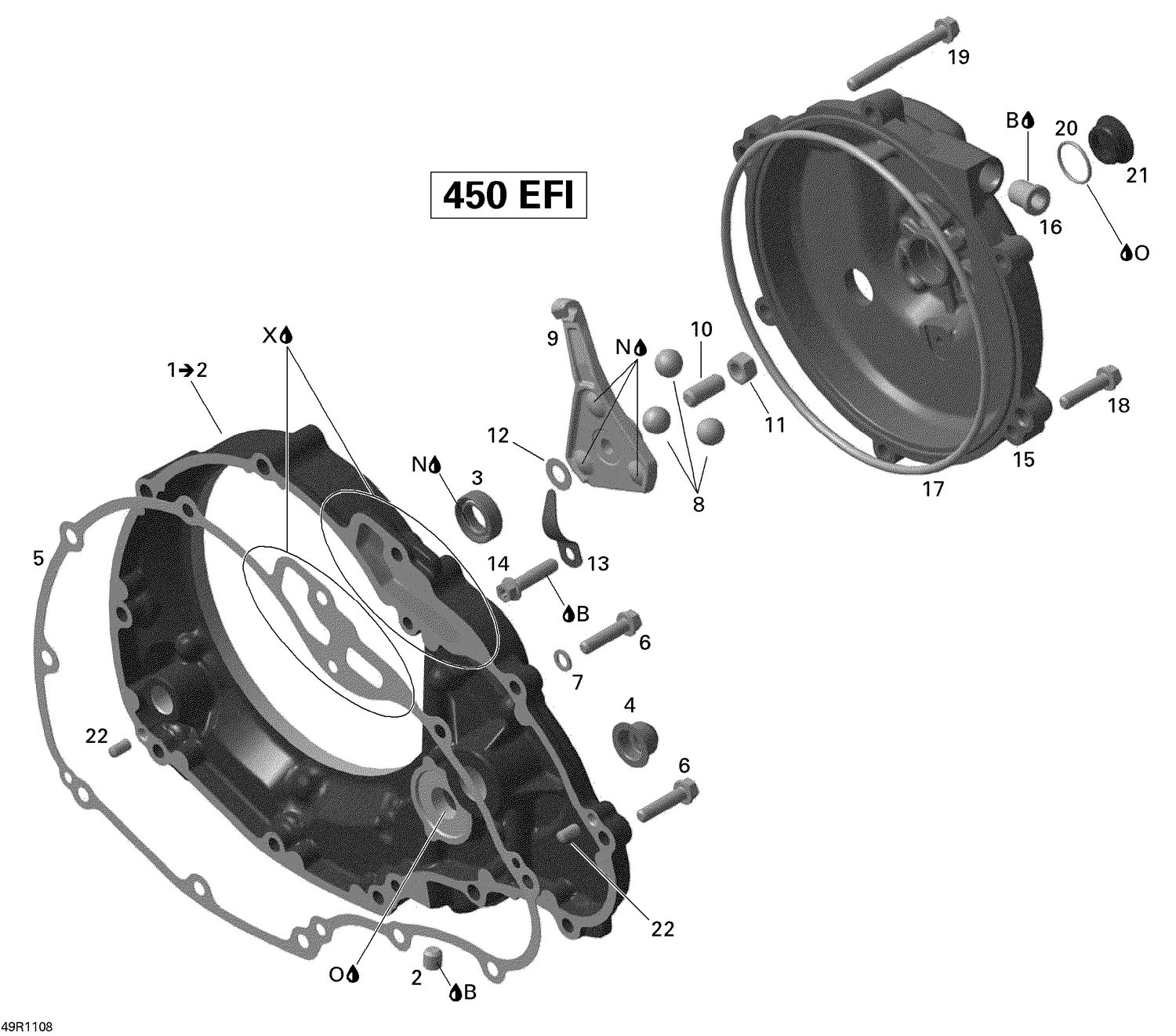

01- Clutch Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Clutch Cover
420611666
|
$211.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Plug Screw
420941611
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
Oil Seal
420250455
|
$17.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
SLEEVE - Call your local BRP dealership
420647100
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
Gasket
420430995
|
$26.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Torx Flange Screw M6 X 25
420641238
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#7
Seal Washer
420230415
|
$1.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
Ball 12 mm
420232150
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
Clutch Release Cam
420259325
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Adjustment Screw M8 X 19.5
420240310
|
$12.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
Hex. Nut M8
420942671
Superseded by 420942674
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Thrust Washer
420227945
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING - Call your local BRP dealership
420239907
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership
210251180
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#15
Clutch Release Cover
420210966
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Thread Sleeve M8
420629010
|
$18.79 | ||
|
Available to order. Add to View Price |
|||
|
#17
Gasket
420431432
|
$25.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
Torx Flange Screw M6 X 25
420641238
|
$3.39 | ||
|
Unavailable |
|||
|
#19
Torx Flange Screw M6 X 55
420440702
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-Ring
420250890
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUG SCREW M18 - Call your local BRP dealership
420241800
|
$9.89 | ||
|
Available to order. Add to View Price |
|||
|
#22
Drive Pin 5 X 10
420929650
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#B
Loctite 243, 10 ml
293800060
|
$21.49 | ||
|
Available to order. Add to View Price |
|||
|
#N
Grease, Super Lube
293550030
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#O
Not Available As Spare Part - Engine Oil
|
|||
|
Unavailable |
|||
|
#X
Était/Was 293800038 Loctite 518, 50 ml
219704456
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
