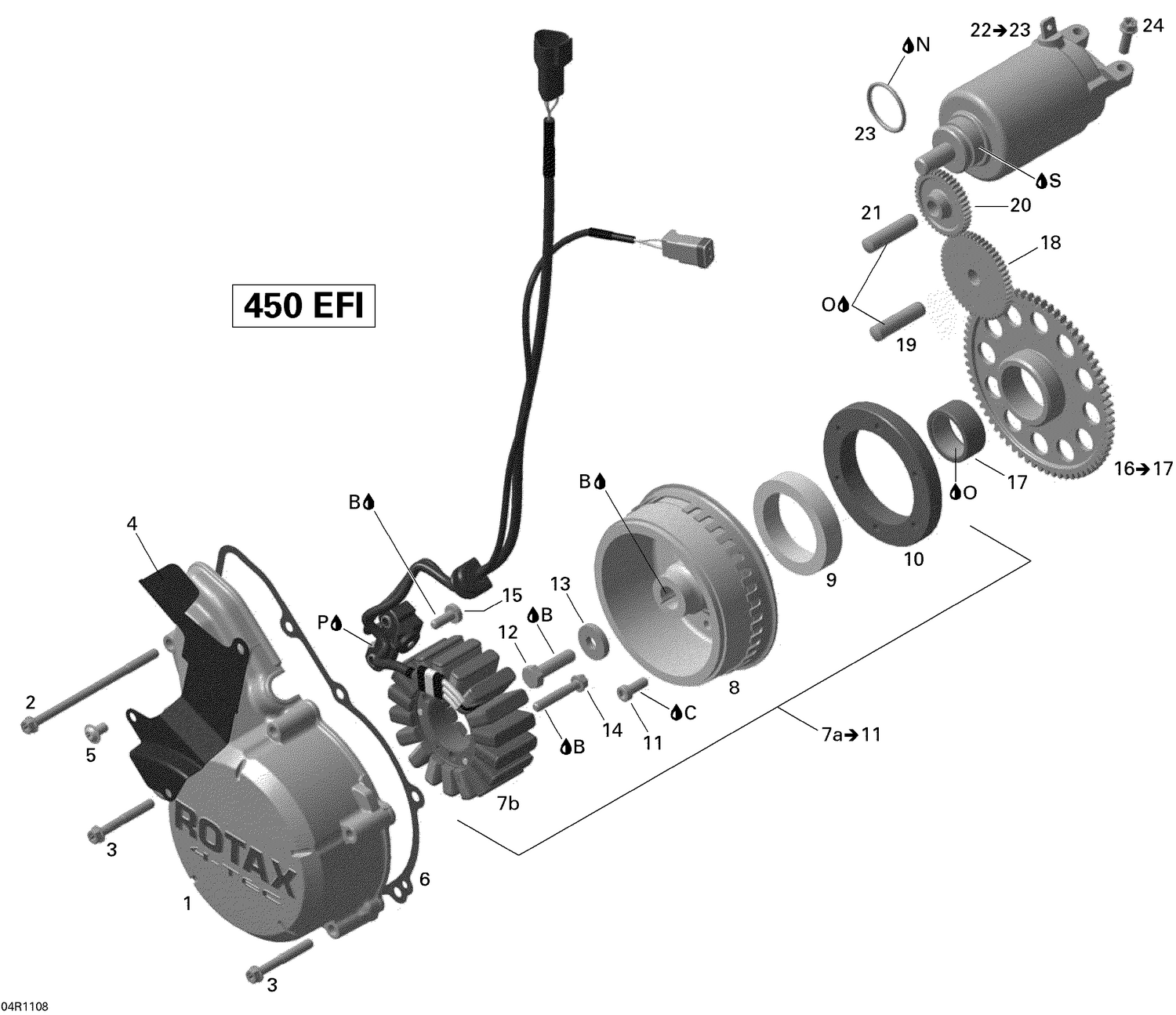

03- Magneto And Electric Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IGNITION COVER - Call your local BRP dealership
420611700
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Torx Flange Screw M6 X 105
420440612
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
Torx Flange Screw M6 X 45
420641198
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#4
Protection Shield
420651020
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
FLANGED SCREW M10 X 10 - Call your local BRP dealership
420240602
Superseded by 420240607
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
Gasket
420430980
|
$17.59 | ||
|
Available to order. Add to View Price |
|||
|
#7a
Magneto Ass'y
420685171
|
$827.49 | ||
|
Available to order. Add to View Price |
|||
|
#7b
STATOR PLATE - Call your local BRP dealership
420296323
|
$340.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Not Available As Spare Part - Flywheel
|
|||
|
Unavailable |
|||
|
#9
Sprag Clutch
420259070
|
$269.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRAG CLUTCH HOUSING - Call your local BRP dealership
420659860
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership
420640980
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW M8 X 30 - Call your local BRP dealership
420940485
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER 23 MM - Call your local BRP dealership
420626460
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#14
Torx Flange Screw M6 X 35
420641258
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
Torx Screw M6 X 16
420640321
Superseded by 420640324
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#16
STARTING GEAR ASS'Y, 68 TEETH - Call your local BRP dealership
420635155
|
$254.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Not Available As Spare Part - Bushing Needle
|
|||
|
Unavailable |
|||
|
#18
FRICTION CLUTCH - Call your local BRP dealership
420685300
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Location Pin 10 M6x50
420229301
Superseded by 420229302
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#20
INTERMEDIATE GEAR, 41 TEETH - Call your local BRP dealership
420434790
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
INTERMEDIATE GEAR SHAFT - Call your local BRP dealership
420929935
|
$6.19 | ||
|
Available to order. Add to View Price |
|||
|
#22
Electric Starter Ass'y
420685100
|
$265.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-Ring
420250140
|
$8.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
Torx Flange Screw M6 X 20
420440202
Superseded by 420440207
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#B
Loctite 243, 10 ml
293800060
|
$21.49 | ||
|
Available to order. Add to View Price |
|||
|
#C
Sealant Loctite 648
413711400
Superseded by 219703000
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#N
Grease, Super Lube
293550030
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#O
Not Available As Spare Part - Engine Oil
|
|||
|
Unavailable |
|||
|
#P
Loctite 5910, 300 ml
293800081
|
$57.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#S
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
