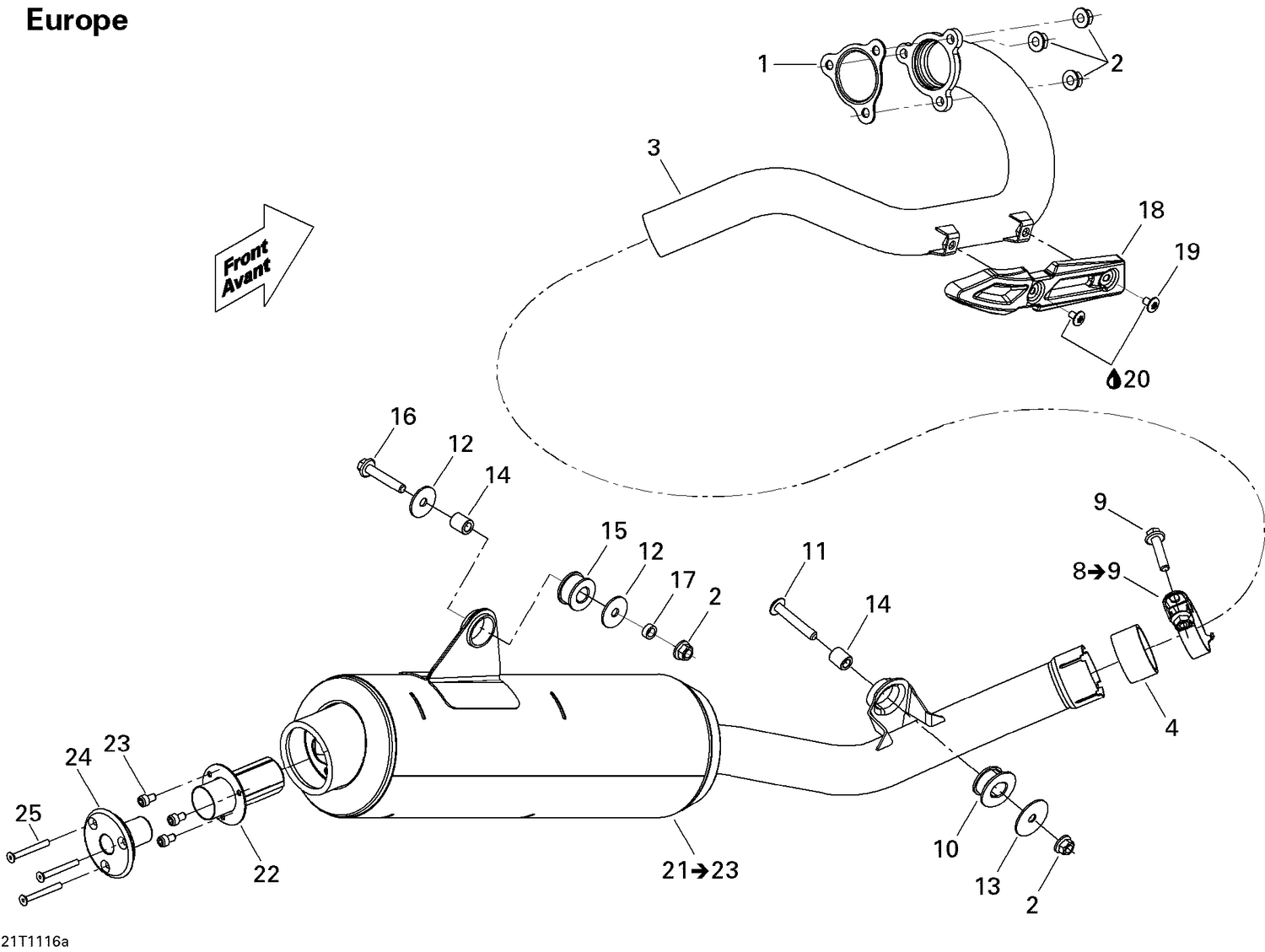

01- Exhaust System Xmx Europe Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET - Call your local BRP dealership
707600445
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
Hex. Flange Nut
233081436
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE_EXHAUST WELD - Call your local BRP dealership
707600401
|
$259.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE GASKET - Call your local BRP dealership
514054289
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR - Call your local BRP dealership
707600705
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Hex. Flange Screw M8 X 40
207684034
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#10
Rubber
707600448
|
$7.90 | ||
|
Available to order. Add to View Price |
|||
|
#11
Torx Truss Screw M8 X 50
250000298
Superseded by 250000761
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
FLAT WASHER - Call your local BRP dealership
250200073
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER - Call your local BRP dealership
707600525
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
Bushing
707600524
Superseded by 293900106
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#15
Vibration Damper
707600077
Superseded by 707603323
|
$11.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
HEX. FLANGED SCREW M8 X 45 - Call your local BRP dealership
207684534
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BUSHING - Call your local BRP dealership
293900067
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
HEAT SHIELD - Call your local BRP dealership
707600432
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Torx-truss M/s M6 X 10
250000210
Superseded by 250000995
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
Loctite 271, 10 ml
293800005
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
MUFFLER_EXHAUST - Call your local BRP dealership
707600536
|
$589.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
END-PIECE - Call your local BRP dealership
707600468
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Socket Head Screw M5 X 10
205051060
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#24
RESTRICTOR - Call your local BRP dealership
707600630
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Socket Head Screw M5 X 45
205354560
|
$3.59 | ||
|
Unavailable |
|||
