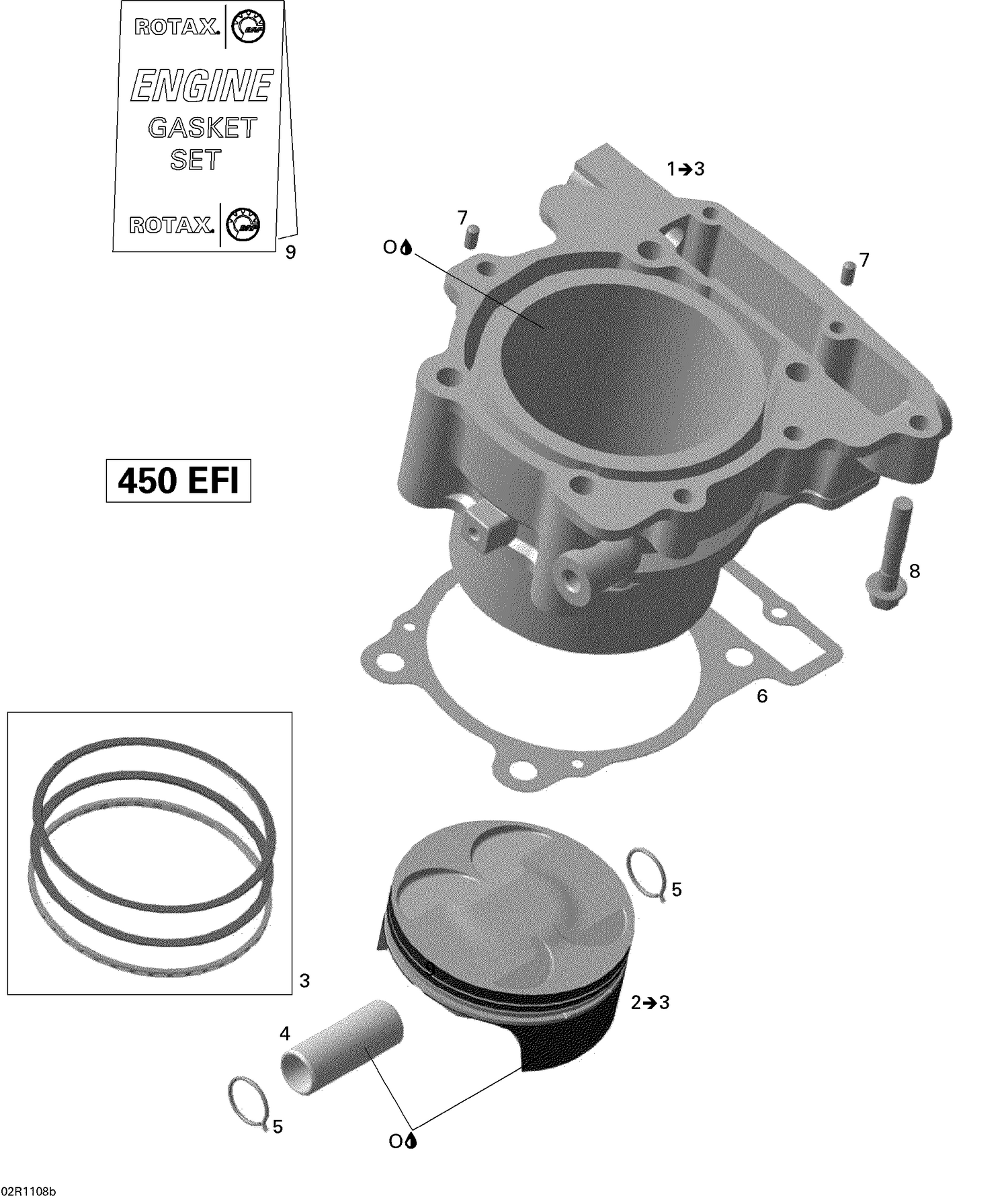

01- Cylinder And Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Cylinder And Piston Ass'y
420623575
Superseded by 420623826
|
$734.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
Piston Ass'y, 96.95 mm
420685132
|
$239.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON ASS'Y, 96.96 MM - Call your local BRP dealership
420685133
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Piston Ring Set
420685134
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Piston Pin
420216276
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Piston Circlip
420845107
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Cylinder Gasket
420650390
|
$16.86 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Drive Pin 5 X 10
420929650
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
HEX. FLANGED SCREW M8 X 45 - Call your local BRP dealership
420940637
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
Gasket Set, Engine
420685380
|
$259.49 | ||
|
Available to order. Add to View Price |
|||
|
#O
Not Available As Spare Part - Engine Oil
|
|||
|
Unavailable |
|||
