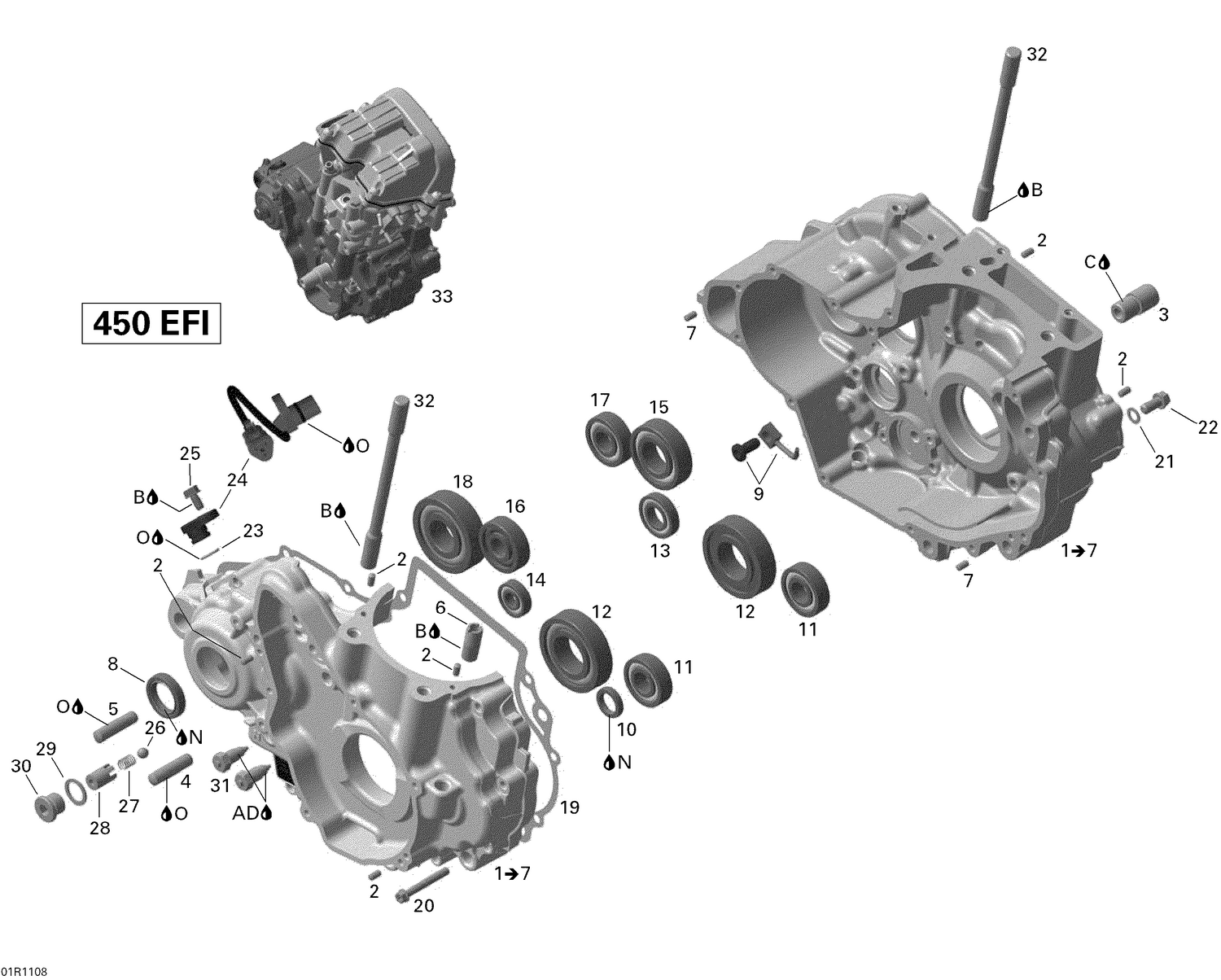

01- Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASS'Y - Call your local BRP dealership
420685086
Superseded by 420685894
|
$729.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Drive Pin 5 X 10
420929650
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BEARING PIN - Call your local BRP dealership
420229135
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Location Pin 10 M6x50
420229301
Superseded by 420229302
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
INTERMEDIATE GEAR SHAFT - Call your local BRP dealership
420929935
|
$6.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
Hose Nipple
420256332
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
DOWEL PIN - Call your local BRP dealership
420832731
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL - Call your local BRP dealership
420830602
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
Oil Spray Nozzle Ass'y
420856986
|
$43.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
Oil Seal
420250130
|
$17.59 | ||
|
Available to order. Add to View Price |
|||
|
#11
Balll Bearing
420232855
|
$30.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
Balll Bearing
420832526
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BALL BEARING - Call your local BRP dealership
420232590
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Balll Bearing
420232400
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BALL BEARING - Call your local BRP dealership
420232765
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Ball Bearing 6302
420232291
|
$30.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
Not Available As Spare Part - Ball Bearing
|
|||
|
Unavailable |
|||
|
#18
Ball Bearing
420932825
Superseded by 420932822
|
$30.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
Gasket
420431010
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Torx Flange Screw M6 X 45
420641198
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#21
Sealing Ring
420950141
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
Torx Flange Screw M8 X 16
420440852
|
$4.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
O-Ring
420230451
|
$12.11 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER - Call your local BRP dealership
420627805
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
TAPTITE SCREW M6 X 12 - Call your local BRP dealership
420240385
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#26
Ball 8.5 mm
420432680
|
$5.50 | ||
|
Available to order. Add to View Price |
|||
|
#27
COMPRESSION SPRING - Call your local BRP dealership
420238030
|
$6.19 | ||
|
Available to order. Add to View Price |
|||
|
#28
PRESSURE RETAINER VALVE HOUSING - Call your local BRP dealership
420256483
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-Ring
420430622
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
Plug Screw M16 X 1.5
420240230
Superseded by 420240234
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
Position Switch
420241856
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Stud
420241580
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
LONG BLOCK, 449 EFI ENGINE - Call your local BRP dealership
420044903
Superseded by 420044904
|
$5,769.99 | ||
|
Available to order. Add to View Price |
|||
|
#B
Loctite 243, 10 ml
293800060
|
$21.49 | ||
|
Available to order. Add to View Price |
|||
|
#C
Sealant Loctite 648
413711400
Superseded by 219703000
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#N
Grease, Super Lube
293550030
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#O
Not Available As Spare Part - Engine Oil
|
|||
|
Unavailable |
|||
|
#AD
Not Available As Spare Part - Loctite 5331
|
|||
|
Unavailable |
|||
