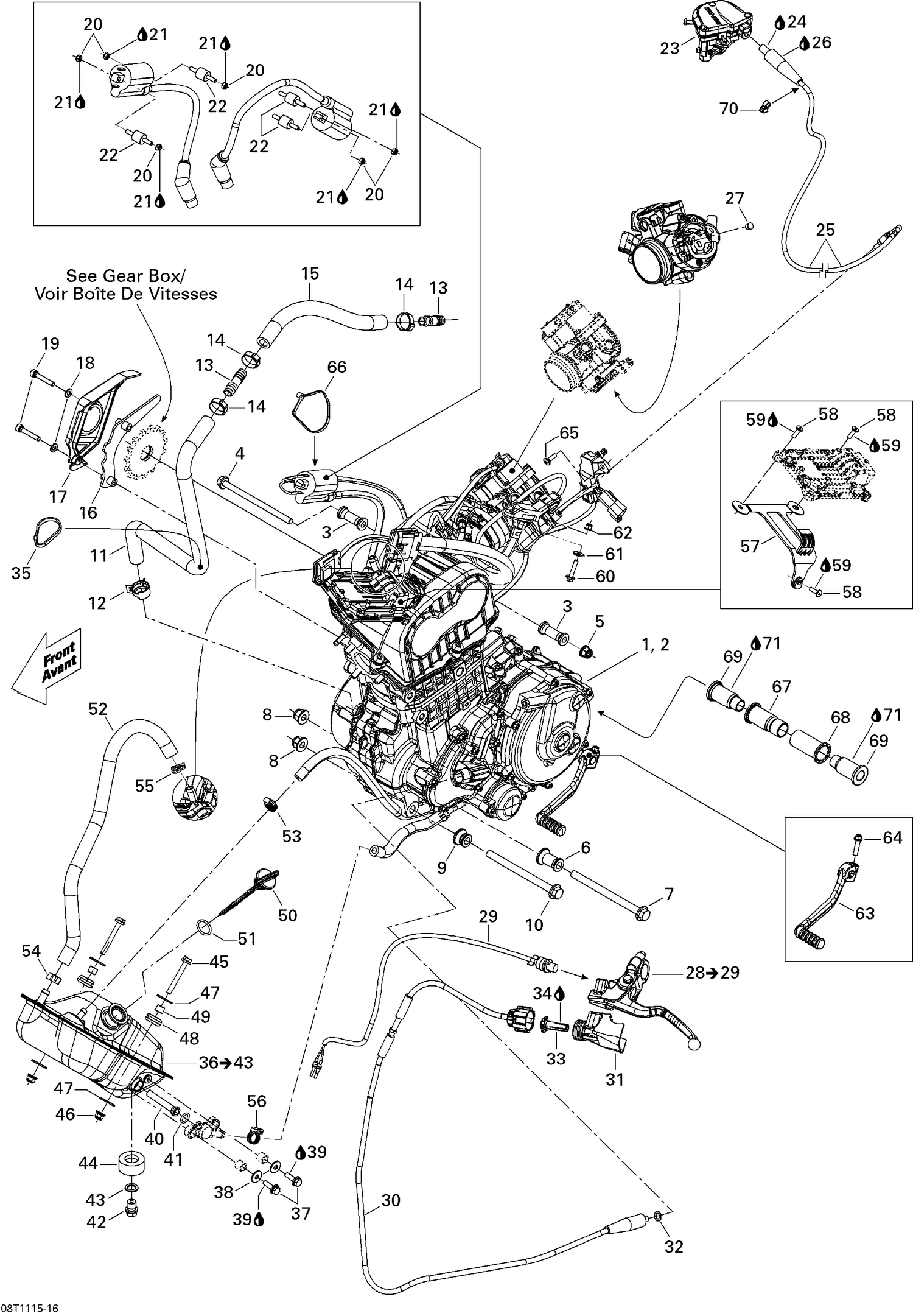

01- Engine And Engine Support Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Not Available As Spare Part - Engine Rotax 4 Stroke, 449 EFI
|
|||
|
Unavailable |
|||
|
#2
LONG BLOCK, 449 EFI ENGINE - Call your local BRP dealership
420044903
Superseded by 420044904
|
$5,769.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER - Call your local BRP dealership
293900071
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
Hex. Flange Screw M8 X 130
230683034
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
Hex. Flange Elastic Nut M8
233281434
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER - Call your local BRP dealership
293900072
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HEX. FLANGED SCREW M10 X 135 - Call your local BRP dealership
230603536
|
$6.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
Hex. Flange Elastic Nut M10
233201434
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER - Call your local BRP dealership
293900074
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HEX. FLANGED SCREW M10 X 130 - Call your local BRP dealership
230603036
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
Hose
707000502
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Norma Clamp
293650110
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#13
CONNECTOR - Call your local BRP dealership
293710119
|
$6.19 | ||
|
Available to order. Add to View Price |
|||
|
#14
Oetiker Clamp
293650012
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE 12 MM - Call your local BRP dealership
707000537
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CHAIN GUARD - Call your local BRP dealership
707000464
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPROCKET COVER - Call your local BRP dealership
707000425
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
Flat Washer M6
234061430
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
SOCKET HEAD SCREW M6 X 35, SCOTCH GRIP - Call your local BRP dealership
205563536
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#20
Flange Elastic Nut M5
233251434
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#21
Loctite 243, 10 ml
293800060
|
$21.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
Rubber Mount
707000746
|
$9.39 | ||
|
Available to order. Add to View Price |
|||
|
#23
THROTTLE HANDLE - Call your local BRP dealership
707000440
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Was 293550004 Dielectric Grease, 150 g
219704453
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
THROTTLE CABLE - Call your local BRP dealership
707000439
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CABLE LUBRICANT, 400 G - Call your local BRP dealership
293600041
|
$12.99 | ||
|
Unavailable |
|||
|
#27
Cable Guide
707000434
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
HANDLE LEVER ASS'Y - Call your local BRP dealership
707000469
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
LEVER SHIFTER SWITCH - Call your local BRP dealership
707000183
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Clutch Cable
707000422
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOOT - Call your local BRP dealership
293830122
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Washer
504082900
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW - Call your local BRP dealership
707000602
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Was 293550004 Dielectric Grease, 150 g
219704453
|
$38.99 | ||
|
Unavailable |
|||
|
#35
Tie-Rap 180 mm
414115200
|
$0.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
OIL TANK ASS'Y - Call your local BRP dealership
707000806
|
$309.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
Hex. Flange Screw M6 X 20
207662034
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#38
Flat Washer 6 mm
234062430
Superseded by 234062410
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#39
Loctite 243, 10 ml
293800060
|
$21.49 | ||
|
Unavailable |
|||
|
#40
STRAINER - Call your local BRP dealership
519000144
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
O-Ring
293300128
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#42
Plug
250500010
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
Copper Washer
250200061
|
$2.61 | ||
|
Available to order. Add to View Price |
|||
|
#44
RUBBER STOPPER - Call your local BRP dealership
705001678
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
HEX. FLANGED SCREW M6 X 50 - Call your local BRP dealership
207665034
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#46
Flange Elastic Nut M6
233261434
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
FLAT WASHER - Call your local BRP dealership
250200099
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#48
Grommet
293720062
|
$5.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#49
SPACER - Call your local BRP dealership
293900089
|
$6.29 | ||
|
Available to order. Add to View Price |
|||
|
#50
Oil Cap
707000526
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
O-Ring
709000089
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
HOSE - Call your local BRP dealership
707000544
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
Tridon Gear Clamp
293650171
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#54
Oetiker Clamp
293650011
|
$3.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#55
ROTOCLIP CLAMP - Call your local BRP dealership
293650180
|
$6.19 | ||
|
Available to order. Add to View Price |
|||
|
#56
Tridon Gear Clamp
293650171
|
$3.19 | ||
|
Unavailable |
|||
|
#57
MODULE SUPPORT - Call your local BRP dealership
710000972
|
$6.69 | ||
|
Available to order. Add to View Price |
|||
|
#58
SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership
250000295
|
$6.29 | ||
|
Available to order. Add to View Price |
|||
|
#59
Loctite 243, 10 ml
293800060
|
$21.49 | ||
|
Unavailable |
|||
|
#60
Hex. Flange Screw M5 X 25
207652544
|
$0.52 | ||
|
Available to order. Add to View Price |
|||
|
#61
Washer
391301600
|
$0.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#62
Flange Elastic Nut M5
233251434
|
$2.09 | ||
|
Unavailable |
|||
|
#63
Gearshift Pedal
420248540
|
$94.49 | ||
|
Available to order. Add to View Price |
|||
|
#64
Torx Flange Screw M6 X 25
420440232
Superseded by 420440234
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#65
Torx Screw K50 X 16
250000146
Superseded by 250000720
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#66
Tie Wrap 368 mm
293750008
|
$1.04 | ||
|
Available to order. Add to View Price |
|||
|
#67
RH SPACER - Call your local BRP dealership
707000947
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#68
SPACER - Call your local BRP dealership
707000948
Superseded by 707001749
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#69
RUBBER MOUNT - Call your local BRP dealership
707000800
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
Tie Wrap 142 mm
293750002
|
$1.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#71
Not Available As Spare Part - Lubricant Magnus CAL 8417
|
|||
|
Unavailable |
|||
