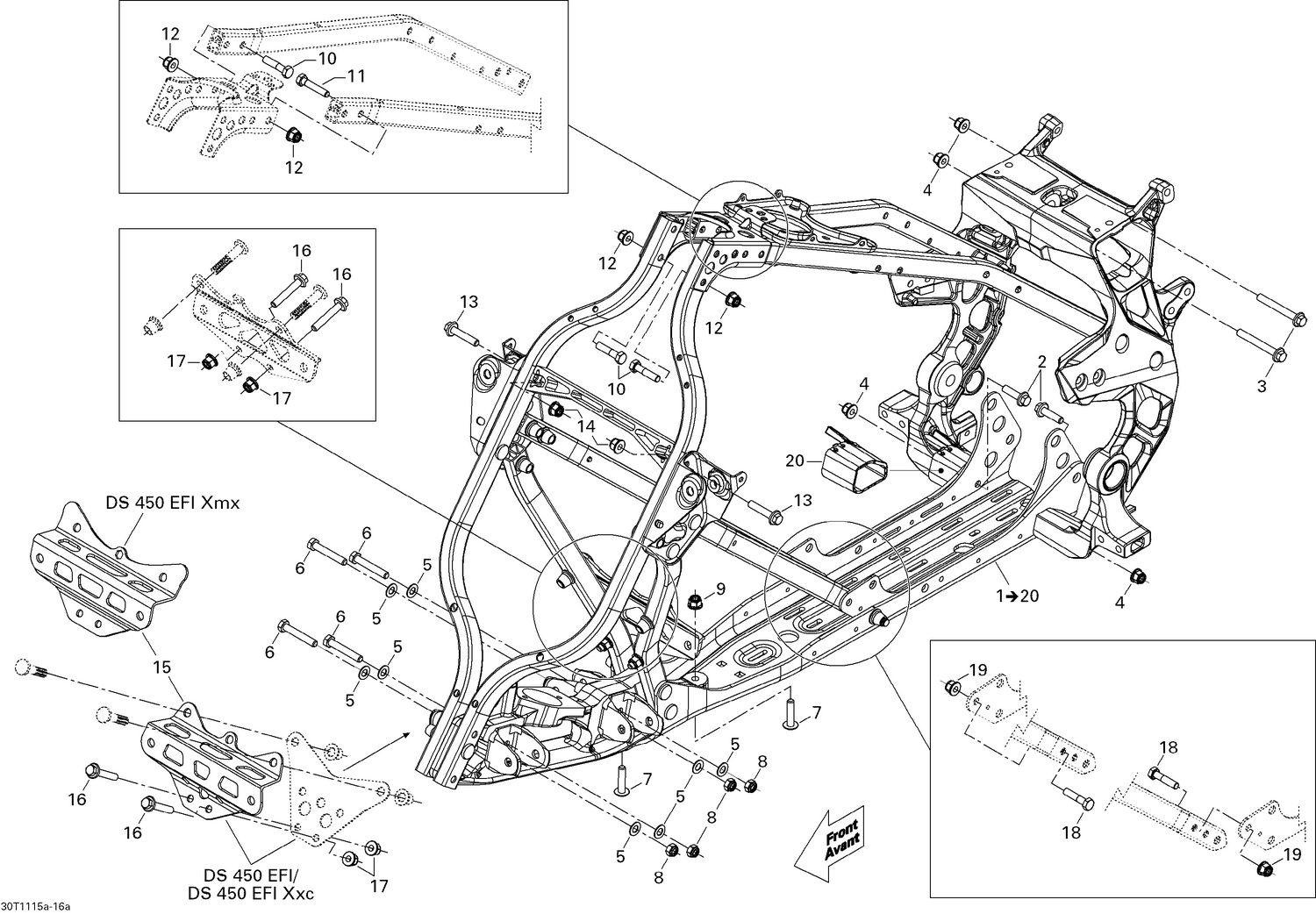

09- Frame 1 Xxc Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME ASS'Y - Call your local BRP dealership
705202170
Superseded by 705202639
|
$2,209.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Hex. Flange Screw M8 X 30
207683034
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
Hex. Flange Screw M8 x 65
207686534
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#4
Hex. Flange Elastic Nut M8
233281434
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#5
Washer
506151252
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
Not Available As Spare Part - Hex. Screw M8 X 50, Scotch Grip
|
|||
|
Unavailable |
|||
|
#7
TORX TRUSS SCREW M8 X 35 - Call your local BRP dealership
250000316
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
Not Available As Spare Part - Elastic Stop Nut M8
|
|||
|
Unavailable |
|||
|
#9
Hex. Flange Elastic Nut M8
233281434
|
$2.19 | ||
|
Unavailable |
|||
|
#10
Hex. Screw M8 X 35
207083544
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#11
Hex. Screw M8 X 40
207084044
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#12
Hex. Flange Elastic Nut M8
233281434
|
$2.19 | ||
|
Unavailable |
|||
|
#13
Hex. Flange Screw M8 X 40
207684034
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#14
Hex. Flange Elastic Nut M8
233281434
|
$2.19 | ||
|
Unavailable |
|||
|
#15
FRONT BRAKET A-ARM - Call your local BRP dealership
705202172
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
HEX. FLANGED SCREW M8 X 45 - Call your local BRP dealership
207684534
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Hex. Flange Elastic Nut M8
233281434
|
$2.19 | ||
|
Unavailable |
|||
|
#18
Hex. Screw M8 X 35
207083544
|
$1.19 | ||
|
Unavailable |
|||
|
#19
Hex. Flange Elastic Nut M8
233281434
|
$2.19 | ||
|
Unavailable |
|||
|
#20
GUARD - Call your local BRP dealership
705500931
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
