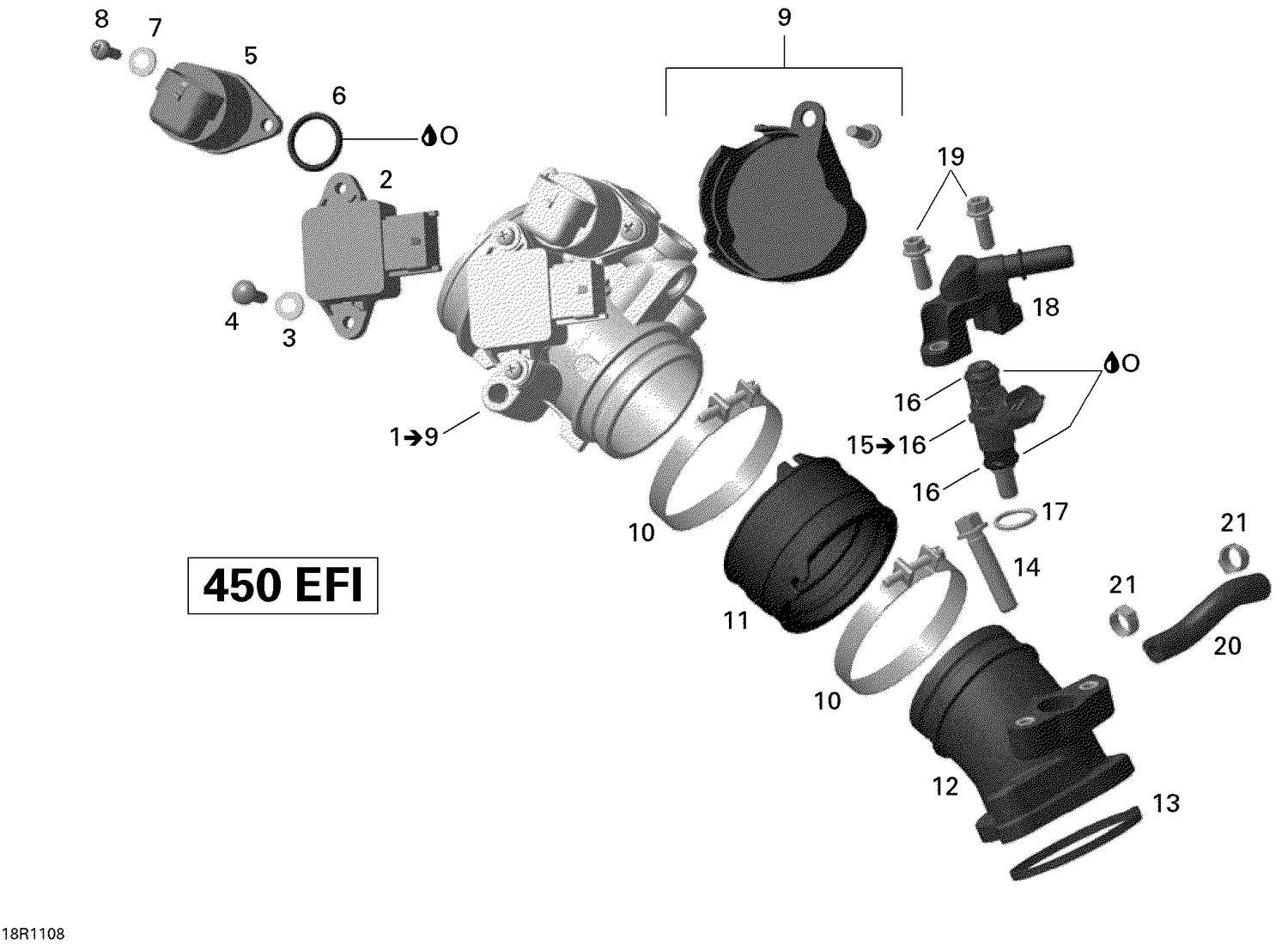

02- Air Intake Manifold And Throttle Body Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
THROTTLE BODY ASS'Y - Call your local BRP dealership
420296874
|
$579.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Position Sensor
270000251
Superseded by 420866120
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Flat Washer 4 mm, Stainless
234042600
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
Phillips Screw M4 X 16
208641660
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#5
Idle Air Control Valve
420963057
Superseded by 420665941
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-Ring
420631780
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
Snap Ring
420845710
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#8
Binding Head Screw M5 X 16
420440911
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
Cover Kit
420281540
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Clamp
420251480
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
Intake Adaptor
420267480
|
$15.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
Elbow Intake Adaptor
420267510
|
$43.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET - Call your local BRP dealership
420431230
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#14
Torx Flange Screw M8 X 35
420641188
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#15
Injection Valve
420874402
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-Ring
420631220
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-Ring
420631295
Superseded by 420631296
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
|
#18
Fuel Rail
420874900
Superseded by 420874901
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Torx Flange Screw M6 X 16
420641048
|
$2.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
HOSE 88 MM, MAPS SENSOR - Call your local BRP dealership
420260420
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
Gear Clamp
420851468
|
$6.09 | ||
|
Unavailable |
|||
|
#O
Not Available As Spare Part - Engine Oil
|
|||
|
Unavailable |
|||
