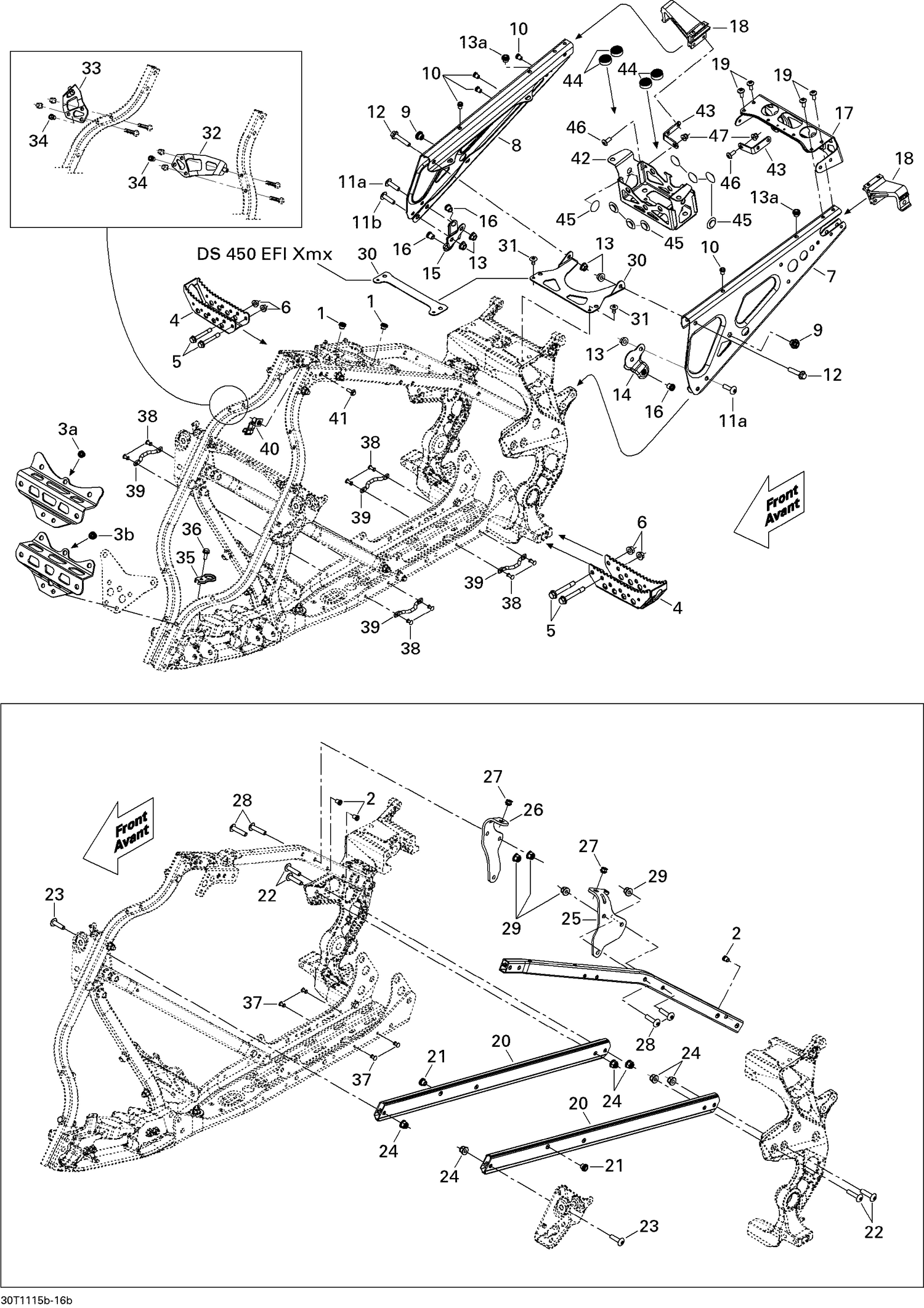

09- Frame 2 Xmx Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Threaded Insert M6 X 1.0
293450274
Superseded by 250100242
|
|||
|
Unavailable |
|||
|
#2
Insert M5 X 0.8
293450268
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#3a
Threaded Insert M6 X 1.0
293450232
Superseded by 250100242
|
|||
|
Unavailable |
|||
|
#3b
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#4
FOOTREST - Call your local BRP dealership
705201044
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HEX. FLANGED SCREW M8 X 60, SCOTCH GRIP - Call your local BRP dealership
207586034
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Hex. Flange Nut M8
233181434
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#7
EXTENTION - Call your local BRP dealership
705202470
Superseded by 705202547
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
EXTENTION - Call your local BRP dealership
705202471
Superseded by 705202548
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Threaded Insert M6 X 1.0
293450274
Superseded by 250100242
|
|||
|
Unavailable |
|||
|
#10
Insert M5 X 0.8
293450268
|
$2.09 | ||
|
Unavailable |
|||
|
#11a
Hex Torx Truss M8 X30
250000197
Superseded by 250000745
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#11b
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#12
Hex. Flange Screw M8 X 40
207684034
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#13
Hex. Flange Nut M8
233181434
|
$2.19 | ||
|
Unavailable |
|||
|
#13a
Insert
293450275
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
LH Bracket
707600399
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
RH Bracket
705201485
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Insert
293450275
|
$12.99 | ||
|
Unavailable |
|||
|
#17
PLATE SUPPORT - Call your local BRP dealership
705201898
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
REAR FENDER SUPPORT - Call your local BRP dealership
705002094
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Torx Screw M6 X 16
250000223
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#20
Side Member
705201059
Superseded by 705201950
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Insert
293450275
|
$12.99 | ||
|
Unavailable |
|||
|
#22
Torx Truss Screw M8 X 35
250000256
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#23
Hex Torx Truss M8 X30
250000197
Superseded by 250000745
|
$3.29 | ||
|
Unavailable |
|||
|
#24
Hex. Flange Elastic Nut M8
233281434
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#25
LH ENGINE SUPPORT - Call your local BRP dealership
705201380
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
RH ENGINE SUPPORT - Call your local BRP dealership
705201381
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Insert
293450278
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
Torx Truss Screw M8 X 35
250000256
|
$1.19 | ||
|
Unavailable |
|||
|
#29
Hex. Flange Elastic Nut M8
233281434
|
$2.19 | ||
|
Unavailable |
|||
|
#30
REAR BRACE - Call your local BRP dealership
705201406
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Pop Rivet 3/16"
293150008
|
$0.52 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
LH BODY ATTACHMENT PLATE - Call your local BRP dealership
705201461
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
RH BODY ATTACHMENT PLATE - Call your local BRP dealership
705201462
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
Insert M5 X 0.8
293450268
|
$2.09 | ||
|
Unavailable |
|||
|
#35
RADIATOR GUIDE - Call your local BRP dealership
705201550
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#36
Hex. Flange Screw M6 X 16, Scotch Grip
207561634
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#37
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#38
Pop Rivet 3/16”
390407200
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#39
NET ATTACHMENT - Call your local BRP dealership
705002639
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
Cable Support
707000561
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
Hex. Plastic Screw M4.8 X 16
243141630
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#42
SUPPORT - Call your local BRP dealership
705202456
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BRACKET - Call your local BRP dealership
707000864
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
Rubber Stopper
708000506
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#45
Rubber Stopper
708000862
|
$8.39 | ||
|
Available to order. Add to View Price |
|||
|
#46
Torx Screw M6 X 16
250000223
|
$2.19 | ||
|
Unavailable |
|||
|
#47
Flange Elastic Nut M6
233261434
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
