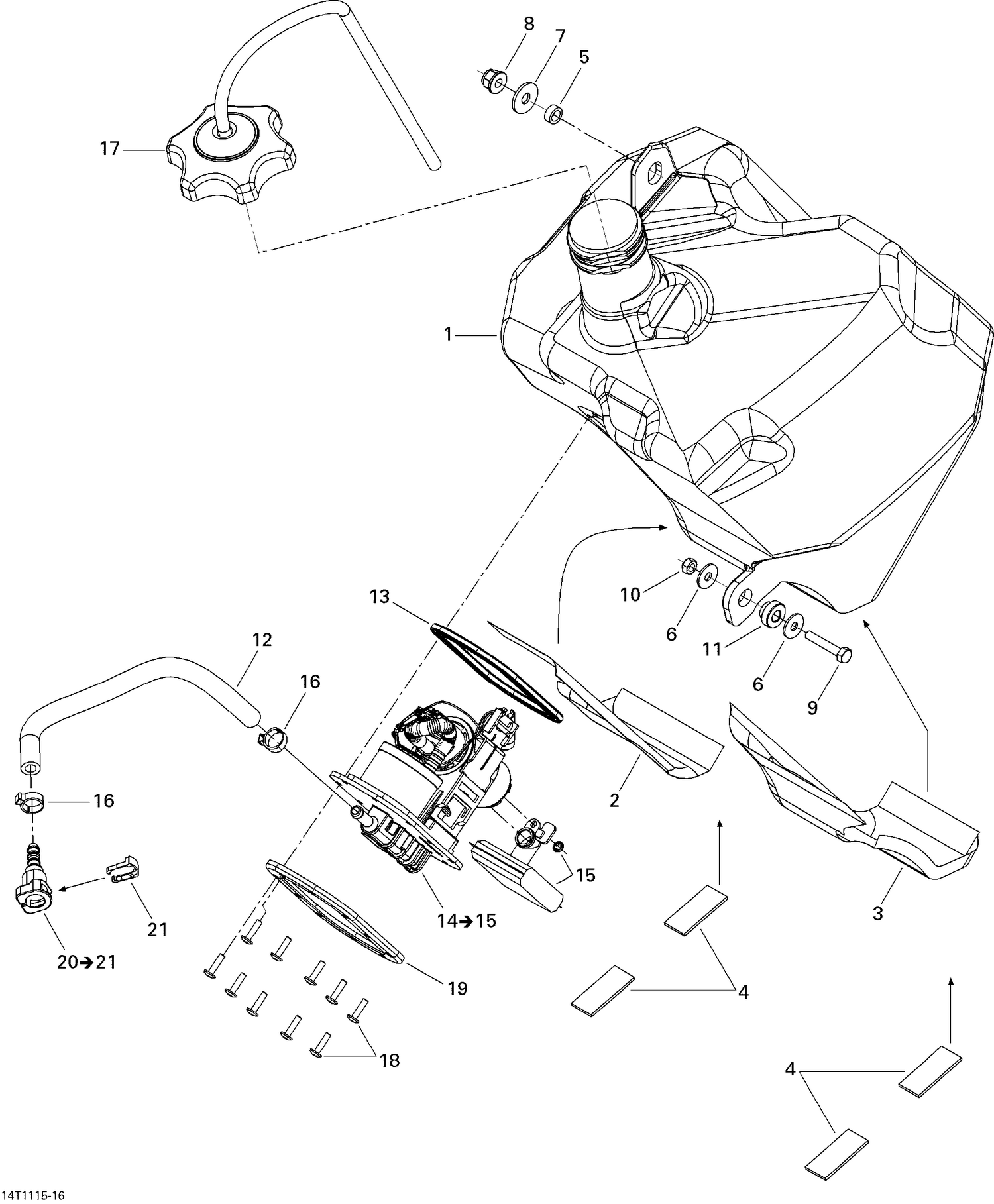

02- Fuel System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK - Call your local BRP dealership
709000237
|
$251.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
REFLECTIVE SHEET - Call your local BRP dealership
709000242
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#3
REFLECTIVE SHEET - Call your local BRP dealership
709000243
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#4
Rubber Pad
274001010
Superseded by 709000401
|
$9.79 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSHING - Call your local BRP dealership
293900067
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Flat Washer
250200082
|
$0.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Flat Washer M8
234082430
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#8
Hex. Flange Elastic Nut M8
233281434
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#9
Hex. Flange Screw M6 X 35
207063544
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#10
Elastic Stop Nut M6
232561434
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSHING - Call your local BRP dealership
293900088
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
Was 709000163 Fuel Line
219704440
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Joint Etanche *Gasket
709000109
Superseded by 709000540
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Fuel Pump
709000251
Superseded by 709000386
|
$361.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Filter Kit
715900063
|
|||
|
Unavailable |
|||
|
#16
Crimp Clamp, 15.3-706R
293650047
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
FUEL CAP - Call your local BRP dealership
709000117
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Torx Screw M4 X 16
250000242
Superseded by 250000750
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#19
Pump Ring
709000170
|
$17.83 | ||
|
Available to order. Add to View Price |
|||
|
#20
Female Quick Fitting Ass'y
709000125
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Locking Clip
513033135
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
