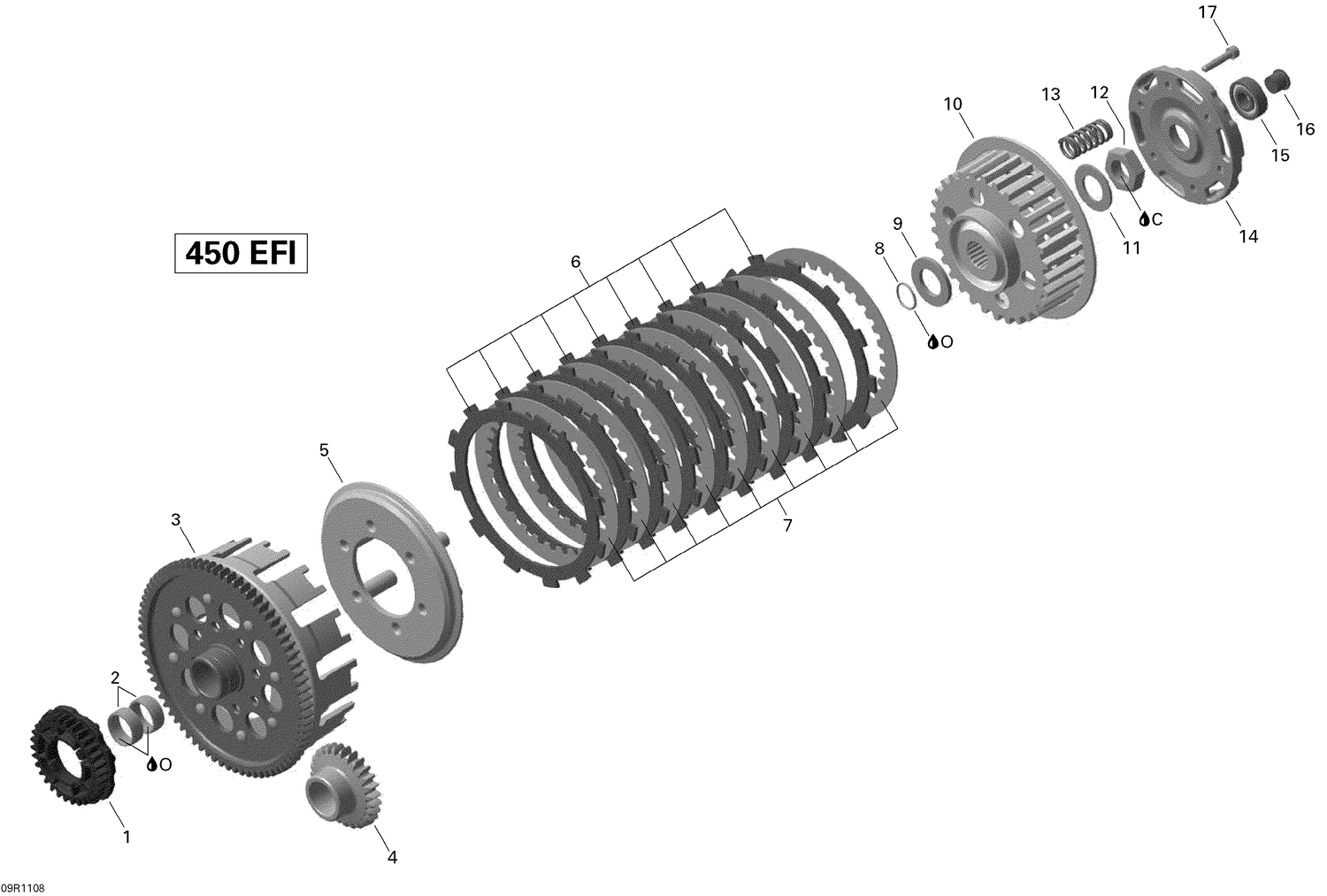

05- Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL PUMP GEAR - Call your local BRP dealership
420434710
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Needle Bearing
420232742
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Clutch Drum
420259855
|
$399.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
DRIVE GEAR, 27 TEETH - Call your local BRP dealership
420434680
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Inner Plate
420259889
|
$61.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Friction Plate 2.6 mm
420259904
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Clutch Plate
420259912
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-Ring
420250890
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#9
THRUST WASHER - Call your local BRP dealership
420227601
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
Clutch Hub
703500742
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Spring Washer
420245680
|
$9.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
HEX. NUT M18 - Call your local BRP dealership
420942220
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
Clutch Spring
420239625
|
$8.68 | ||
|
Available to order. Add to View Price |
|||
|
#14
Retaining Plate
420259131
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Balll Bearing
420232400
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
THRUST HUB - Call your local BRP dealership
420259141
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
Socket Head Screw M5 X 25
420240186
Superseded by 420240187
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#C
Sealant Loctite 648
413711400
Superseded by 219703000
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#O
Not Available As Spare Part - Engine Oil
|
|||
|
Unavailable |
|||
