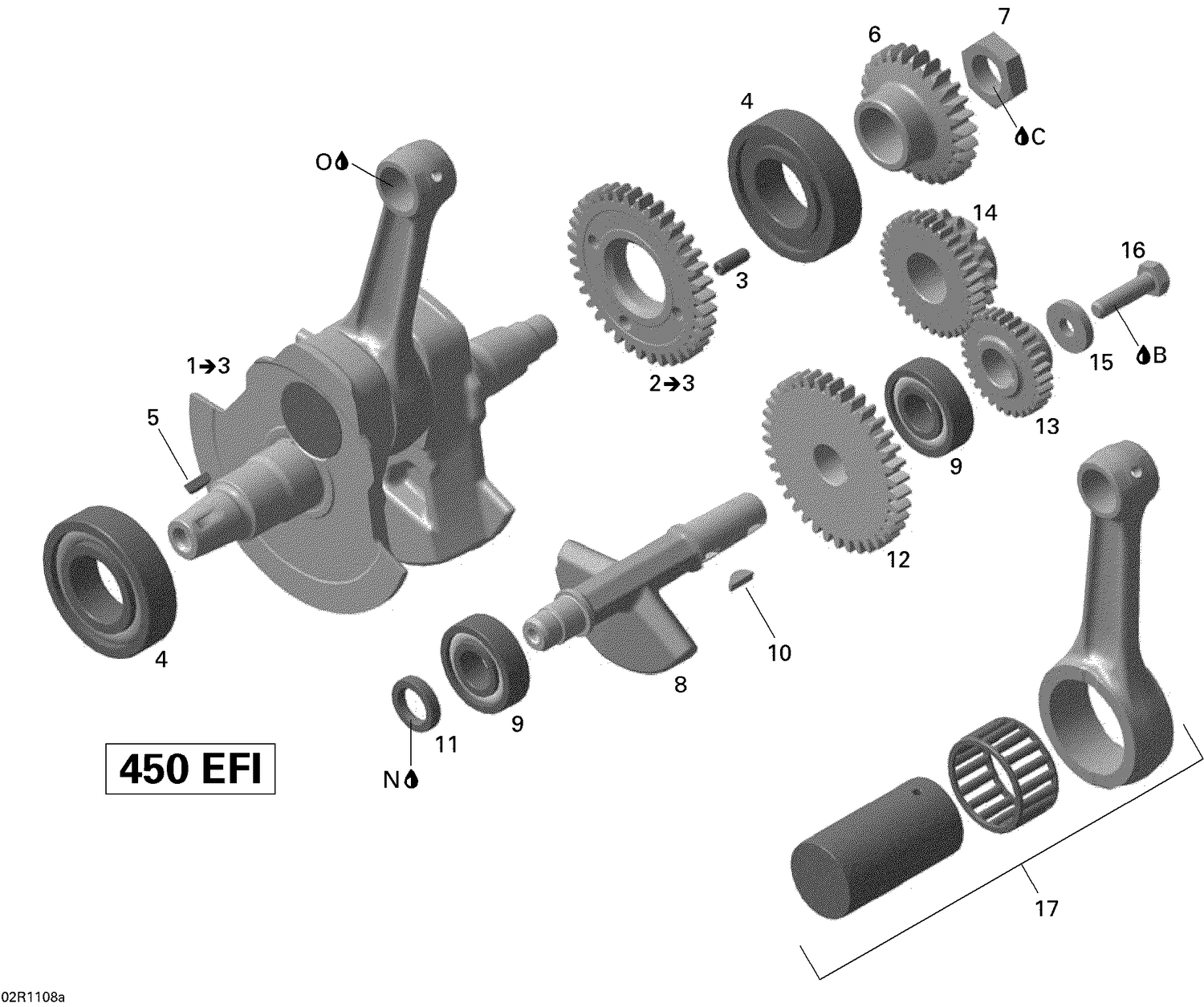

01- Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Crankshaft Ass.
420685091
Superseded by 420685093
|
$691.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Balance Gear, 37 Teeth
420434697
|
$186.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DOWEL PIN 6 X 16 - Call your local BRP dealership
420229490
|
$1.99 | ||
|
Unavailable |
|||
|
#4
Balll Bearing
420832526
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Woodruff Key 4 X 5
420246570
|
$3.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
DRIVE GEAR, 27 TEETH - Call your local BRP dealership
420434680
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HEX. NUT M18 - Call your local BRP dealership
420942220
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BALANCE SHAFT - Call your local BRP dealership
420620800
|
$259.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Balll Bearing
420232855
|
$30.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
Woodruff Key 4 X 5
420246570
|
$3.49 | ||
|
Unavailable |
|||
|
#11
Oil Seal
420250130
|
$17.59 | ||
|
Available to order. Add to View Price |
|||
|
#12
Balance Gear, 37 Teeth
420434690
|
$153.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CONTROL GEAR, 29 TEETH - Call your local BRP dealership
420434721
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
INTERMEDIATE GEAR - Call your local BRP dealership
420434705
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER 23 MM - Call your local BRP dealership
420626460
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW M8 X 30 - Call your local BRP dealership
420940485
|
$4.39 | ||
|
Available to order. Add to View Price |
|||
|
#17
Not Available As Spare Part - Rod Repair Kit
|
|||
|
Unavailable |
|||
|
#B
Loctite 243, 10 ml
293800060
|
$21.49 | ||
|
Available to order. Add to View Price |
|||
|
#C
Sealant Loctite 648
413711400
Superseded by 219703000
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#N
Grease, Super Lube
293550030
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#O
Not Available As Spare Part - Engine Oil
|
|||
|
Unavailable |
|||
