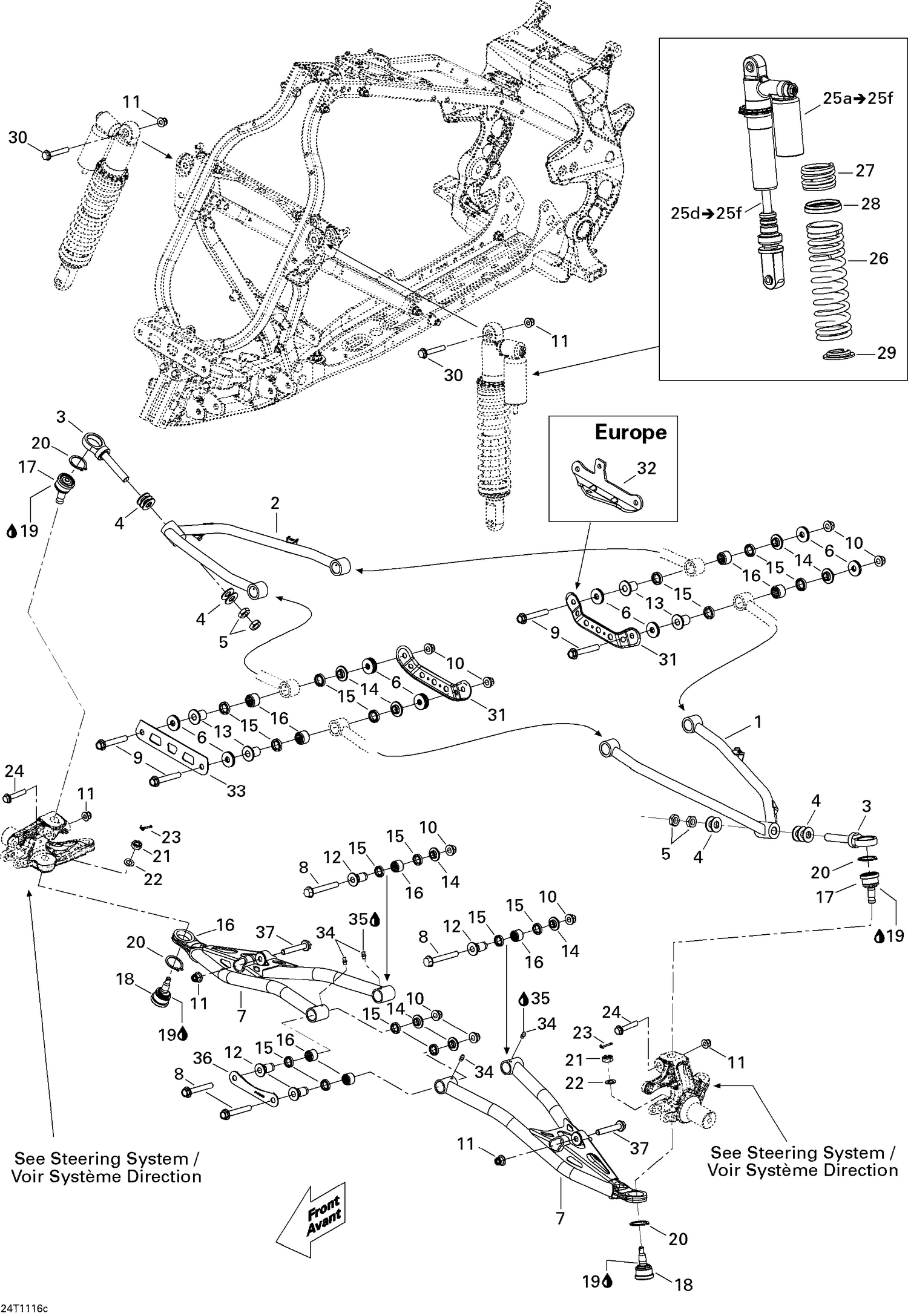

07- Front Suspension Xmx Europe Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LH UPPER ARM - Call your local BRP dealership
706200915
Superseded by 706201128
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RH UPPER ARM - Call your local BRP dealership
706200930
Superseded by 706201134
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
JOINT SUPPORT - Call your local BRP dealership
706200892
Superseded by 706201390
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
FLAT WASHER - Call your local BRP dealership
250200079
|
$1.65 | ||
|
Unavailable |
|||
|
#5
Hex. Jam Nut M14
232170411
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Flat Washer M10
250200014
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
LOWER ARM - Call your local BRP dealership
706200904
Superseded by 706201398
|
$184.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership
207607036
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
HEX. FLANGED SCREW M10 X 80 - Call your local BRP dealership
207608044
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#10
Hex. Flange Elastic Nut M10
233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
Hex. Flange Elastic Nut M10
233201434
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
INNER BUSHING - Call your local BRP dealership
706200890
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Inner Bushing
706200888
|
$17.08 | ||
|
Available to order. Add to View Price |
|||
|
#14
INNER BUSHING - Call your local BRP dealership
706200889
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL - Call your local BRP dealership
293200120
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#16
Needle Bearing
293350064
|
$23.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
UPPER BALL JOINT - Call your local BRP dealership
706200462
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
LOWER BALL JOINT - Call your local BRP dealership
706200461
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Loctite 609, 10 ml
413703100
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Circlip 32 mm
293370009
|
$1.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CASTLE NUT - Call your local BRP dealership
250100094
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#22
Flat Washer
250200084
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
Cotter Pin
250400035
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#24
Hex. Flange Screw
207605534
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#25a
FRONT SHOCK - Call your local BRP dealership
706200765
|
$368.99 | ||
|
Available to order. Add to View Price |
|||
|
#25b
Spring Stopper
706000567
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#25c
SHOCK OIL, 1 LITER - Call your local BRP dealership
293600136
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#25d
Front Piston And Rod Kit
715500330
|
|||
|
Available to order. Add to View Price |
|||
|
#25e
Circlip
715900074
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#25f
Circlip En C
715900075
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#26
Black-Yellow Spring
706200833
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Black-Yellow Spring
706200876
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Spring Spacer
503191281
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPRING STOPPER - Call your local BRP dealership
706000528
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
HEX. FLANGED SCREW M10 X 65 - Call your local BRP dealership
207606534
|
$3.33 | ||
|
Unavailable |
|||
|
#31
Not Available As Spare Parts
XXX
|
|||
|
Unavailable |
|||
|
#32
SUPPORT - Call your local BRP dealership
709400685
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Plate
706200759
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
Grease Fitting
250000315
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Synthetic Grease, 400 G
293550010
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
Front Suspension Lower Plate
706200722
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
Hex. Flange Screw
207605534
|
$2.19 | ||
|
Unavailable |
|||
