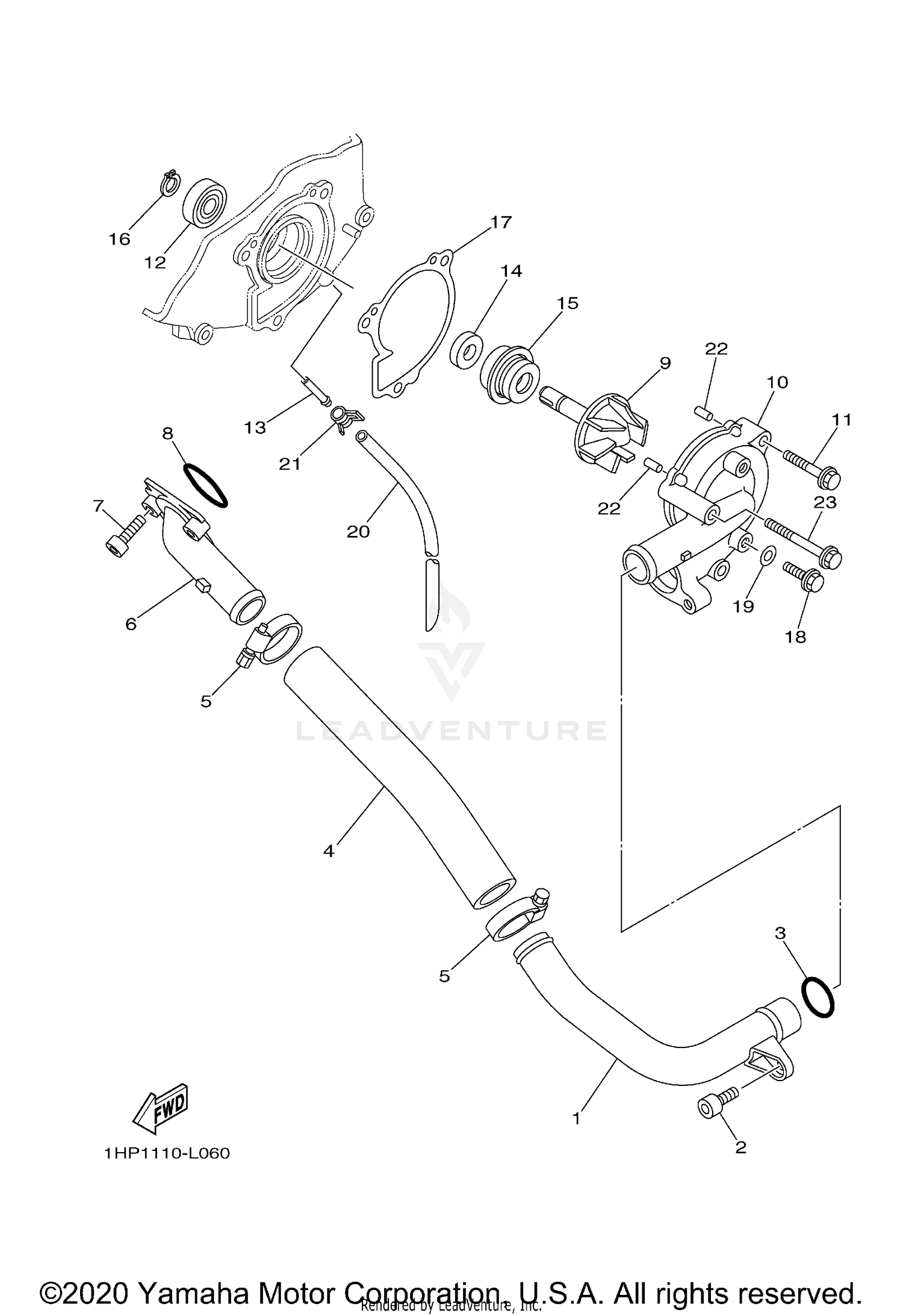

Water Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE 1
3B4-12481-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
91312-06012-00
Superseded by 91317-06012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-21190-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
HOSE 2
3B4-12577-01-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE CLAMP ASSY
90450-32015-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT 1
5KM-12469-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEXAGON SOCKET HEAD
91312-06020-00
Superseded by 91314-06020-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
O-RING
93210-33786-00
Superseded by 93210-33006-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
IMPELLER SHAFT ASSY
3B4-12450-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, HOUSING
3B4-12422-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95022-06030-00
|
$1.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BEARING
93306-00006-00
Superseded by 93306-00004-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
. .PIPE, DRAIN
5GH-1243K-00-00
Superseded by B4D-E243K-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL, S-TYPE
93101-10090-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SEAL, MECHANICAL
11H-12438-10-00
|
$68.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CIRCLIP
99009-10400-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
GASKET, HOUSING COVER 2
3B4-12428-00-00
|
$12.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FLANGE
95022-06010-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET
90430-06014-00
|
$8.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
HOSE (L310)
90445-07340-00
Superseded by 90445-072G8-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP
90467-07093-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, DOWEL
93604-10011-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, FLANGE
95022-06050-00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
