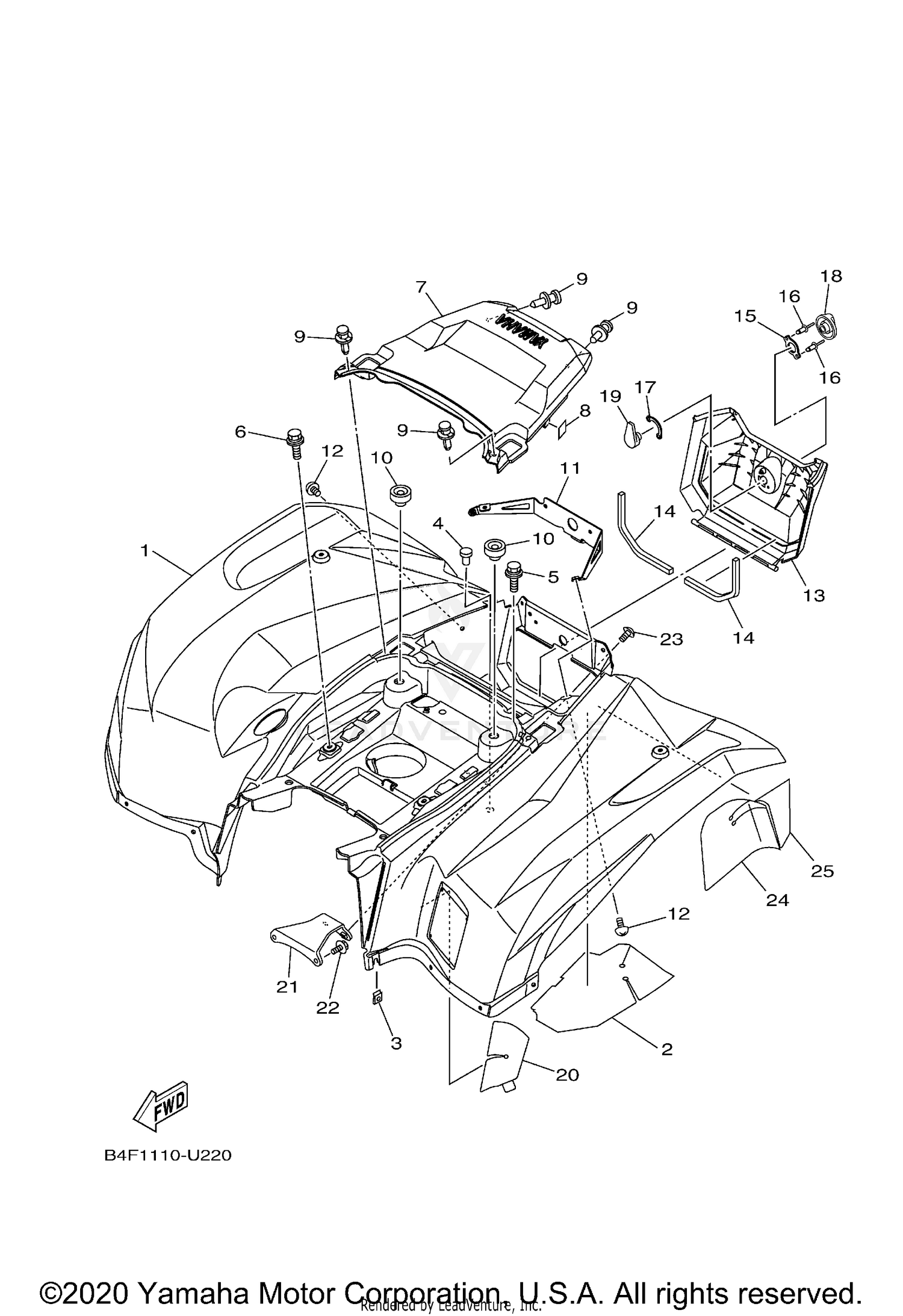

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR FENDER ASSY
BDE-F1600-50-00
|
$245.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PROTECTOR
2UD-21652-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
PLUG, BLIND
90605-502U1-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, WITH WASHER
90119-06152-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, WITH WASHER
90119-06152-00
|
$3.55 | ||
|
Unavailable |
|||
|
#7
COVER, REAR FENDER
2UD-F1651-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL
B4F-F1669-01-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
RIVET
90269-07010-00
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
GROMMET
90480-16807-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, COVER
2UD-F139T-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, BINDING
90154-05021-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
LID
2UD-F160F-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL, 2
2UD-F16A2-00-00
Superseded by 2UD-F16A2-01-00
|
$2.40 | ||
|
Unavailable |
|||
|
#15
WASHER, SPECIAL
1XD-F1515-00-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
RIVET, BLIND
90267-24143-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPECIAL 2
1XD-F1516-00-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
LOCK 1
1XD-2837G-00-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#19
LOCK 2
1XD-2837H-00-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAL
B16-F1669-01-00
Superseded by B16-F1669-02-00
|
$3.80 | ||
|
Unavailable |
|||
|
#21
STAY, FENDER 1
2UD-F1613-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95812-06010-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEX. SOCKET BUTTON
90111-06814-00
|
$2.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
SEAL, 3
2UD-216A3-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAL, 4
2UD-216A4-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
