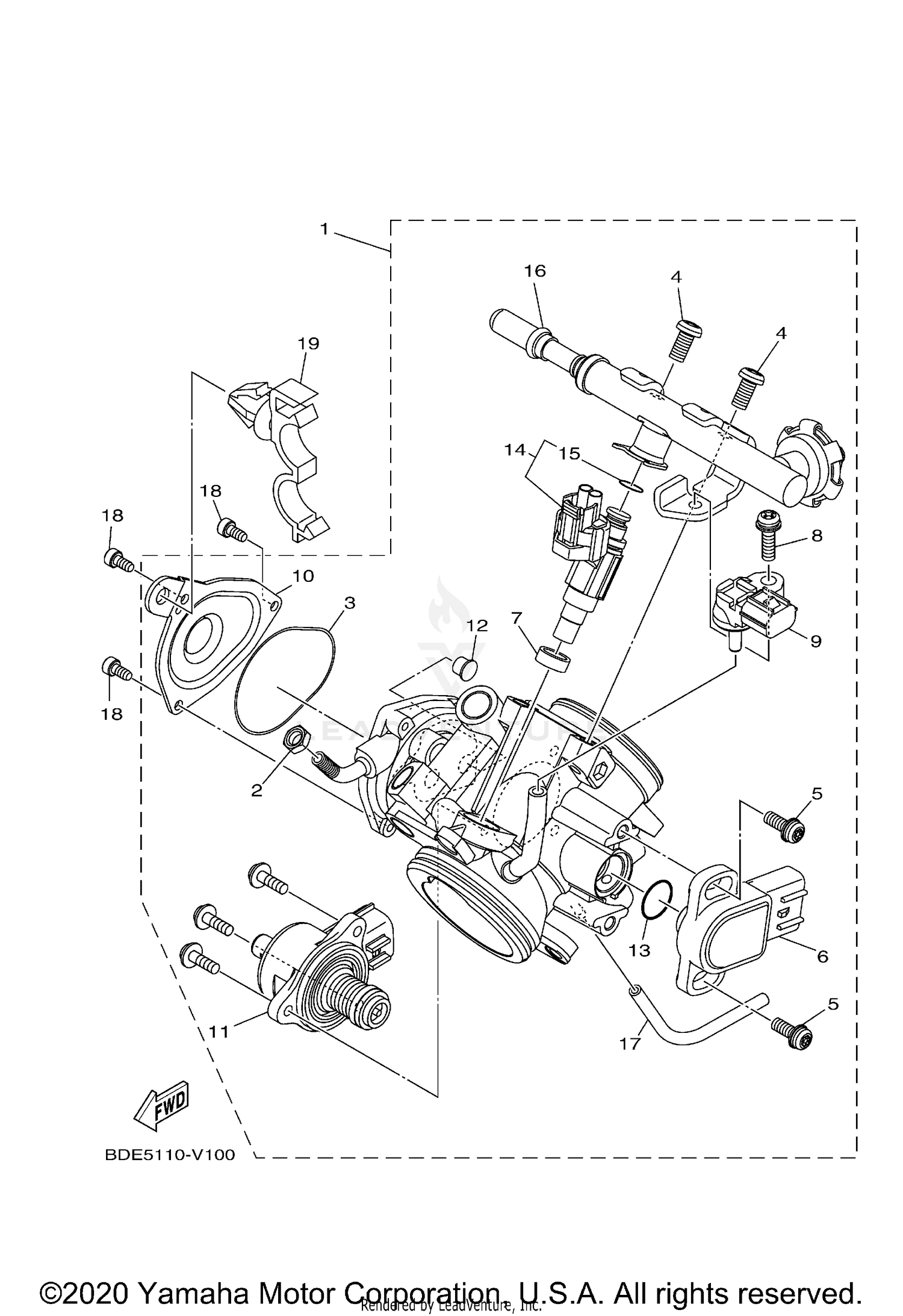

Throttle Body Assy 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
THROTTLE BODY ASSY
B4F-13750-00-00
Superseded by B4F-13750-02-00
|
$814.99 | ||
|
Unavailable |
|||
|
#2
NUT, CABLE ADJUSTING
1S3-14161-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
5LP-14147-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW,PAN
92502-06012-00
Superseded by 98517-06012-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
8CC-14216-10-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
THROTTLE SENSOR AS
3B4-85885-00-00
Superseded by 3B4-85885-01-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER, INJECTOR
8FP-13556-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
2C0-14216-00-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
SENSOR, PRESSURE
5S7-82380-00-00
|
$203.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER 1
B16-14293-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
VALVE, CONTROL
63P-1312A-01-00
Superseded by 63P-1312A-02-00
|
$435.65 | ||
|
Unavailable |
|||
|
#12
GUIDE, CABLE END
1UY-14155-00-00
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
O-RING
5YP-14562-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
INJECTOR
1XD-13761-00-00
|
$177.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
1XD-14147-00-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
DELIVERY PIPE ASSY 1
B16-13160-00-00
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE, AIR
1XD-13543-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEXAGON SOCKET HEAD
91312-04008-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
90464-20010-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
