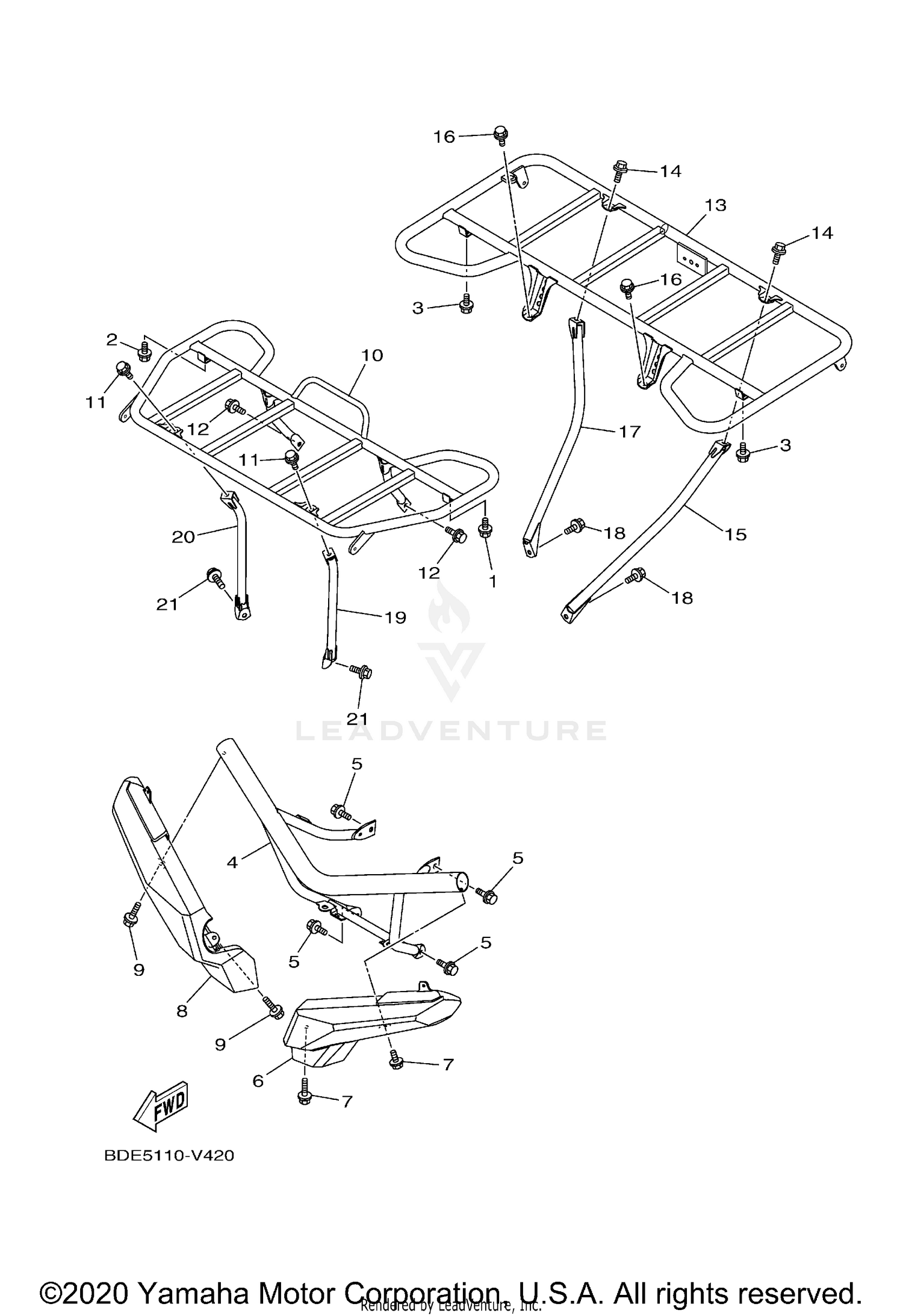

Guard Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT, WITH WASHER
90119-06152-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
BOLT, WITH WASHER
90119-06152-00
|
$3.55 | ||
|
Unavailable |
|||
|
#3
BOLT, WITH WASHER
90119-06152-00
|
$3.55 | ||
|
Unavailable |
|||
|
#4
BAR, CARRY FRONT
2UD-F845N-10-00
|
$295.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
95812-08014-00
Superseded by 95817-08014-00
|
$2.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
COVER 1
2UD-F842M-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, SPECIAL 1
90119-06868-00
Superseded by JW1-K6179-01-00
|
$1.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
COVER 2
2UD-F842N-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, SPECIAL 1
90119-06868-00
Superseded by JW1-K6179-01-00
|
$1.75 | ||
|
Unavailable |
|||
|
#10
CARRIER, FRONT
2UD-F4841-20-00
|
$163.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95812-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, WITH WASHER
90119-08118-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CARRIER, REAR
2UD-F4842-20-00
|
$222.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95812-08014-00
Superseded by 95817-08014-00
|
$2.50 | ||
|
Unavailable |
|||
|
#15
FRAME, CARRIER 1
2UD-F482J-10-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, WITH WASHER
90119-10044-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
FRAME, CARRIER 2
2UD-F482K-10-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, WITH WASHER
90119-10044-00
|
$8.49 | ||
|
Unavailable |
|||
|
#19
FRAME, CARRIER 1
2UD-F2815-10-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
FRAME, CARRIER 2
2UD-F2816-10-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
95812-08014-00
Superseded by 95817-08014-00
|
$2.50 | ||
|
Unavailable |
|||
