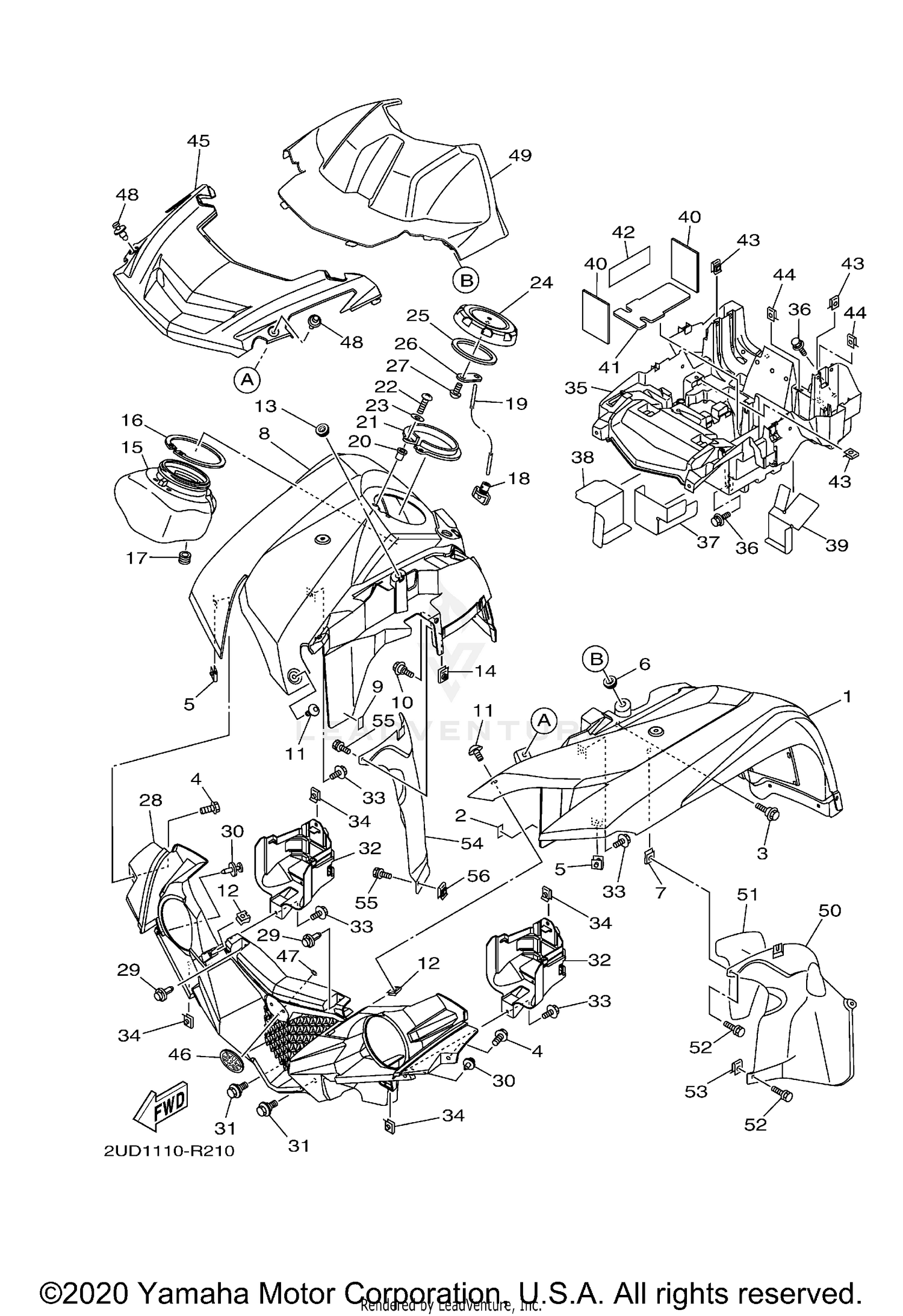

Front Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER ASSY
BDE-F1500-30-00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER 1
3B4-21541-00-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
90109-06043-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, WITH WASHER
90119-06159-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$7.49 | ||
|
Unavailable |
|||
|
#8
FENDER, FRONT 2
2UD-F1556-80-00
|
$113.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER 1
3B4-21541-00-00
|
$4.55 | ||
|
Unavailable |
|||
|
#10
BOLT
90109-06043-00
|
$3.00 | ||
|
Unavailable |
|||
|
#11
BOLT, HEX. SOCKET BUTTON
90111-06814-00
|
$2.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$7.49 | ||
|
Unavailable |
|||
|
#13
GROMMET
90480-13398-00
Superseded by 90480-13014-00
|
$9.49 | ||
|
Unavailable |
|||
|
#14
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$7.49 | ||
|
Unavailable |
|||
|
#15
BOX 1
1HP-F838K-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL, BOX 1
3B4-2838M-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GROMMET
90480-13004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLUG, DRAIN
3B4-215A1-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
STOPPER, OPEN
3B4-2845L-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
90179-05523-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
HOLDER
3B4-2839N-00-00
Superseded by 3B4-2839N-01-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN HEAD
98502-05016-00
Superseded by 98507-05016-00
|
$1.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
WASHER, PLATE
92902-05600-00
Superseded by 92990-05600-00
|
$0.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
CAP
1HP-F151B-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAL
3B4-28307-00-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
PLATE 2
3B4-28487-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, TAPPING
90164-05800-00
|
$2.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
GRILLE, FRONT
2UD-F8309-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
RIVET
90269-07010-00
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
RIVET
90269-06081-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BOLT
90109-06043-00
|
$3.00 | ||
|
Unavailable |
|||
|
#32
COVER, HEADLIGHT
2UD-F838E-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, WITH WASHER
90119-05193-00
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
NUT, SPRING
90183-051A0-00
|
$4.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
BOX, BATTERY 1
1HP-H212B-02-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, WITH WASHER
90119-06152-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#37
INSULATOR 1
1HP-H253E-00-00
Superseded by 1HP-H253E-01-00
|
$8.49 | ||
|
Unavailable |
|||
|
#38
INSULATOR 2
1HP-H253F-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
INSULATOR
1HP-H254E-00-00
Superseded by 1HP-H254E-01-00
|
$5.49 | ||
|
Unavailable |
|||
|
#40
INSU.
3B4-8233W-10-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
SEAT, BATTERY
3B4-82122-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
DAMPER
1HP-H2176-00-00
Superseded by 1HP-H2176-01-00
|
$2.40 | ||
|
Unavailable |
|||
|
#43
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$7.49 | ||
|
Unavailable |
|||
|
#44
NUT, SPRING
90183-05008-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
PANEL, FRONT
2UD-F3391-80-00
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
TUNING FORK MARK
2UD-F175B-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
NUT, SPRING
90183-06071-00
|
$0.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#48
RIVET
90269-07010-00
|
$4.70 | ||
|
Unavailable |
|||
|
#49
PANEL, ACCESSORY
B16-F839R-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
FENDER, INNER
1HP-F1552-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
SEAL 1
1HP-F1575-00-00
Superseded by 1HP-F1575-01-00
|
$4.40 | ||
|
Unavailable |
|||
|
#52
BOLT, WITH WASHER
90119-06152-00
|
$3.55 | ||
|
Unavailable |
|||
|
#53
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$7.49 | ||
|
Unavailable |
|||
|
#54
FENDER, INNER 2
1HP-F1553-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
BOLT, WITH WASHER
90119-06152-00
|
$3.55 | ||
|
Unavailable |
|||
|
#56
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$7.49 | ||
|
Unavailable |
|||
