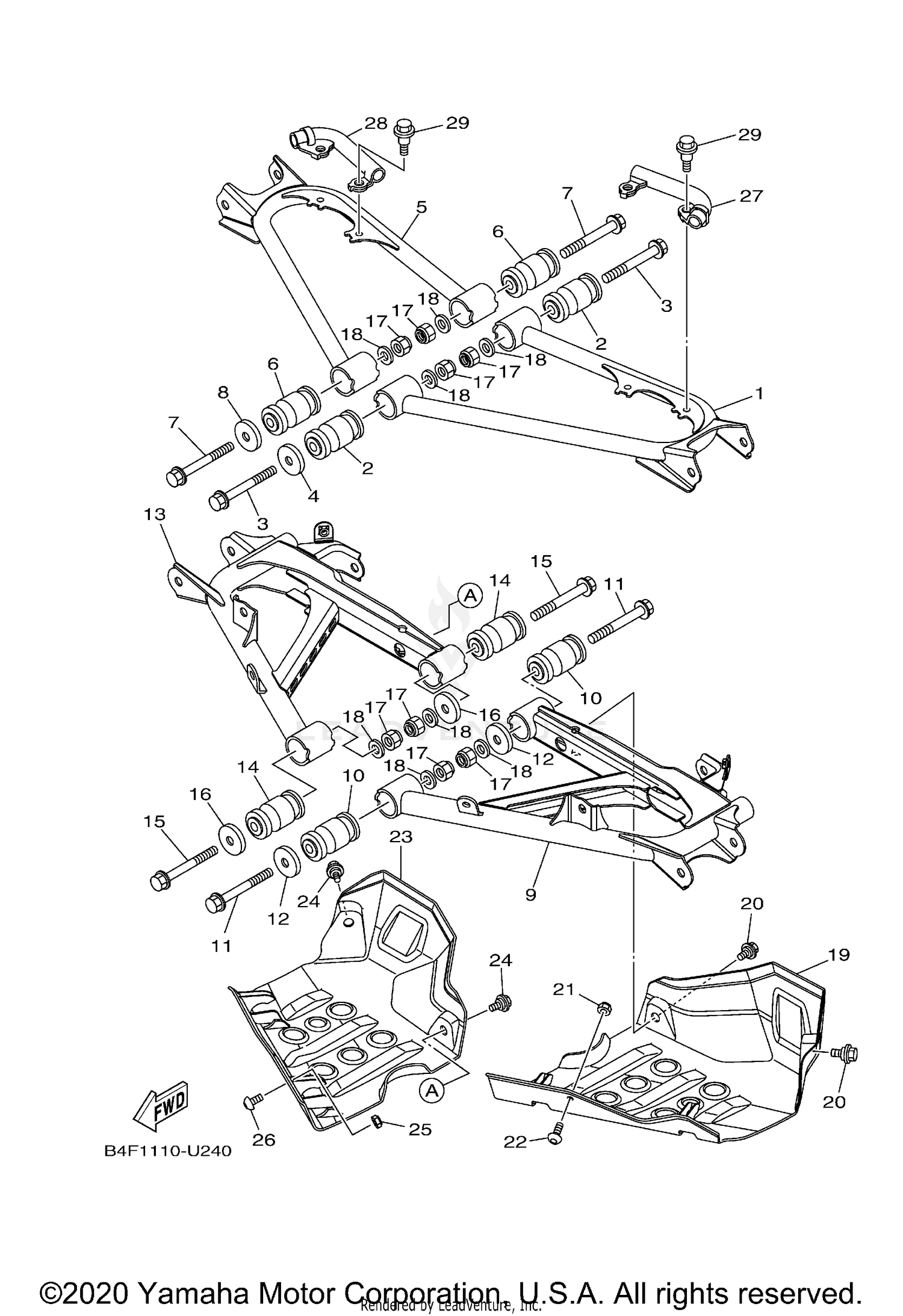

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ARM, REAR 1
2BG-F2171-00-00
Superseded by 2BG-F2171-01-00
|
$39.99 | ||
|
Unavailable |
|||
|
#2
BUSH
1HP-F3526-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-10484-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
5KM-22149-10-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
ARM, REAR 2
2BG-F2172-00-00
Superseded by 2BG-F2172-01-00
|
$44.99 | ||
|
Unavailable |
|||
|
#6
BUSH
1HP-F3526-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#7
BOLT, FLANGE
90105-10484-00
|
$6.49 | ||
|
Unavailable |
|||
|
#8
WASHER
5KM-22149-10-00
|
$8.49 | ||
|
Unavailable |
|||
|
#9
ARM 1
2BG-F217M-01-00
Superseded by 2BG-F217M-02-00
|
$58.99 | ||
|
Unavailable |
|||
|
#10
BUSH
1HP-F3526-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#11
BOLT, FLANGE
90105-10484-00
|
$6.49 | ||
|
Unavailable |
|||
|
#12
WASHER
5KM-22149-10-00
|
$8.49 | ||
|
Unavailable |
|||
|
#13
ARM 2
2BG-F217N-01-00
Superseded by 2BG-F217N-02-00
|
$58.99 | ||
|
Unavailable |
|||
|
#14
BUSH
1HP-F3526-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE
90105-10484-00
|
$6.49 | ||
|
Unavailable |
|||
|
#16
WASHER
5KM-22149-10-00
|
$8.49 | ||
|
Unavailable |
|||
|
#17
NUT, S/L FLANGE
95602-10200-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-10035-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, THRUST 1
2BG-F2128-01-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
90109-06264-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
NUT, NYLON
95702-06300-00
Superseded by 95707-06300-00
|
$3.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT, HEX. SOCKET BUTTON
90111-06814-00
|
$2.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
COVER, THRUST 2
2BG-F2129-01-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
90109-06264-00
|
$6.49 | ||
|
Unavailable |
|||
|
#25
NUT, NYLON
95702-06300-00
Superseded by 95707-06300-00
|
$3.75 | ||
|
Unavailable |
|||
|
#26
BOLT, HEX. SOCKET BUTTON
90111-06814-00
|
$2.00 | ||
|
Unavailable |
|||
|
#27
PROTECTOR 1
1HP-F315H-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PROTECTOR 2
1HP-F315J-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
90109-06840-00
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
