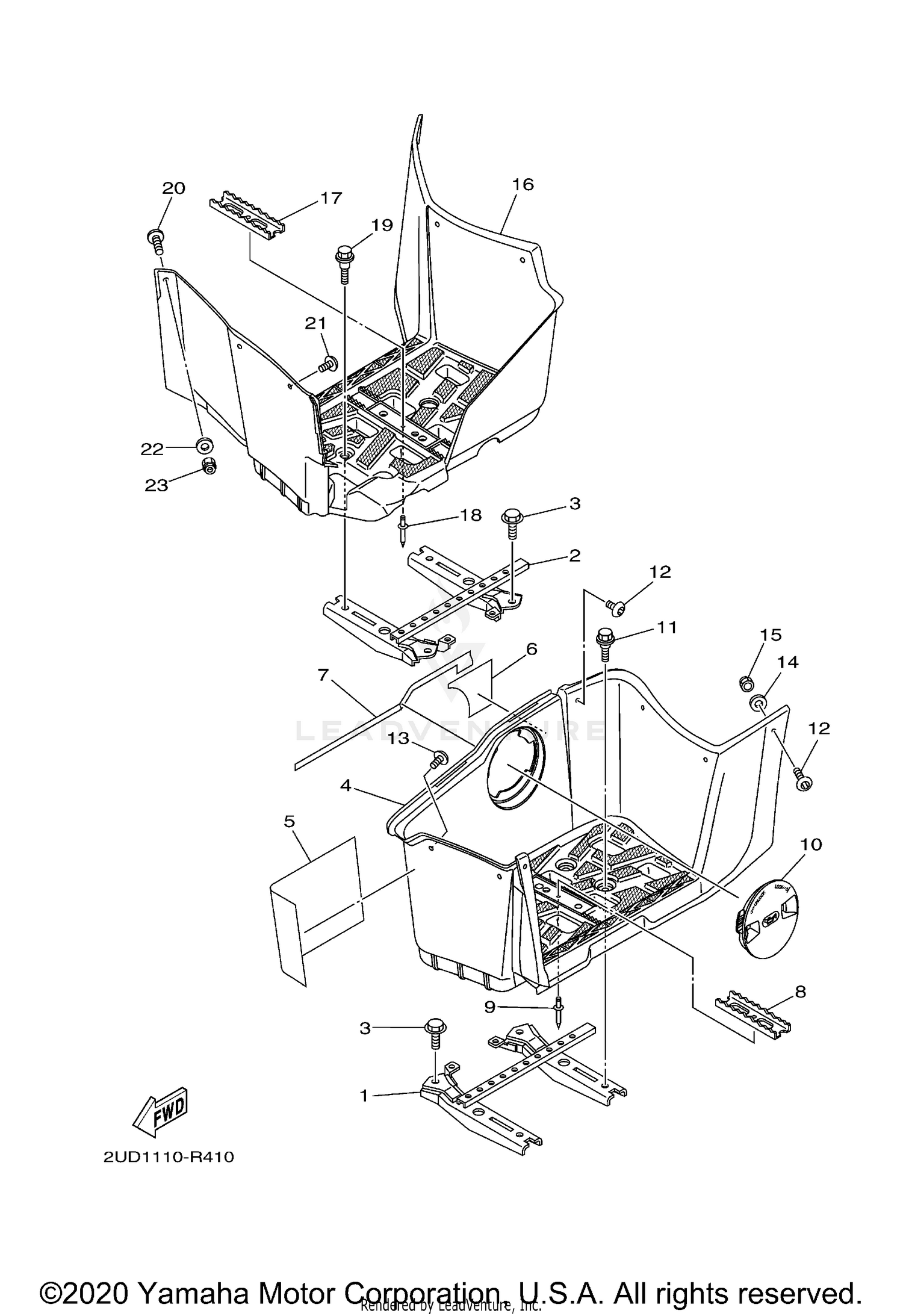

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, FOOTREST 1
1HP-F7452-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, FOOTREST 2
1HP-F7462-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
95812-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER 1
1HP-F7453-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAL 1
3B4-21732-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL 3
1HP-F2875-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL 2
2BG-F2874-00-00
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
ARM 1
5UH-F741A-10-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
RIVET, BLIND
90267-489U9-00
|
$4.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
COVER 3
1HP-F8239-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
90109-06043-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEX. SOCKET BUTTON
90111-06814-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEX. SOCKET BUTTON
90111-06137-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-06078-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
NUT, NYLON
95702-06300-00
Superseded by 95707-06300-00
|
$3.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
COVER 2
1HP-F7463-00-00
|
$70.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
ARM 1
5UH-F741A-10-00
|
$5.99 | ||
|
Unavailable |
|||
|
#18
RIVET, BLIND
90267-489U9-00
|
$4.30 | ||
|
Unavailable |
|||
|
#19
BOLT
90109-06043-00
|
$3.00 | ||
|
Unavailable |
|||
|
#20
BOLT, HEX. SOCKET BUTTON
90111-06814-00
|
$2.00 | ||
|
Unavailable |
|||
|
#21
BOLT, HEX. SOCKET BUTTON
90111-06137-00
|
$6.49 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
90201-06078-00
|
$6.49 | ||
|
Unavailable |
|||
|
#23
NUT, NYLON
95702-06300-00
Superseded by 95707-06300-00
|
$3.75 | ||
|
Unavailable |
|||
