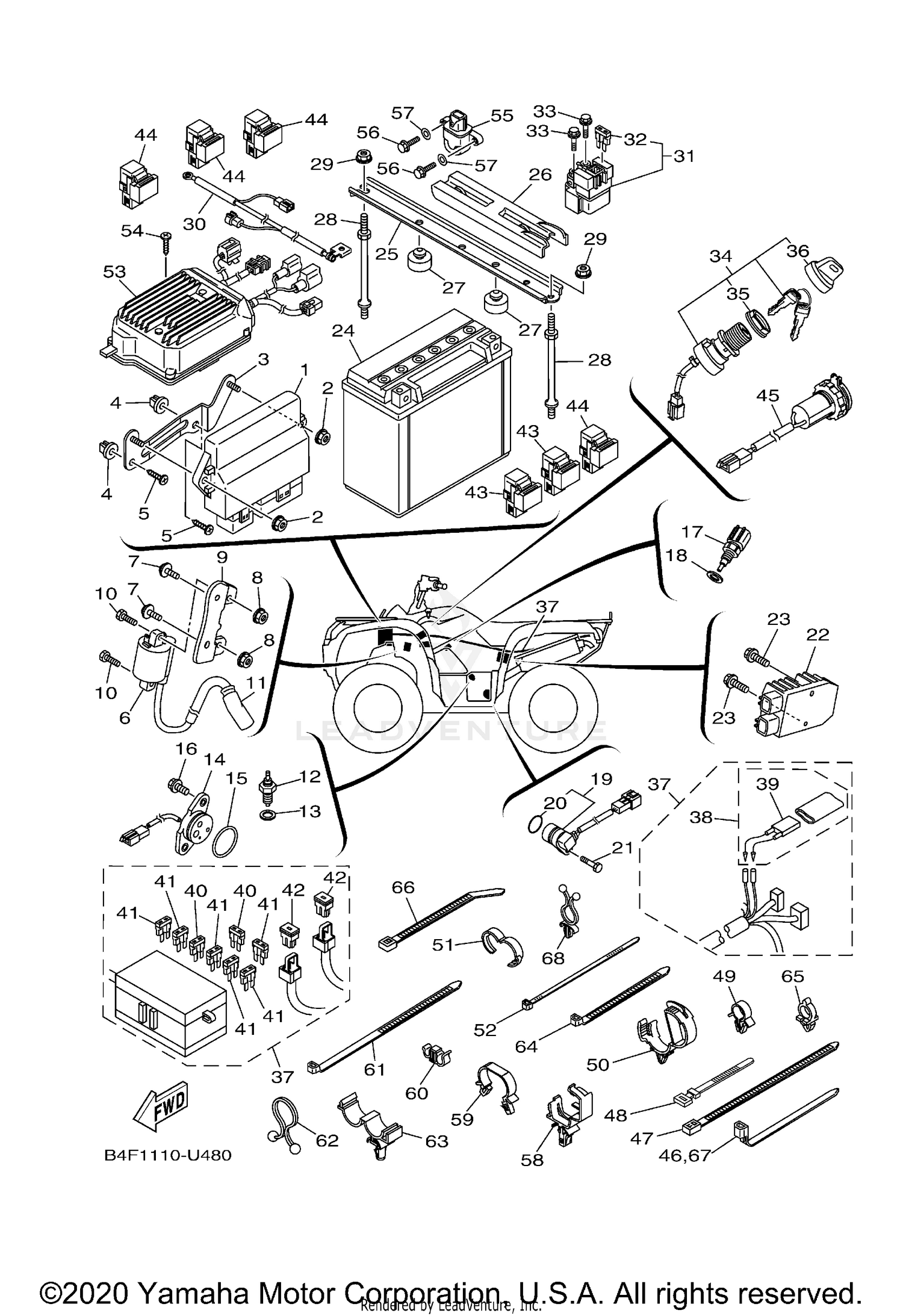

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ENGINE CONTROL UNI
B4F-8591A-20-00
Superseded by B4F-8591A-21-00
|
$973.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT, WITH WASHER
95702-06500-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
BRACKET, UNIT
B4F-H5991-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG
90338-08226-00
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
SCREW, TAPPING
97702-60520-00
Superseded by 97707-60520-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
IGNITION COIL ASSY
1D7-82310-03-00
Superseded by 1D7-H2310-05-00
|
$23.99 | ||
|
Unavailable |
|||
|
#7
BOLT
97012-06020-00
Superseded by 97017-06020-00
|
$4.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
NUT, U FLANGE
95602-06200-00
Superseded by 95604-06200-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BRACKET, IGNITION CO
B4F-82316-00-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, WITH WASHER
90119-06209-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG CAP ASSY
5VK-82370-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NEUTRAL SWITCH ASSY
3GB-82540-01-00
|
$63.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
GASKET
90430-10148-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
NEUTRAL SWITCH ASSY
3B4-82540-01-00
Superseded by 3B4-82540-03-00
|
$82.99 | ||
|
Unavailable |
|||
|
#15
O-RING
93210-29196-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, WITH WASHER
90119-06137-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
THERMOSENSOR ASSY
5YP-85790-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET
90430-12202-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SENSOR, SPEED
3B4-83755-01-00
|
$143.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
4D9-81168-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, HEXAGON SOCKET HEAD
90110-06175-00
Superseded by 91314-06020-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
RECTIFIER & REGULATOR ASSY
1D7-81960-10-00
Superseded by 1D7-81960-11-00
|
$267.99 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE DEEP RECESS
95D32-06020-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
YTX20LBS YUASA BATT
5FU-H2100-20-00
Superseded by YTX-20LBS-00-00
|
$165.99 | ||
|
Unavailable |
|||
|
#25
BRACKET, BATTERY
1HP-H2128-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER, BATTERY
3B4-82129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PAD, SEAT
B4F-F4741-00-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, FITTING
3B4-82133-20-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, WITH WASHER
95702-06500-00
|
$2.60 | ||
|
Unavailable |
|||
|
#30
WIRE, MINUS LEAD
34D-82116-01-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
STARTER RELAY ASSY (2768113-A)
3B4-81940-00-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
FUSE (15A-BLUE)
36Y-82151-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE
95022-06008-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
MAIN SWITCH ASSY
28P-82510-01-00
Superseded by 28P-82510-02-00
|
$75.99 | ||
|
Unavailable |
|||
|
#35
NUT, MAIN SWITCH
3HN-82569-00-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
CAP, KEY
3HN-82579-00-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
WIRE HARNESS ASSY
B4F-82590-12-00
Superseded by B4F-82590-13-00
|
$737.99 | ||
|
Unavailable |
|||
|
#38
CIRCUIT BREAKER ASSY
4GB-82180-00-00
Superseded by 5GT-82180-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
THERMO SWITCH ASSY
4GB-82560-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
FUSE (20A-BL)
5JJ-82151-20-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
FUSE (10A)
5JJ-82151-30-00
Superseded by 67F-82151-40-00
|
$7.10 | ||
|
Available to order. Add to View Price |
|||
|
#42
SLOW BLOW FUSE
5PS-82151-00-00
Superseded by JR9-82151-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
RELAY ASSY (G8HN-1C4T-DJ-Y52)
5DM-81950-01-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
RELAY ASSY (8DM-11)
8DM-81950-11-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
TERMINAL COMP.
1HP-H254B-10-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
CLAMP
90464-15195-00
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#47
CLAMP
90464-40825-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#48
BAND, SWITCH CORD
437-83936-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
CLAMP
90464-15157-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
CLAMP
90464-20181-00
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#51
CLAMP
90464-16001-00
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#52
CLAMP 1
5Y9-12491-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
POWER STRG. CONT. UNIT ASSY
2BG-859A0-00-00
Superseded by 2BG-859A0-01-00
|
$1,032.99 | ||
|
Unavailable |
|||
|
#54
SCREW, BIND
98902-06020-00
Superseded by 98980-06020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
SENSOR, LEAN ANGLE
3B4-82576-10-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
BOLT
97002-05016-00
Superseded by 97095-05016-00
|
$1.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#57
WASHER, PLATE
92902-05600-00
Superseded by 92990-05600-00
|
$0.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#58
CLAMP
90464-20237-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#59
CLAMP
90464-24230-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
CLAMP
90464-09013-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#61
BAND, SWITCH CORD
90464-12045-00
Superseded by 25G-83936-01-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#62
CLAMP
90464-14800-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#63
CLAMP
90464-16012-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#64
CLAMP
90465-13M11-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#65
CLAMP
90464-10833-00
Superseded by 90464-12830-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#66
CLAMP
90465-10098-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#67
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.41 | ||
|
Unavailable |
|||
|
#68
CLAMP
90464-12M35-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
