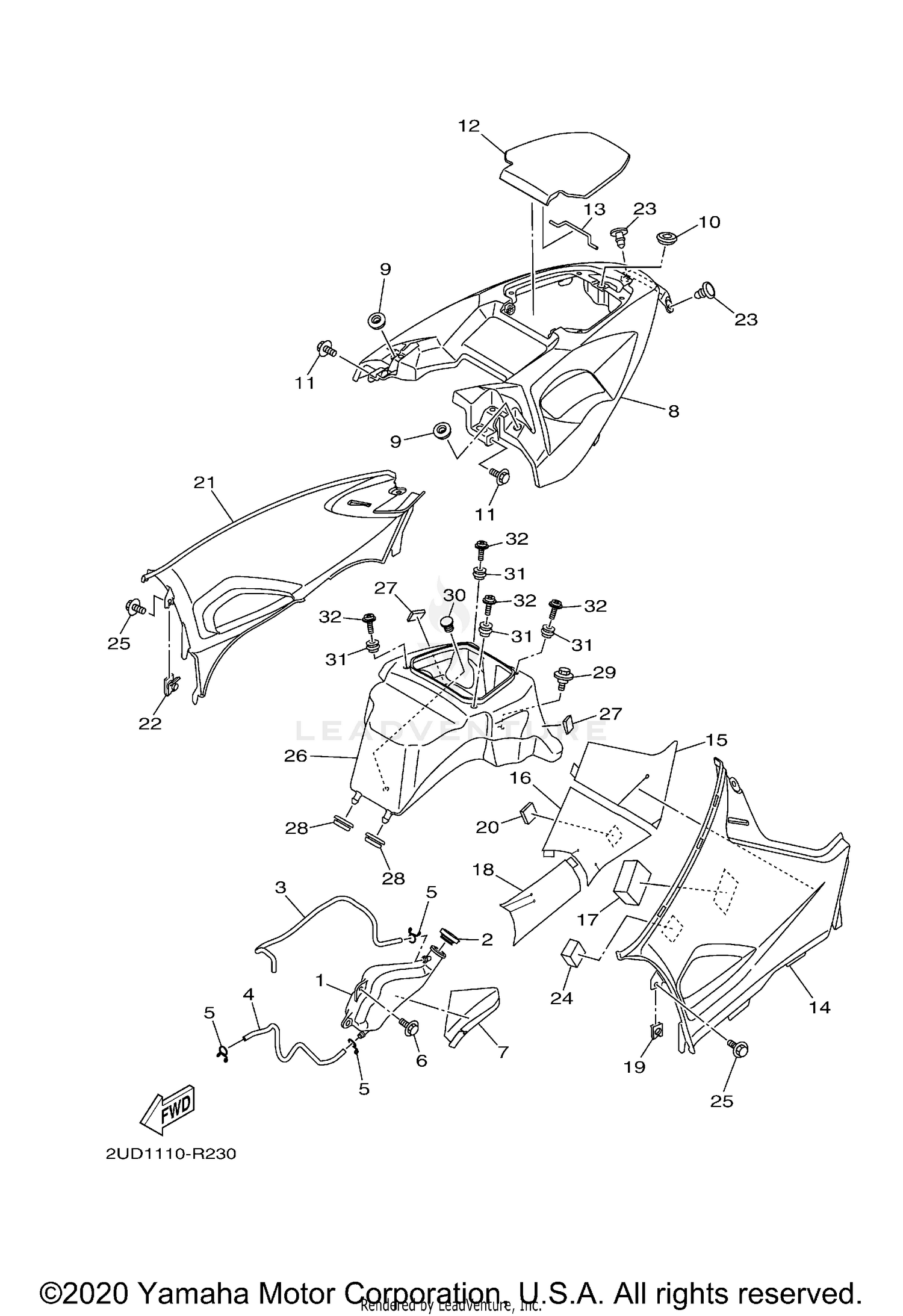

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK, RECOVERY
1HP-F1871-01-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP
1S3-21875-00-00
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
HOSE (L540)
90445-08841-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE (L420)
90445-08840-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP, SCISSOR
90467-08003-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BOLT, WITH WASHER
90119-06152-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE
1HP-F176E-00-00
Superseded by 1HP-F176E-01-00
|
$4.75 | ||
|
Unavailable |
|||
|
#8
COVER, TOP
B16-F171A-60-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET
90480-13567-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET
90480-01558-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT, WITH WASHER
90119-06152-00
|
$3.55 | ||
|
Unavailable |
|||
|
#12
LID, COVER
B16-F177B-60-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, HINGE
3B4-2177K-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, SIDE 1
B16-F1711-60-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
INSULATOR, SIDE COVER
B16-F174A-01-00
Superseded by B16-F174A-02-00
|
$8.49 | ||
|
Unavailable |
|||
|
#16
SEAL 4
B16-F173N-01-00
Superseded by B16-F173N-02-00
|
$15.49 | ||
|
Unavailable |
|||
|
#17
DAMPER
3B4-2174Y-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL 3
B16-F173M-01-00
Superseded by B16-F173M-02-00
|
$8.49 | ||
|
Unavailable |
|||
|
#19
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
DAMPER, LOCATING 4
3B4-2177N-00-00
Superseded by 3B4-2177N-01-00
|
$30.99 | ||
|
Unavailable |
|||
|
#21
COVER, SIDE 2
B16-F1721-60-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$7.49 | ||
|
Unavailable |
|||
|
#23
RIVET
90269-07010-00
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
DAMPER, PLATE
90520-50800-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, WITH WASHER
90119-06152-00
|
$3.55 | ||
|
Unavailable |
|||
|
#26
BOX
B16-F177A-01-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
DAMPER, PLATE
90520-10027-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
GROMMET
90480-01558-00
|
$4.65 | ||
|
Unavailable |
|||
|
#29
BOLT
90109-06202-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLUG, BLIND
90605-502U1-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT
90179-05523-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
SCREW, WITH WASHER
90159-05053-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
