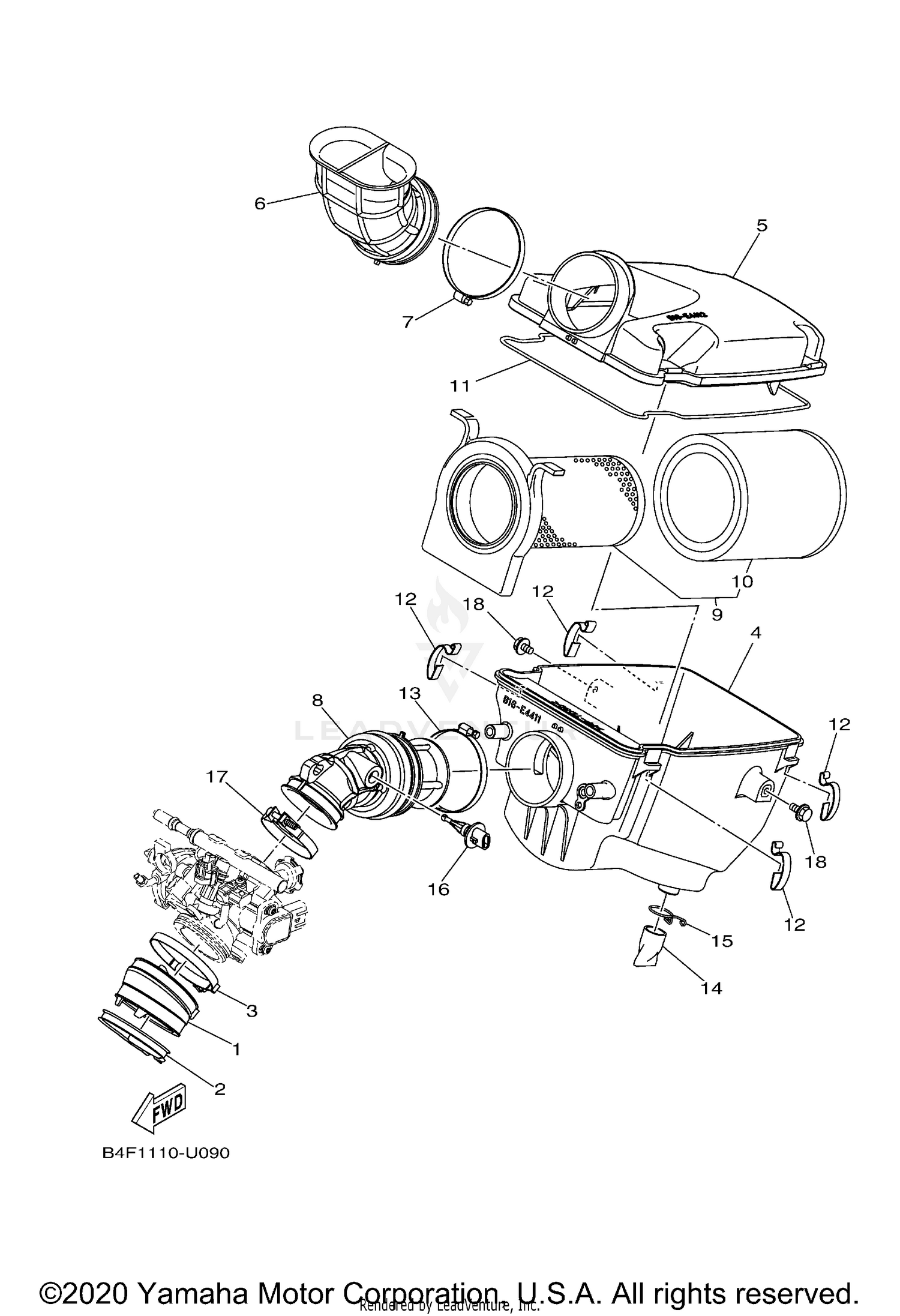

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, CARBURETOR 1
5B4-13586-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE CLAMP ASSY
90450-72004-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE CLAMP ASSY
90450-72004-00
|
$20.99 | ||
|
Unavailable |
|||
|
#4
CASE, AIR CLEANER
B16-E4411-10-00
Superseded by B16-E4411-11-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP,CLEANER CASE 1
B16-E4412-01-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
DUCT
B16-E4437-10-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND
B16-E4455-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
JOINT,AIR CLNR 1
B4F-E4453-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
ELEMENT ASSY, AIR CLEANER
B16-E4450-01-00
Superseded by BVG-E4450-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#10
. .ELEMENT, AIR CLEANER
B16-E4451-01-00
Superseded by BVG-E4451-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#11
SEAL
B16-E4457-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP, CAP FITTING
B16-E4424-00-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAND
B16-E4456-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIPE, DRAIN
B16-E443E-00-00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP
90467-220A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SENSOR, AIR TEMPRATURE
5VU-85886-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE CLAMP ASSY
90450-62006-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
95812-06010-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
