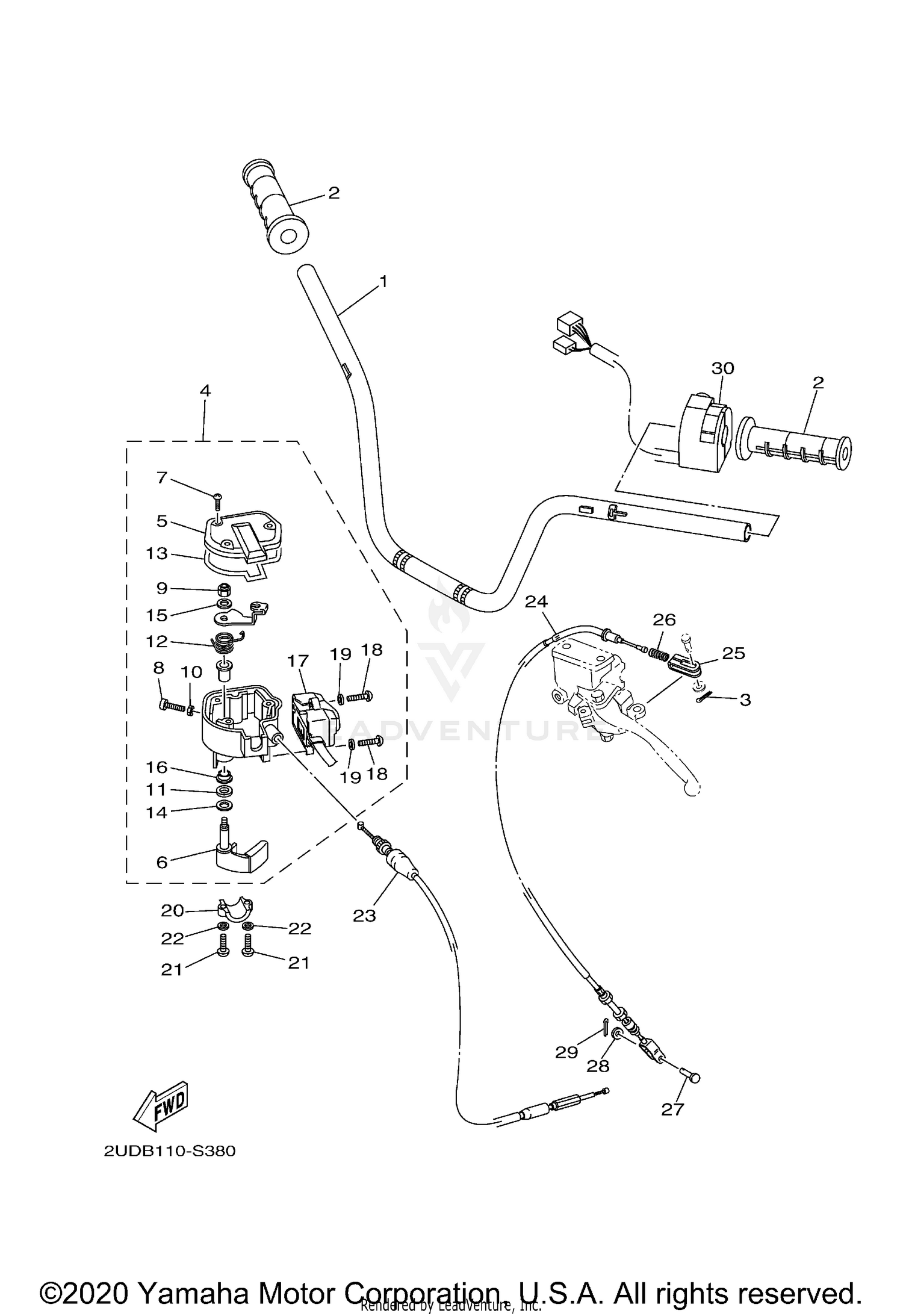

Steering Handle Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
1HP-F6111-01-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRIP
5FU-F6241-10-00
|
$18.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
PIN, COTTER
91401-16012-00
Superseded by 91490-16020-00
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#4
THROTTLE LEVER ASSY
1HP-26250-01-00
Superseded by 1HP-26250-04-00
|
$150.99 | ||
|
Unavailable |
|||
|
#5
CAP, GEAR
28P-2628F-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
LEVER, THROTTLE
28P-2625G-00-00
Superseded by 28P-2625G-01-00
|
$60.99 | ||
|
Unavailable |
|||
|
#7
SCREW
90149-04278-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98507-05020-00
Superseded by 98517-05020-00
|
$1.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
NUT, U
95602-05100-00
Superseded by 95617-05100-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
95307-05700-00
Superseded by 95317-05700-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL
93104-09025-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SPRING
1NV-26304-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
28P-2628G-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
1NV-26129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPECIAL
1NV-26398-00-00
Superseded by 53L-83909-00-00
|
$4.55 | ||
|
Unavailable |
|||
|
#16
COLLAR
1NV-2625K-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWITCH, HANDLE 1
1HP-83976-08-00
Superseded by 1HP-83976-06-00
|
$110.99 | ||
|
Unavailable |
|||
|
#18
SCREW, PAN HEAD
98502-04016-00
Superseded by 98580-04014-00
|
$3.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
WASHER, PLATE
92902-04600-00
Superseded by 92990-04600-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOLDER, LEVER LOWER 1
1S3-82913-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, PAN HEAD
98502-05020-00
Superseded by 98517-05020-00
|
$1.75 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
92902-05600-00
Superseded by 92990-05600-00
|
$0.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
CABLE, THROTTLE 1
B4F-26311-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WIRE, BRAKE 1
3B4-26341-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
JOINT, CABLE
3B4-26347-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING, COMPRESSION
90501-08665-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, CLEVIS
90240-06076-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER
92907-06200-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIN. COTTER
91401-20012-00
Superseded by 91490-20015-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
SWITCH, HANDLE 4
28P-83972-00-00
Superseded by 28P-83972-01-00
|
$134.99 | ||
|
Unavailable |
|||
