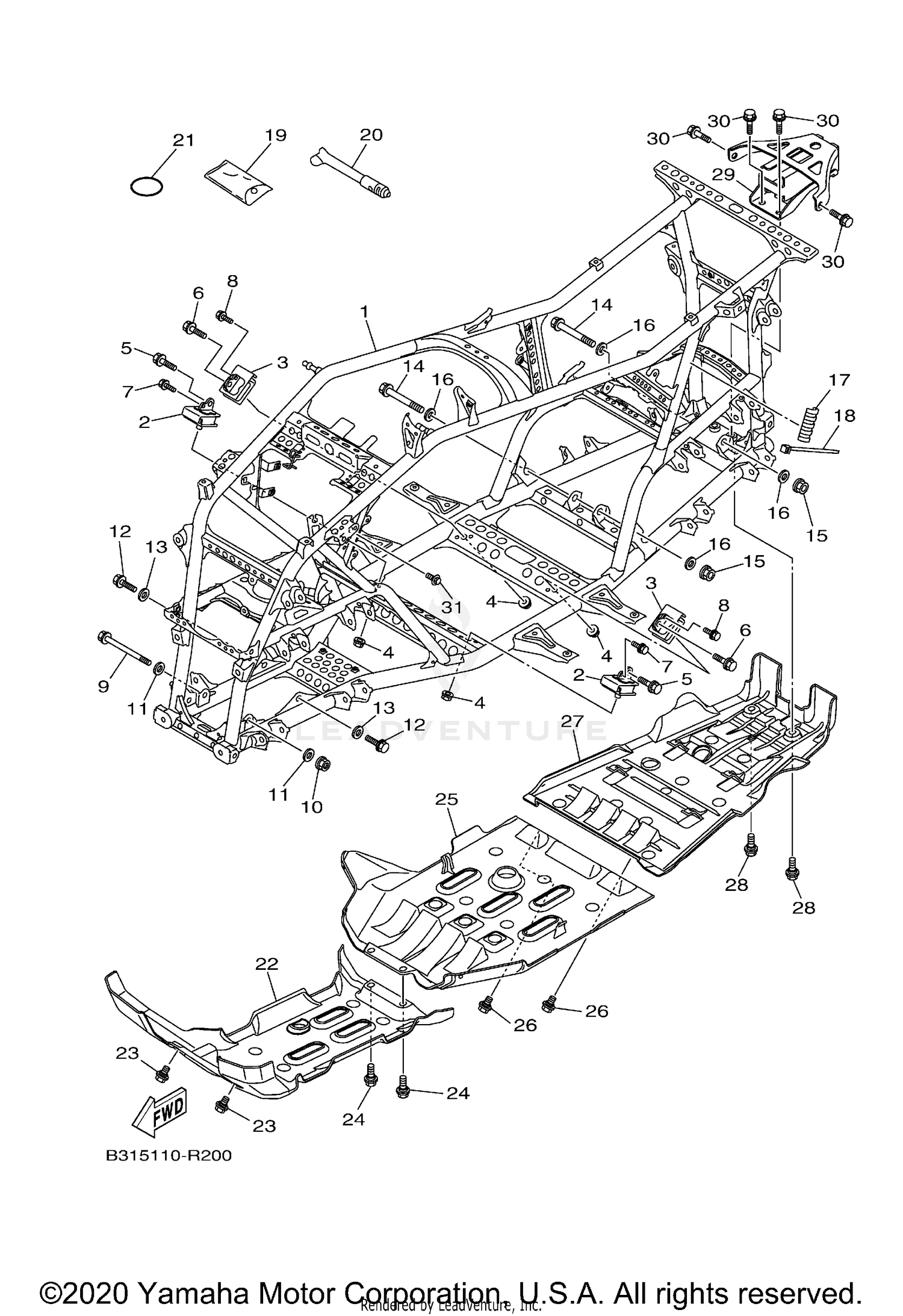

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
2UD-F1110-10-00
Superseded by 2UD-F1110-11-00
|
$1,121.99 | ||
|
Unavailable |
|||
|
#2
DAMPER, RUBBER 1
B16-21485-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER, RUBBER 1
B16-21485-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#4
NUT, SELF-LOCKING
90185-10011-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
95812-10035-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95812-10035-00
|
$6.49 | ||
|
Unavailable |
|||
|
#7
BOLT, FLANGE
90105-06639-00
Superseded by 95024-06016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
90105-06639-00
Superseded by 95024-06016-00
|
$9.49 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE
90105-10219-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, SELF-LOCKING
90185-10011-00
|
$4.95 | ||
|
Unavailable |
|||
|
#11
WASHER, PLATE
90201-10035-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
90105-10237-00
Superseded by 95817-10030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-10035-00
|
$4.50 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE
90105-10238-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, SELF-LOCKING
90185-10011-00
|
$4.95 | ||
|
Unavailable |
|||
|
#16
WASHER, PLATE
90201-10035-00
|
$4.50 | ||
|
Unavailable |
|||
|
#17
DAMPER
3B4-2113B-01-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP
90464-40825-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
TOOL KIT
2BG-F8100-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GAUGE, AIR
1NV-2811A-01-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
93210-64297-00
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
GUARD, ENGINE 1
B16-F147A-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
90109-06202-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
90109-06214-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
GUARD, ENGINE 2
1HP-F147E-01-00
Superseded by 1HP-F147E-02-00
|
$35.99 | ||
|
Unavailable |
|||
|
#26
BOLT
90109-06214-00
|
$8.49 | ||
|
Unavailable |
|||
|
#27
GUARD, ENGINE 3
B16-F147F-00-00
Superseded by B16-F147F-01-00
|
$36.99 | ||
|
Unavailable |
|||
|
#28
BOLT
90109-06202-00
|
$3.10 | ||
|
Unavailable |
|||
|
#29
REAR HITCH ASSY
2SM-F3802-00-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE
95812-10016-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE DEEP RECESS
95D32-06012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
