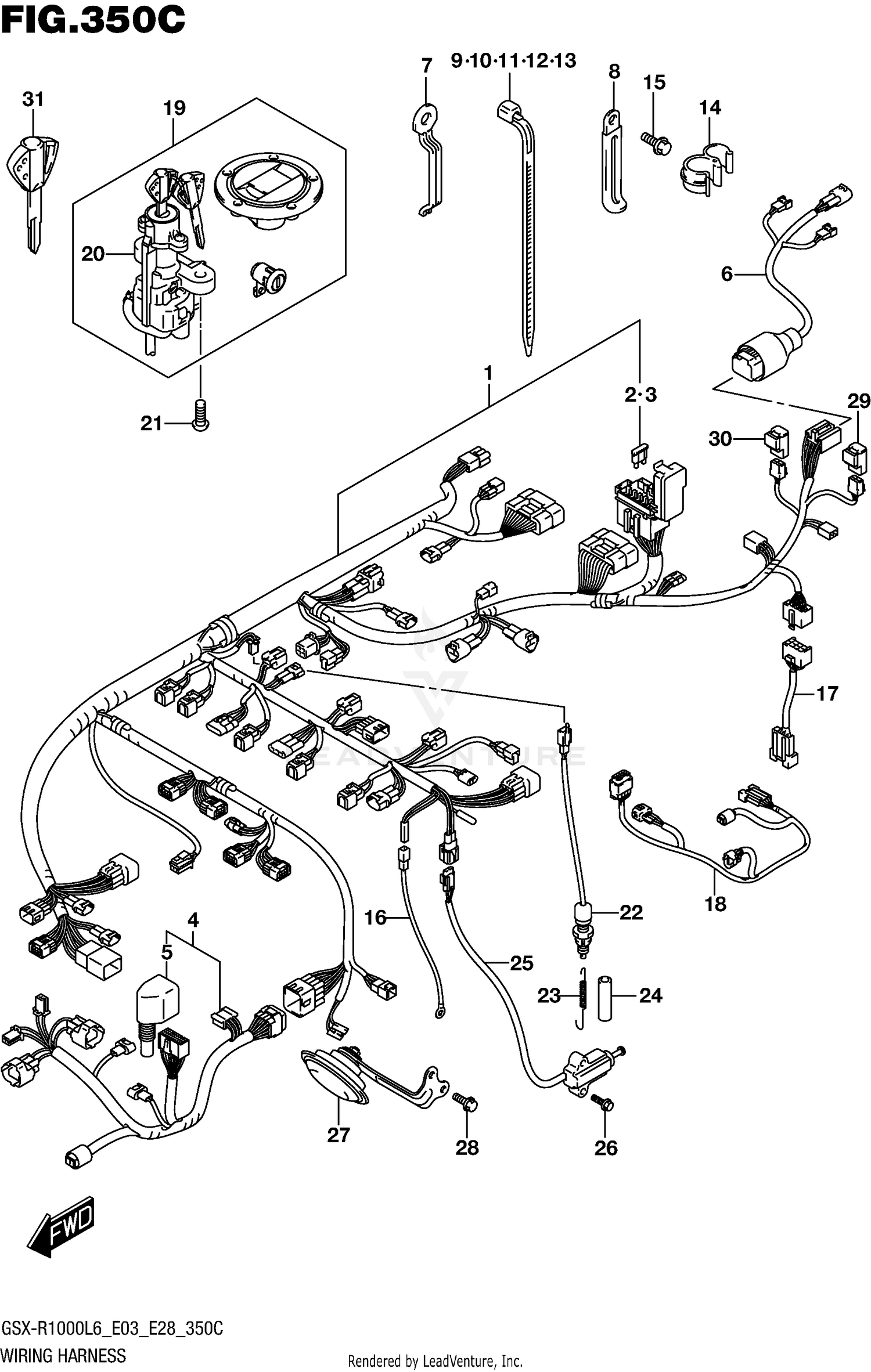

Wiring Harness (gsx-r1000l6 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, WIRING NO.1
36610-47HC0
|
$1,498.39 | ||
|
Available to order. Add to View Price |
|||
|
#2
.FUSE (10A)
09481-10501
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
.FUSE (15A)
09481-15501
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
HARNESS,WIRING
36620-47H10
Superseded by 36620-47H21
|
$260.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
.COVER, CONNECTOR
36618-47H00
|
$25.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
WIRE,RR COMB
36855-47H00
Superseded by 36855-47H01
|
$48.02 | ||
|
Unavailable |
|||
|
#7
CLAMP
09403-06322
Superseded by 09403-06328
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#9
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CLAMP (L:95)
09407-11401
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP (L:190)
09407-19401
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP (L:190)
09407-19401
|
$3.33 | ||
|
Unavailable |
|||
|
#14
CLAMP
09408-00242
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
01547-0612A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#16
WIRE, OIL PRESSURE SWITCH
36851-47H01
|
$14.40 | ||
|
Available to order. Add to View Price |
|||
|
#17
WIRE, RELAY LEAD
36857-47H00
|
$87.68 | ||
|
Available to order. Add to View Price |
|||
|
#18
WIRE, ISC LEAD
36859-47H10
|
$140.63 | ||
|
Available to order. Add to View Price |
|||
|
#19
LOCK SET
37101-40841
Superseded by 37101-40844
|
$324.96 | ||
|
Unavailable |
|||
|
#20
.LOCK ASSY,STEERING
37100-41G11
Superseded by 37100-41G12
|
$292.99 | ||
|
Unavailable |
|||
|
#21
BOLT (8X20)
09139-08016
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#22
SWITCH ASSY,STOP LAMP
37740-31D00
|
$37.48 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING
09443-06087
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE,5X10X600
09352-50823-600
Superseded by 44421-13ER0
|
$12.80 | ||
|
Available to order. Add to View Price |
|||
|
#25
SWITCH ASSY,SID
37840-47H00
Superseded by 37840-47H01
|
$106.13 | ||
|
Unavailable |
|||
|
#26
BOLT (6X20)
09103-06286
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#27
HORN ASSY
38500-47H00
|
$80.72 | ||
|
Available to order. Add to View Price |
|||
|
#28
.BOLT
01550-0616B
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#29
RELAY ASSY, FUEL PUMP
38740-24X50
|
$58.35 | ||
|
Available to order. Add to View Price |
|||
|
#30
RELAY ASSY, FAN MOTOR
38740-24X50
|
$58.35 | ||
|
Unavailable |
|||
|
#31
KEY,BLANK (IMMOBI)
37146-41G00
|
$55.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
