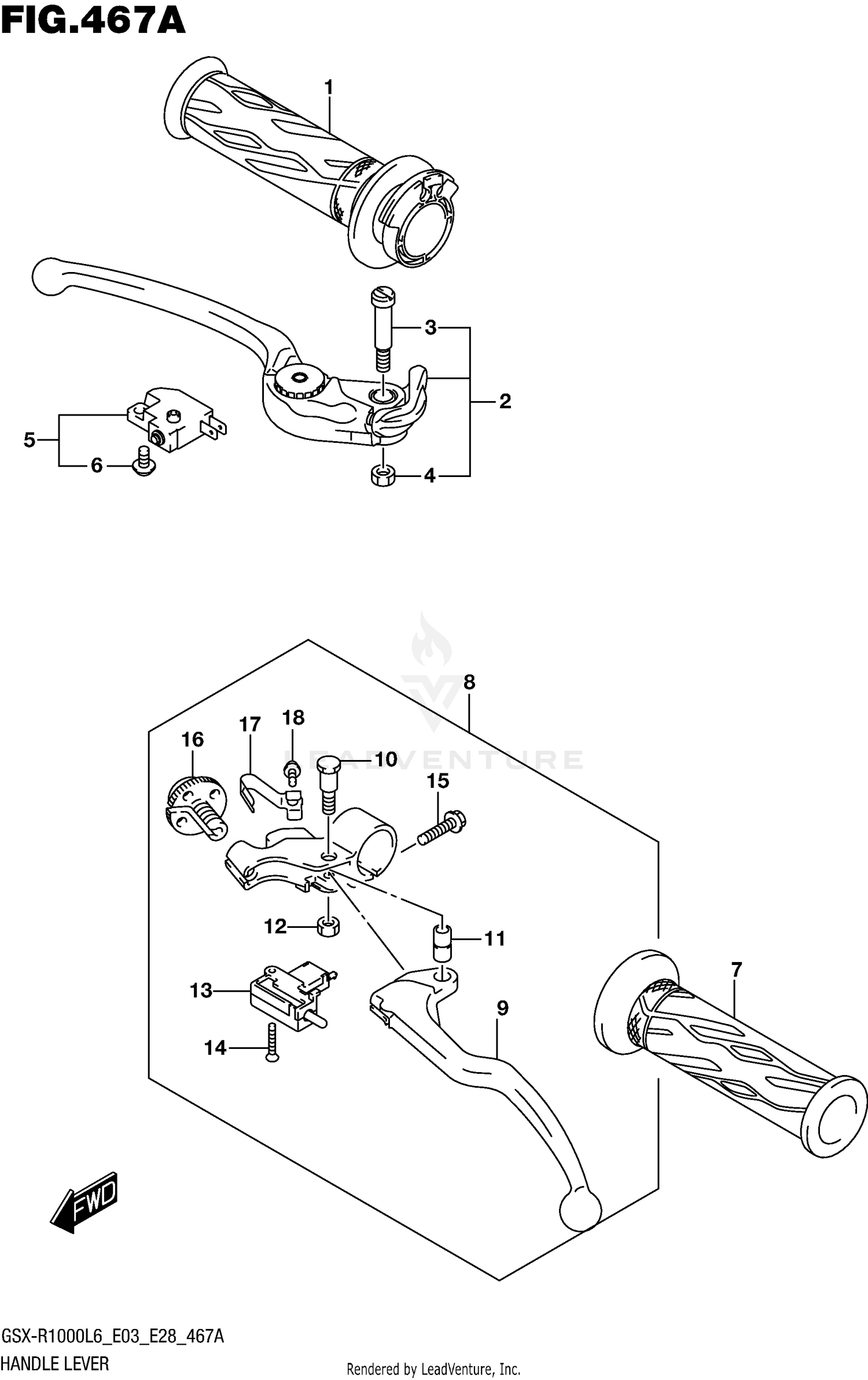

Handle Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GRIP,THROTTLE
57110-21H02
|
$26.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
LEVER ASSY,BRAKE
57300-29G40
|
$115.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BOLT, PIVOT
57431-29G00
|
$12.02 | ||
|
Available to order. Add to View Price |
|||
|
#4
.NUT
08319-2106A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWITCH ASSY,FR BRAKE
57460-14J01
Superseded by 57460-14J02
|
$49.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
.SCREW,WITH WASHER (4X12)
57465-17C00
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GRIP LH
57211-21H01
|
$14.37 | ||
|
Available to order. Add to View Price |
|||
|
#8
LEVER ASSY,CLUTCH
57500-41G41
Superseded by 57500-41G42
|
$89.28 | ||
|
Available to order. Add to View Price |
|||
|
#9
.LEVER, CLUTCH
57621-41G10
|
$43.50 | ||
|
Available to order. Add to View Price |
|||
|
#10
.BOLT
57431-41G00
|
$15.46 | ||
|
Available to order. Add to View Price |
|||
|
#11
.COLLAR
57532-41G00
|
$25.48 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
08319-3106A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#13
.SWITCH ASSY, CLUTCH
57560-41G20
|
$29.51 | ||
|
Available to order. Add to View Price |
|||
|
#14
.SCREW
57562-41G21
|
$10.76 | ||
|
Available to order. Add to View Price |
|||
|
#15
.BOLT
01547-0620B
|
$3.03 | ||
|
Available to order. Add to View Price |
|||
|
#16
.NUT, CABLE ADJUSTER
57641-33E21
|
$46.39 | ||
|
Available to order. Add to View Price |
|||
|
#17
.SPRING
57644-33E00
|
$12.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
.SCREW, SPRING
57642-33E00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
